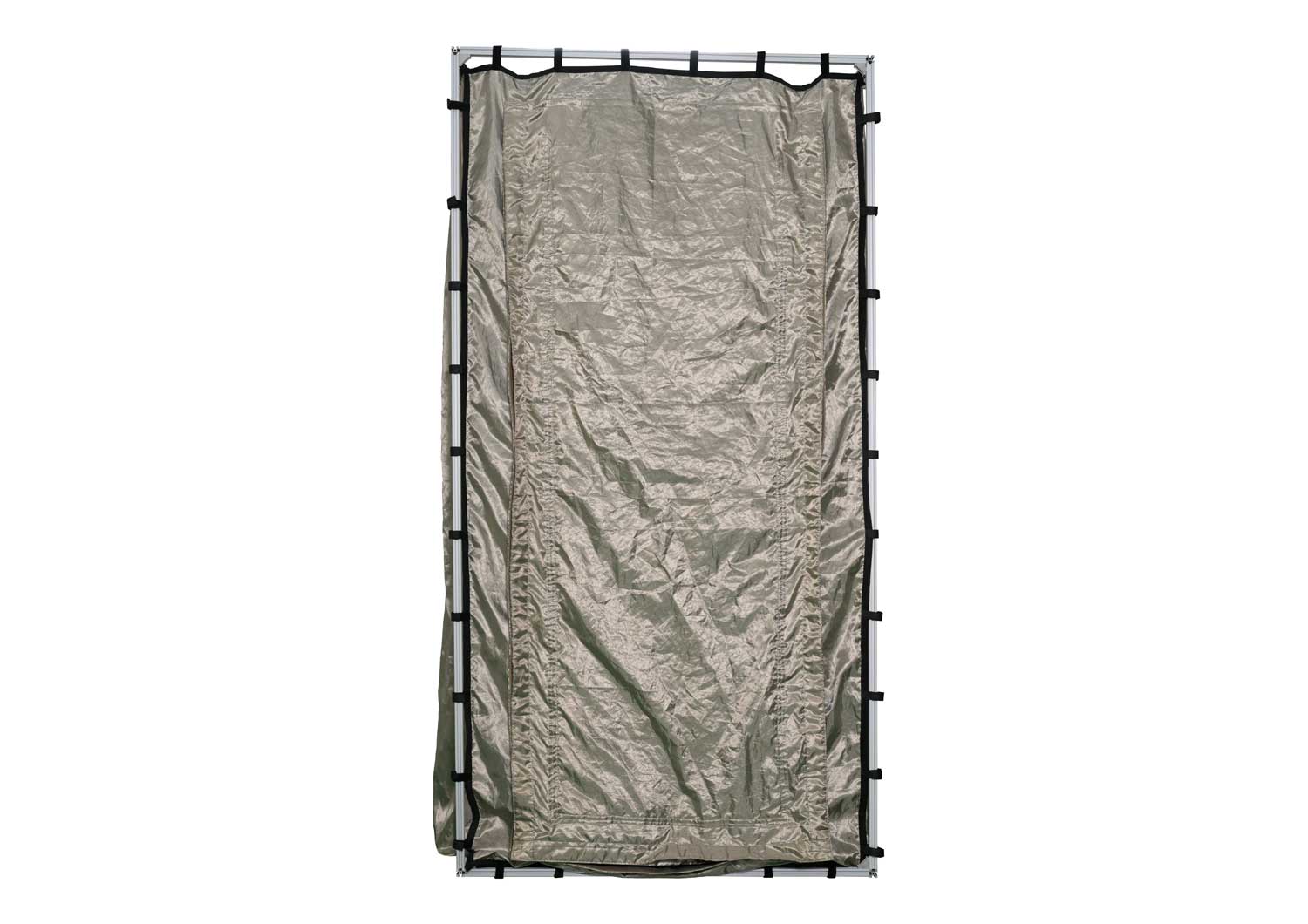

TekBox TBST-100/100/200 EMI Shielded Tent

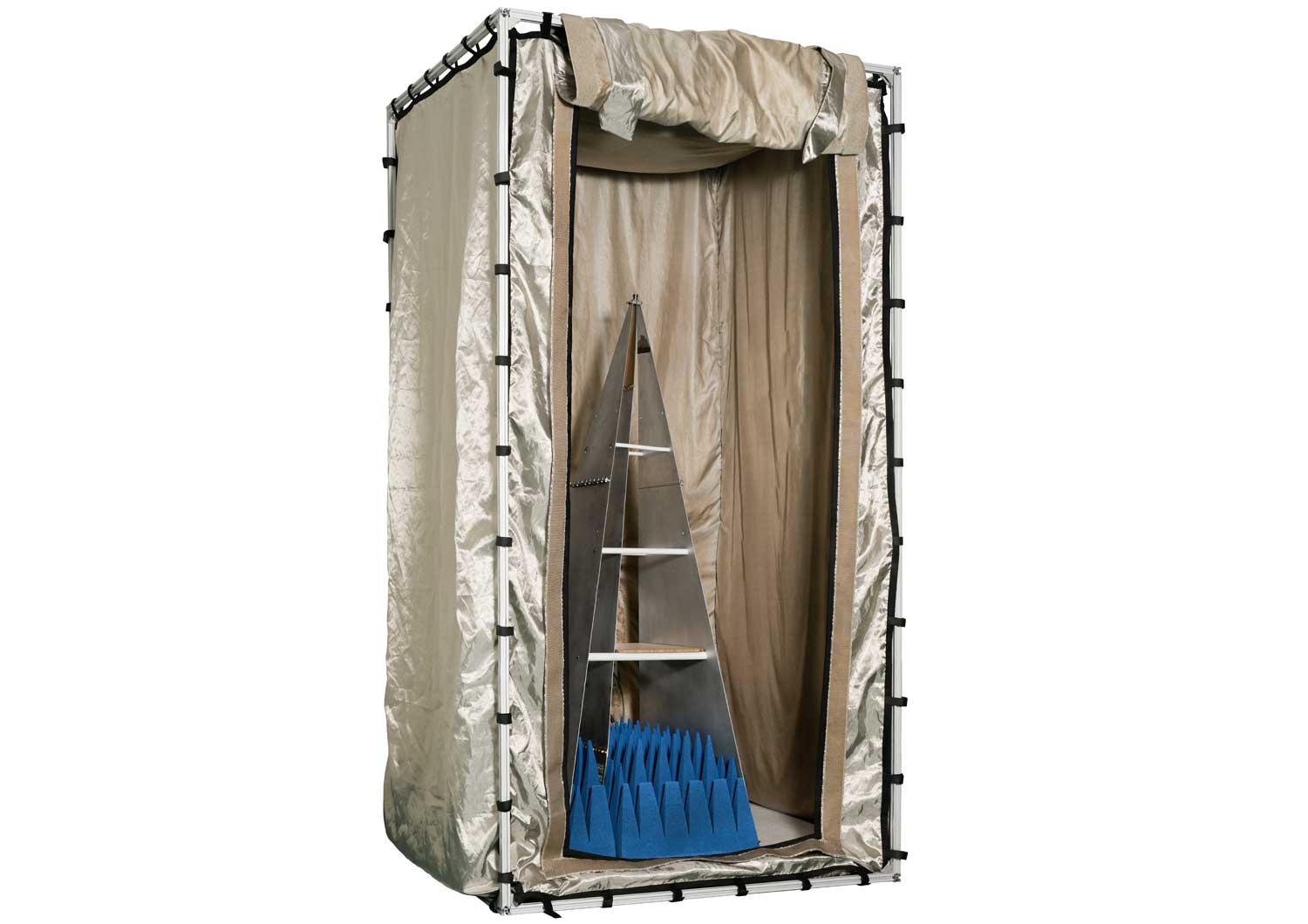

The TBST line of shielded tents is designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements with sizes of 200 cm x 100 cm x 100 cm, 124 cm x 64 cm x 60 cm or 86 cm x 48 cm x 48 cm. The 200 cm and 124 cm tent can accommodate any Tekbox pre-compliance test equipment such as LISNs or TEM-cells. The 86 cm tent will fit the TBTC0/1/2 and all our LISN.

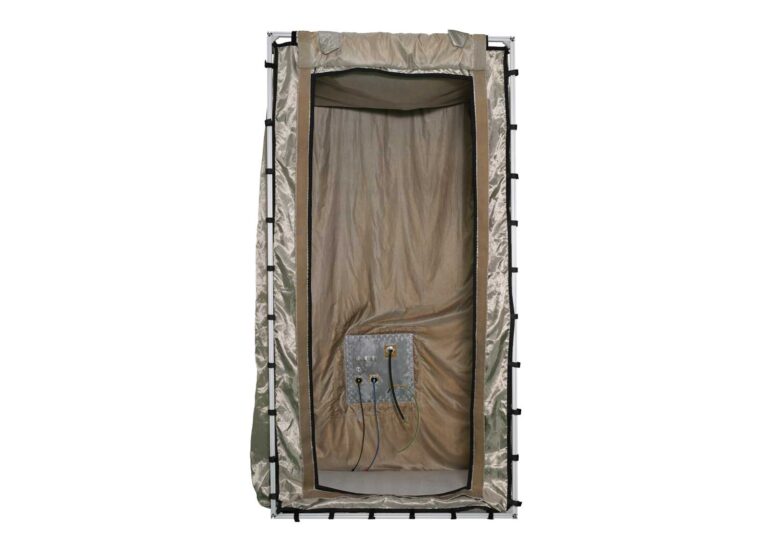

The shielded tents are composed of two layers of conductive fabrics. It is supported by rigid aluminium profiles. The filter panel at the side provides a 240V/10A mains AC filter (optional for the smaller tent), two general purpose 240V/10A AC/DC filters and four coaxial feed through adapters with screw caps. The access opening is sealed with conductive Velcro tape.

Documentation

TBST 100/100/200 User Manual

TBST-100/100/200:

Outer dimensions: 204 cm x 104 cm x 100 cm (104 cm x 101 cm x 204 cm)
Opening dimensions: 130 cm x 46 cm
Frame: 20 mm x 20mm extruded aluminium profiles
Shielding: 2 layers of conductive fabrics
Suspension: Velcro straps
Filter panel: 1 x 240V/10A AC filter; C19 socket
2 x 240V / 10 A AC/DC filters, attached cables with Banana couplers
3 x N-Female coaxial feed-through connectors with screw caps
1 x BNC-Female coaxial feed-through connector with screw caps
Internal AC Socket: pigtail cable with detachable female Schuko + country-specific AC cables with C13 connector
Attenuation: ~50 dB in the range 10 MHz to 6 GHz, see chapter 3
Weight: 17kg + 3kg (packaging)
