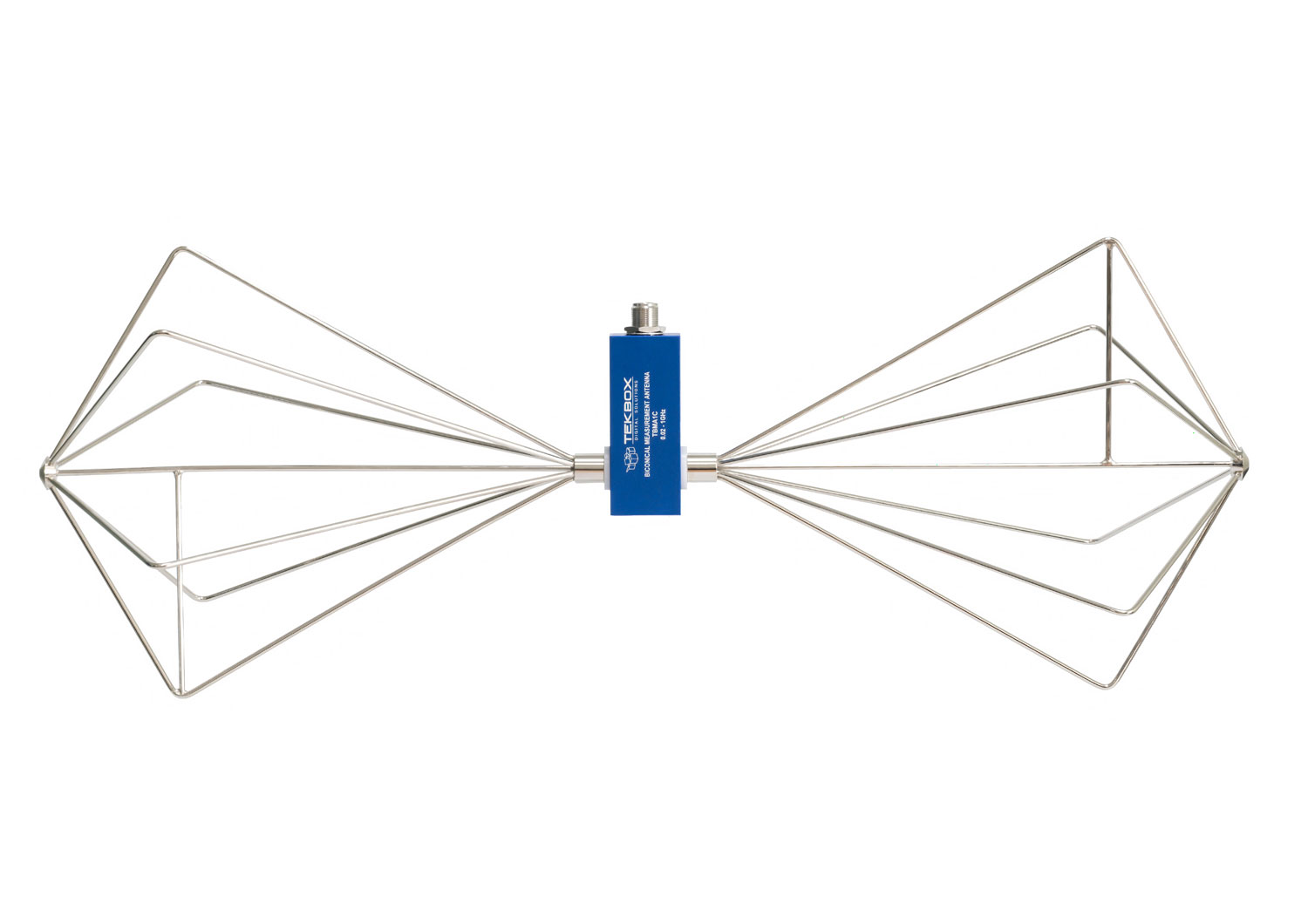

Tekbox TBMA1C Biconical Antenna
The TBMA1C is a small, lightweight, wideband biconical measurement antenna. With its moderate price, it is targeting radiated emission EMC pre-compliance testing and generating defined field strengths.
It is characterised from 20 MHz to 1 GHz and has a directional pattern similar to a dipole.

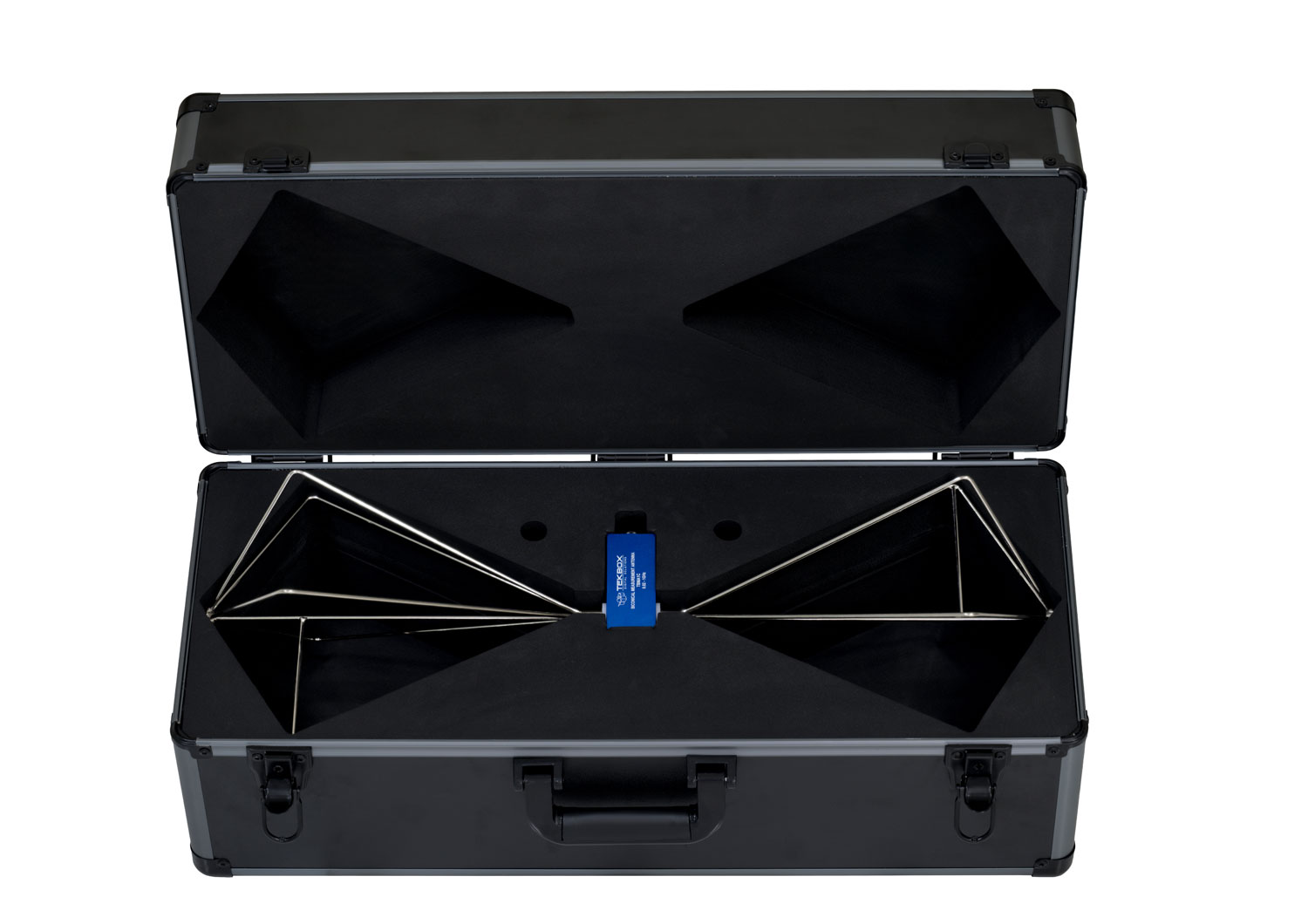

The TBMA1C comes in an aluminium carrying case. A standard ¼” thread makes it easy to connect it to most standard tripods.
The elements are corrosion-resistant and constructively locked against rotation. They are fed via a wideband balun with 2 W power handling capability. Furthermore, they are protected against the build-up of static charge.
Key Specifications
- Type: Passive biconical
- Frequency range (Optimised): 20 MHz– 700 MHz
- Frequency range (Characterised): 20 MHz– 1000 MHz
- VSWR: <2.66 (f > 200 MHz)
- Isotropic gain at 3m spacing: -38.64 … 1.26 dBi
- Antenna factor at 3m spacing: 14.19 … 40.56 dB/m
- Maximum continuous input RF power: 2W
- Nominal impedance: 50 Ω
- RF Connector: N type female
- Matching: 1:2 transformer + 1:1 balun
- Tripod Adapter: Thread Size: 1/4 “
- Antenna dimensions: L x W x H: 605 mm x 235 mm x 203 mm (23.80” x 9.26” x 8.00”)
- Antenna weight: 0.58 kg (1.28 lbs)
- Carrying case dimensions: L x W x H: 630 mm x 310 mm x 270 mm (24.80” x 12.2” x 10.6”)
- Carrying case weight: 4.4 kg (9.7 lbs)
TBMA1C Manual
