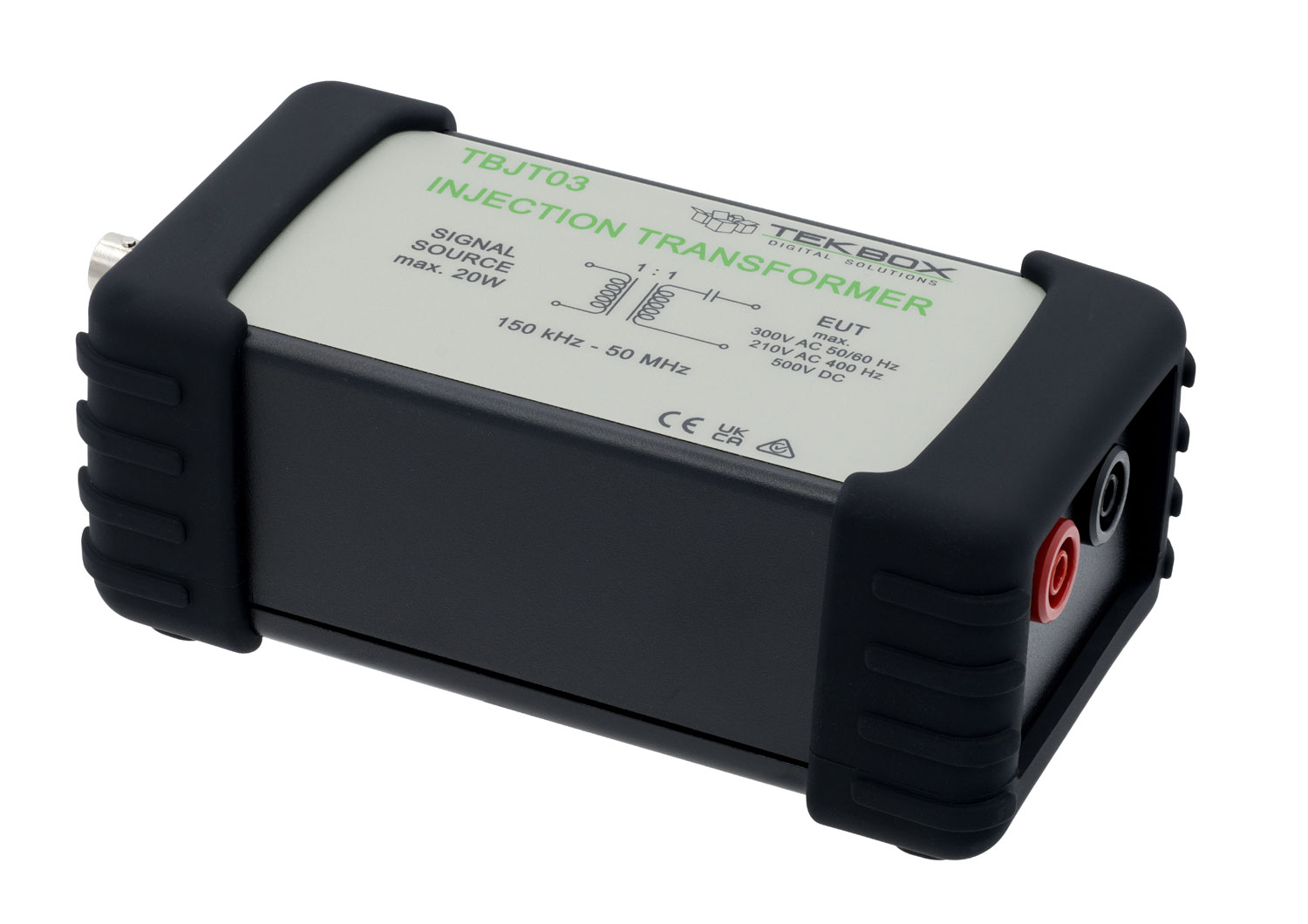

TBJT03 injection transformer

The TBJT03 is an injection transformer for CS101-related immunity measurements in the frequency range 150 kHz – 50 MHz. It provides galvanic isolation and high-pass filtering between the signal source and EUT supply lines.

Documentation


SPECIFICATIONS

  • Compliance: RoHS
  • Impedance: 50 Ω
  • Turns ratio: 1:1; 56nF Y2 coupling capacitor on the EUT side
  • Characterised freq. range: 10 Hz to 100 MHz
  • 3 dB frequency range: 50 kHz – 50 MHz typ.
  • Insertion loss (S21): 3 dB max. @ 50 MHz
  • Max. RF power rating: 20W
  • Output voltage rating: 300V AC @ 50/60 Hz, 210V AC @ 400 Hz; 500V DC
  • Residual 50 Hz voltage: 40 mV at the input connector (high Z) @ 240V AC at the secondary terminals
  • Isolation test, EUT – Input: 2500V, 22 GΩ
  • Primary connector (Input): BNC-Female
  • Secondary connectors (EUT): 4 mm safety banana jacks, 20 mm spacing
  • Operating temp. range: 0°C – 50°C
  • Enclosure dimensions: 70 mm x 60 mm x 140 mm
  • Weight: 300 g
