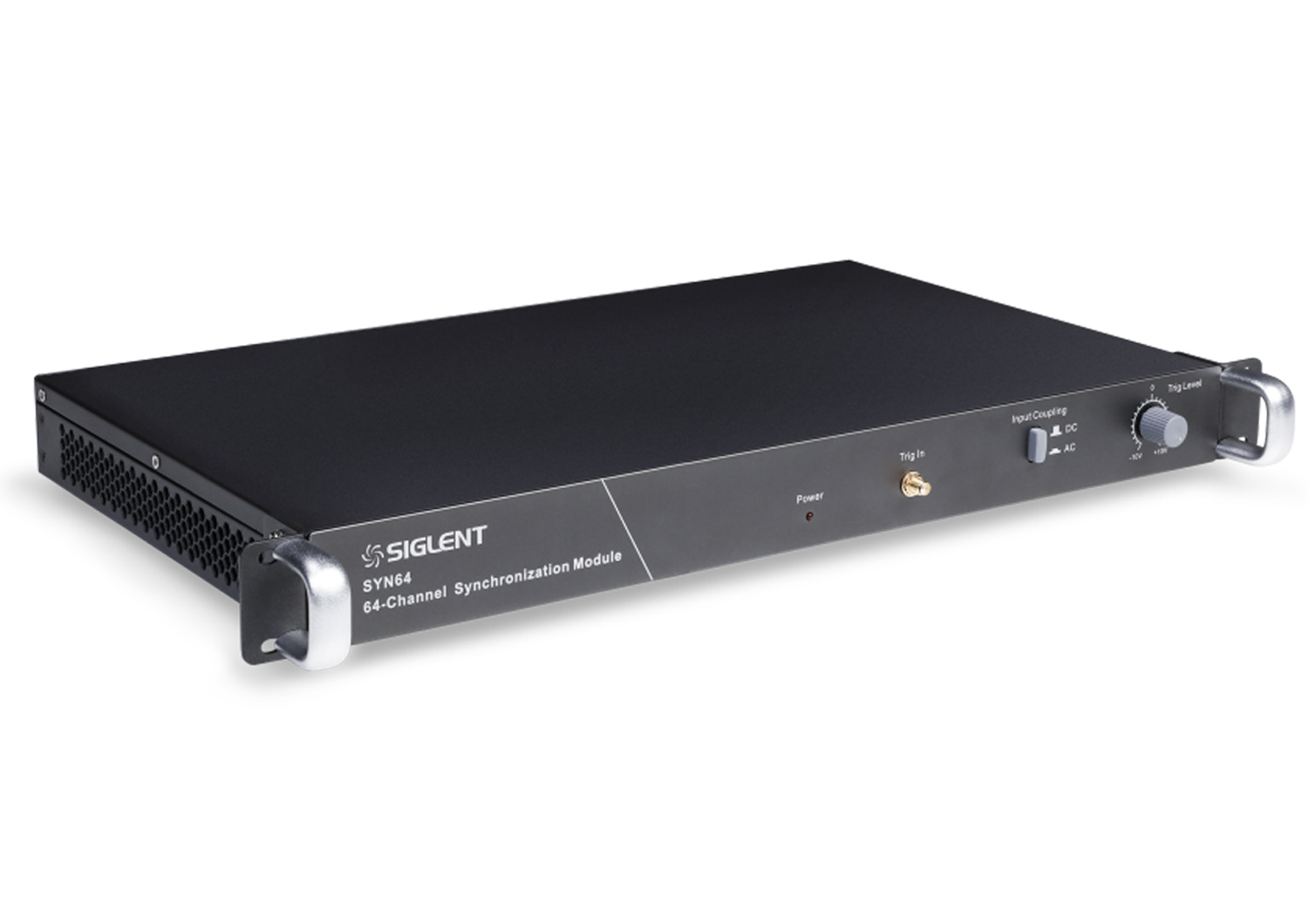

Siglent SYN64 64-channel synchronisation distributor

The SYN64 synchronisation distributor is a 1:64 high-speed digital signal driver, which fan-outs the input into 64 outputs with low-jitter, low-skew. Its input offers both DC and AC coupling modes and an adjustable trigger level.

For a multi-channel acquisition system built with multiple oscilloscopes, a synchronisation distributor is an essential device. Use the SYN64 as the trigger source of the oscilloscopes, connecting the outputs of the SYN64 to the EXT trigger or analogue channel of the oscilloscopes to build an acquisition system. You can also use the SYN64 to calibrate the skew between channels of the acquisition system. By connecting the outputs of the SYN64 to the analogue channel inputs of the oscilloscopes, you can calibrate the delay of each analogue channel and cable to ensure the alignment of multiple channels.

Key Features:

  • 1:64 high-speed fanout
  • DC-coupled and AC-coupled input modes
  • -10V ~ 10V input range
  • -10V ~ 10V trigger level range
  • Low jitter, low skew
  • 1U height for standard rack mounting

Documentation


All specifications are not guaranteed unless the following conditions are met:

  • The module has been working continuously for at least 30 minutes at the specified temperature (18℃ ~ 28℃)
Input
Channels 1
Voltage Range -10 V ~ +10 V
Swing 1.5 ~ 20 Vpp
Impendance 50 Ω
Power ≤ 1 W
Minimum pulse width 1 ns
Coupling DC, AC
Trigger level -10 V ~ +10 V, adjusted by potentiometer
Connector SMA
Output
Channels 64
Group 8. Output 1~8 as Group 1, Output 9~16 as Group 2, and so on
Voltage 800 mVpp swing, 400 mV DC offset (into 50 Ω)
Rise time 300 ps typical (20% to 80%)
Jitter 1 ps rms typical
Skew In group: 30 ps typical, 50 ps maximum, 0 ~ 50 ℃
Between groups: 140 ps typical, 200 ps maximum, 0 ~ 50 ℃
Requirement on load 50 Ω to ground, DC coupled
Connector SMA
General
Dimensions L × H × W =434.8 mm × 43.0 mm × 285.4 mm
Power Consumption 12 W
Temperature Operating: 0℃ ~ 50℃
Non-operating: -30℃ ~ 70℃
Humidity Operating: 5% ~ 90%RH, 30℃, degraded to 50%RH at 40℃
Non-operating: 5% ~ 95%
Altitude Operating: ≤ 3,048 m, 25℃
Non-operating: ≤15,266 m
