Siglent SSG6082A-V RF Vector Signal Generator, IQ 10 MHz to 8 GHz, CW 9 kHz to 8 GHz

Description

Siglent SSG6082A-V RF Vector Signal Generator

The SSG6082A-V Vector Signal Generator delivers an output frequency range of 9 kHz to 8 GHz, supporting AM, FM, and PM analogue modulation, as well as pulse modulation and pulse sequence generation. Equipped with an internal 500 MHz bandwidth IQ baseband source, it combined with SigIQPro PC software to generate common digital modulated signals and communication protocol signals such as 5G NR, WLAN, LTE, BLUETOOTH, and IoT protocols. With factory calibration, the RF output exhibits excellent 1 GHz broadband characteristics and good ACPR performance, making it suitable for various applications in R&D, production, and other scenarios.

Key Features:

• Highest Frequency：8 GHz
• Output Frequency Resolution：Up to 0.001 Hz
• Level Setting Range：-140 dBm to 30 dBm
• Phase Noise：< -132 dBc/Hz @ 1 GHz, offset 10 kHz (typical value)
• Amplitude Accuracy：≤ 0.7 dB (typical value)
• Modulation Support：Supports AM/FM/PM analogue modulation, internal and external modulation options.
• Pulse Modulation：Supports pulse modulation function, pulse train generator, and user-defined pulse sequences (optional).
• General Modulation：Capable of real-time output of QAM, FSK, ASK, PSK, multi-tone, and various other modulated signals.
• Supports playback of waveform files and sequences.
• Support waveform file playback：waveform sequence generation and playback.
• Communication Protocol Signals：Supports generation of common communication protocol signals such as 5G NR, WLAN,LTE, BLUETOOTH, IOT, etc., when used with SigIQPro software.
• MIMO and Other Applications：Supports MIMO and various other application scenarios.
• Real-time IQ Baseband AWGN：Supports real-time IQ baseband AWGN, allowing accurate control of signal and noise power, simplifying additional measurements and calculations required for receiver measurements.
• Power Meter Control Kit：Facilitates power measurement, control of power output, and line loss correction using a power meter.
• Vector Mode S-Parameter Compensation：Supports S-parameter compensation in vector mode to optimize the broadband characteristics of the test system.
• Web Remote Control：Supports web remote control for convenient remote operation by users.

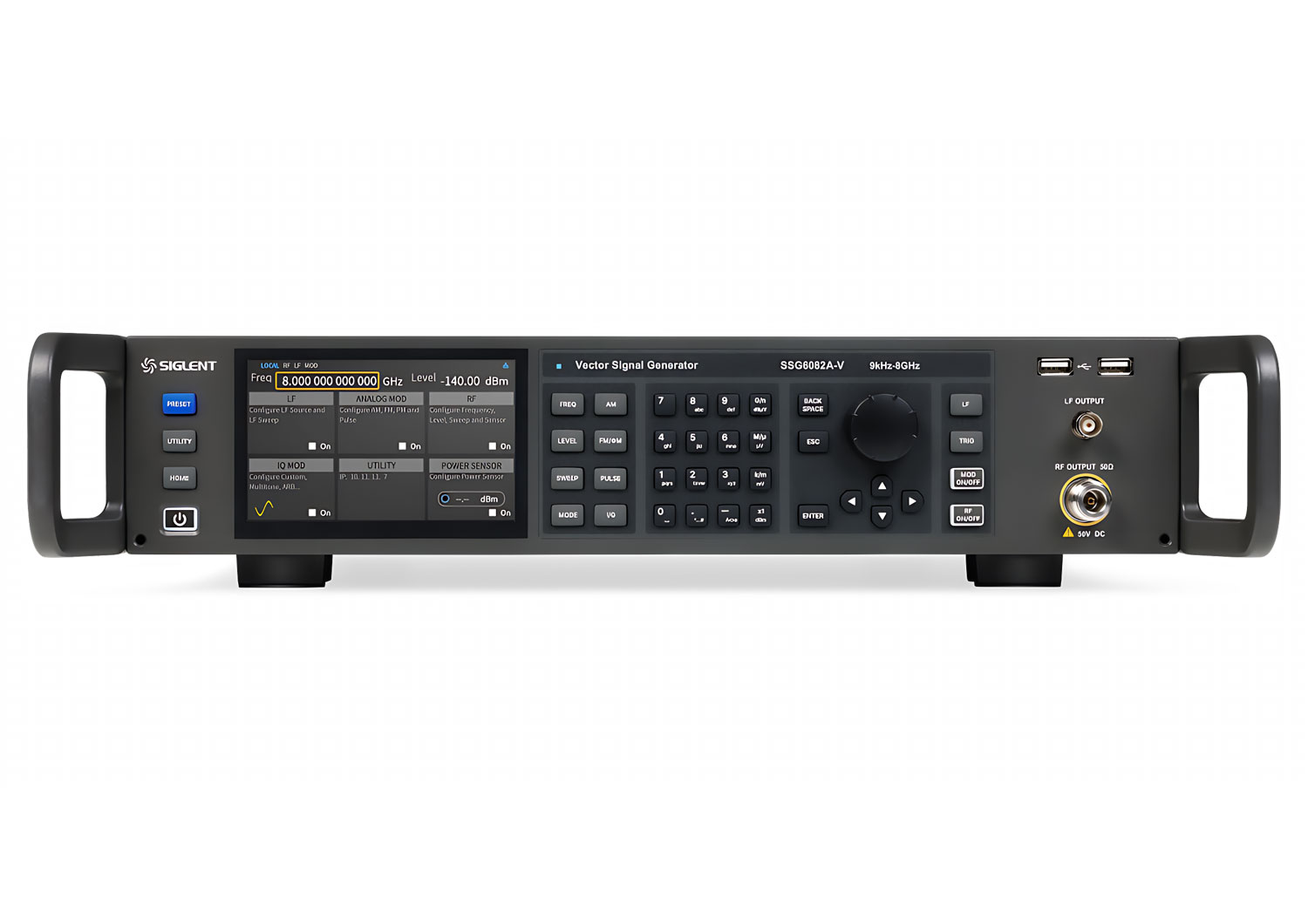

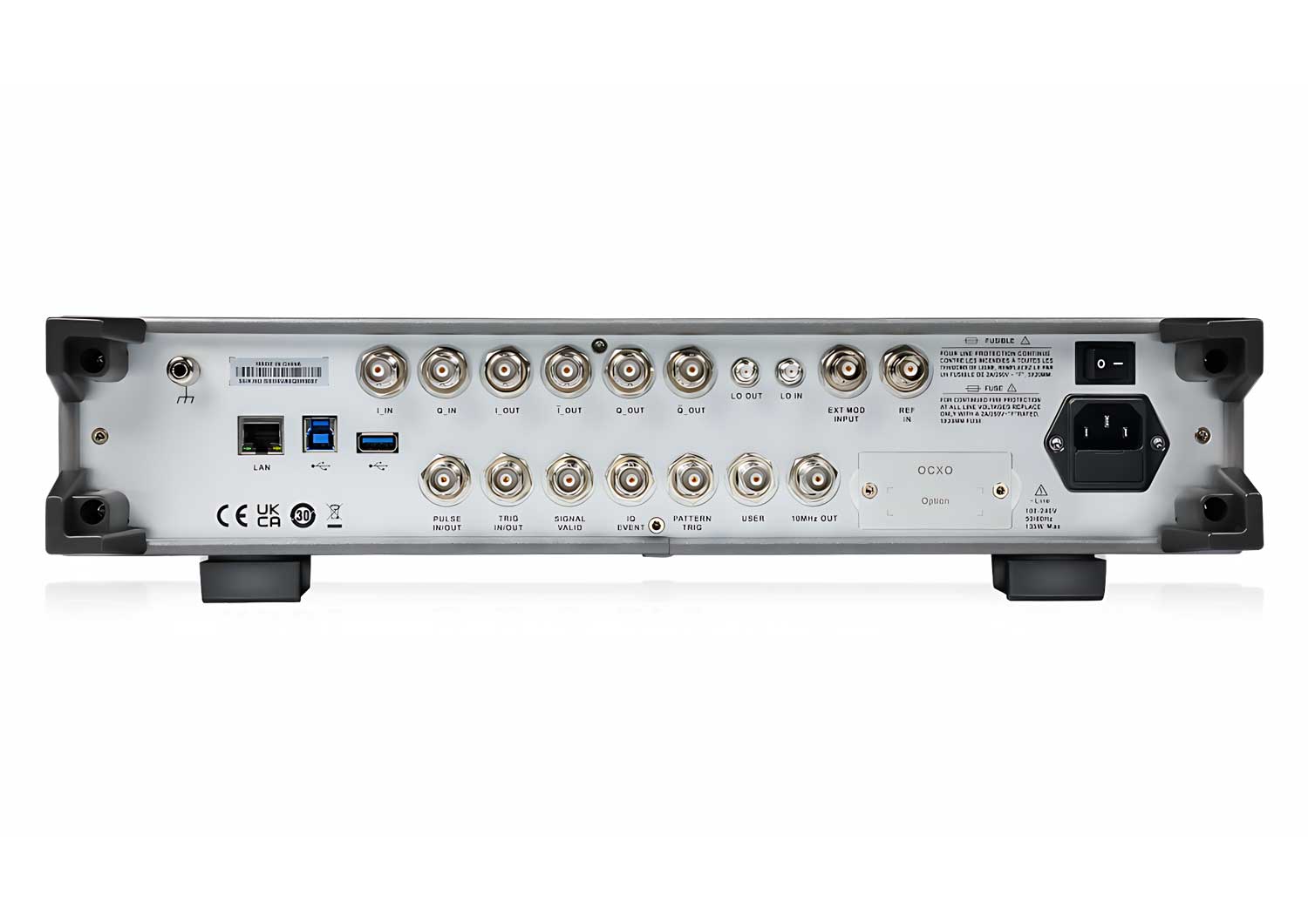

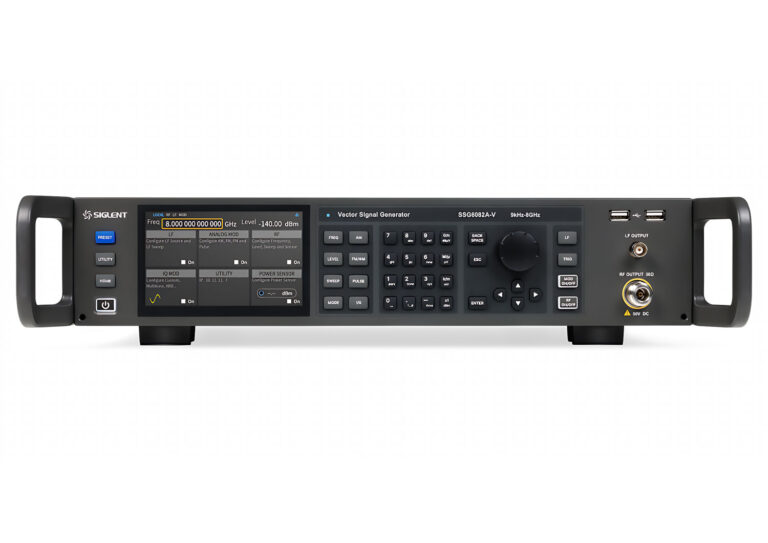

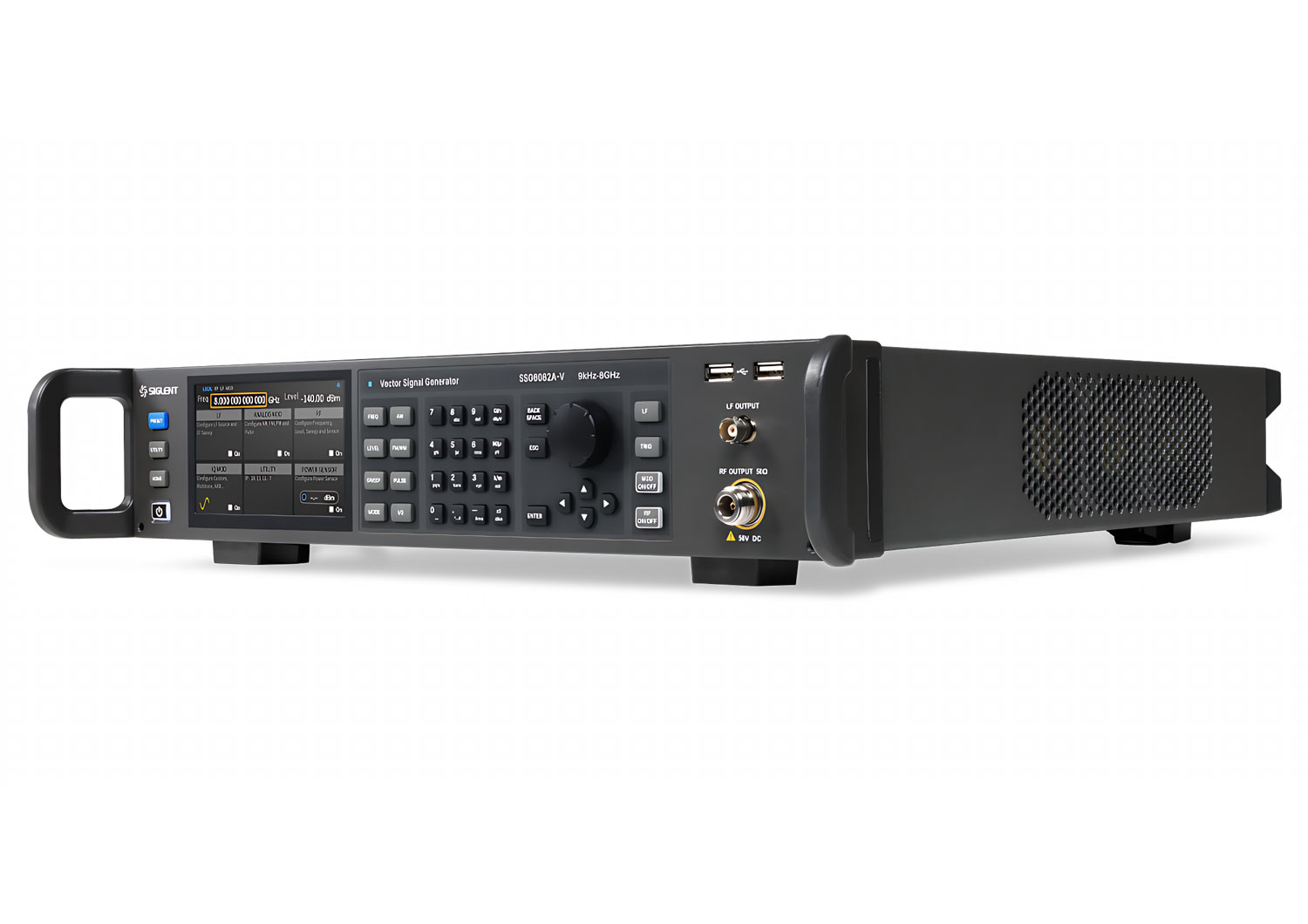

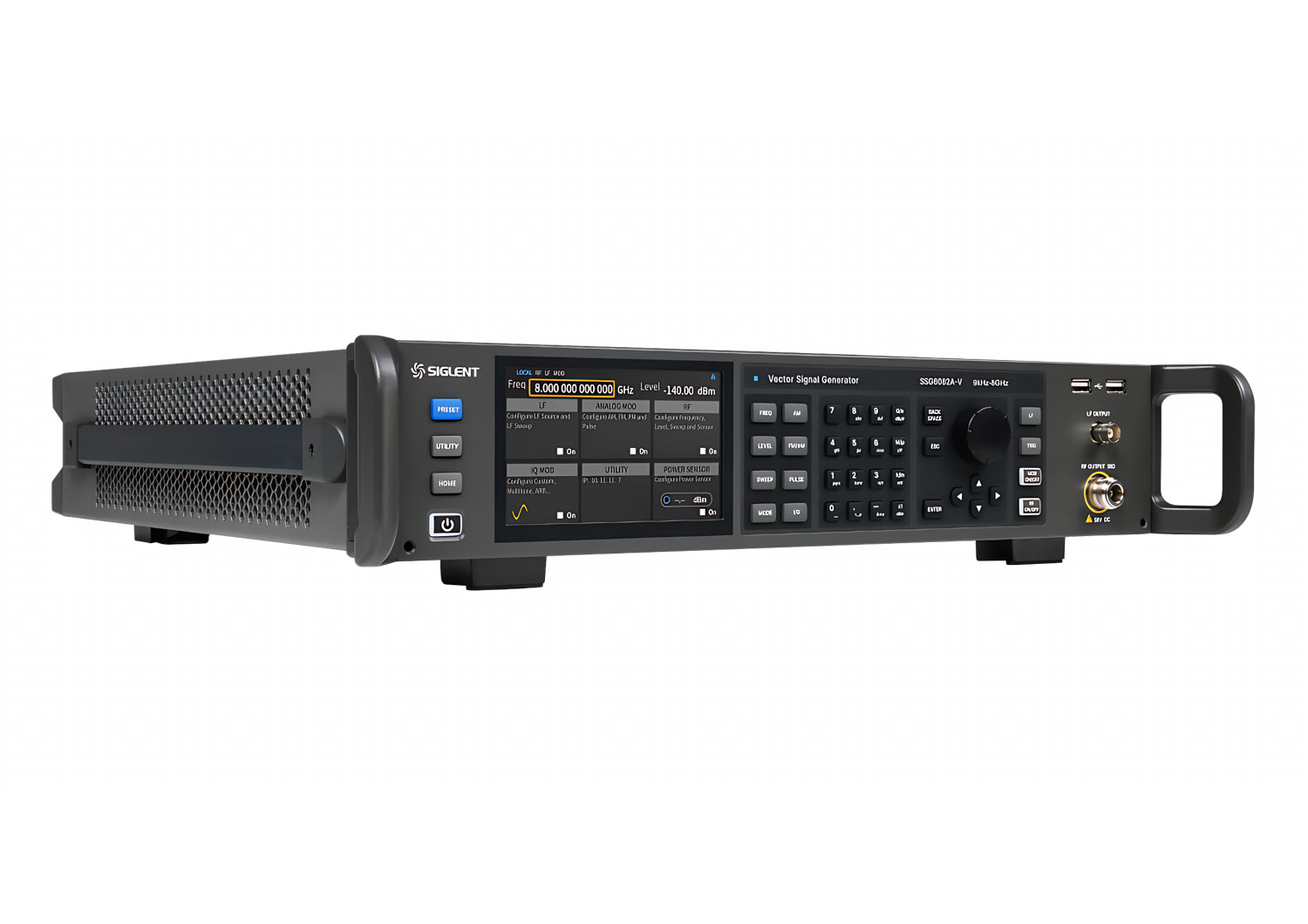

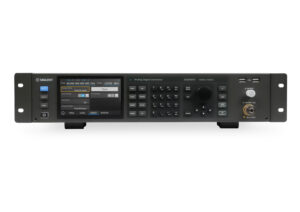

Product Images

❮ ❯

Ultralow Phase Noise

Learn more

Superior Signal Quality

Learn more

More Accurate Transmitter Simulation

Learn more

× ❮ ❯

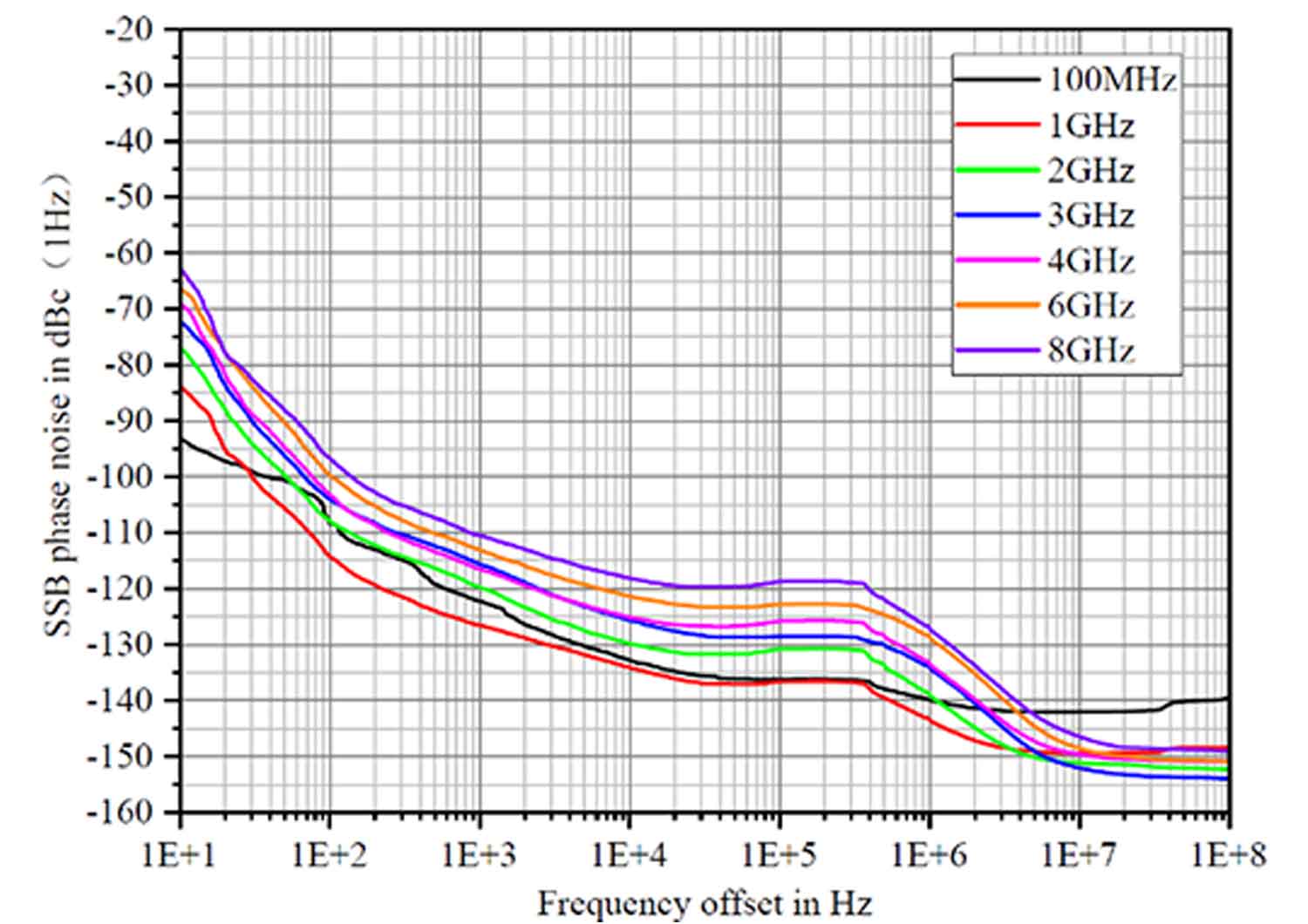

Ultralow Phase Noise
SSG6082A-V series features ultra-low phase noise, reaching -132 dBc/Hz at a 10 kHz offset for a 1 GHz signal. Higher spectral purity reduces test errors, enhancing the accuracy and reliability of measurement results. In wireless communication, low phase noise signals help minimize bit error rates (BER), improving communication stability and reliability.

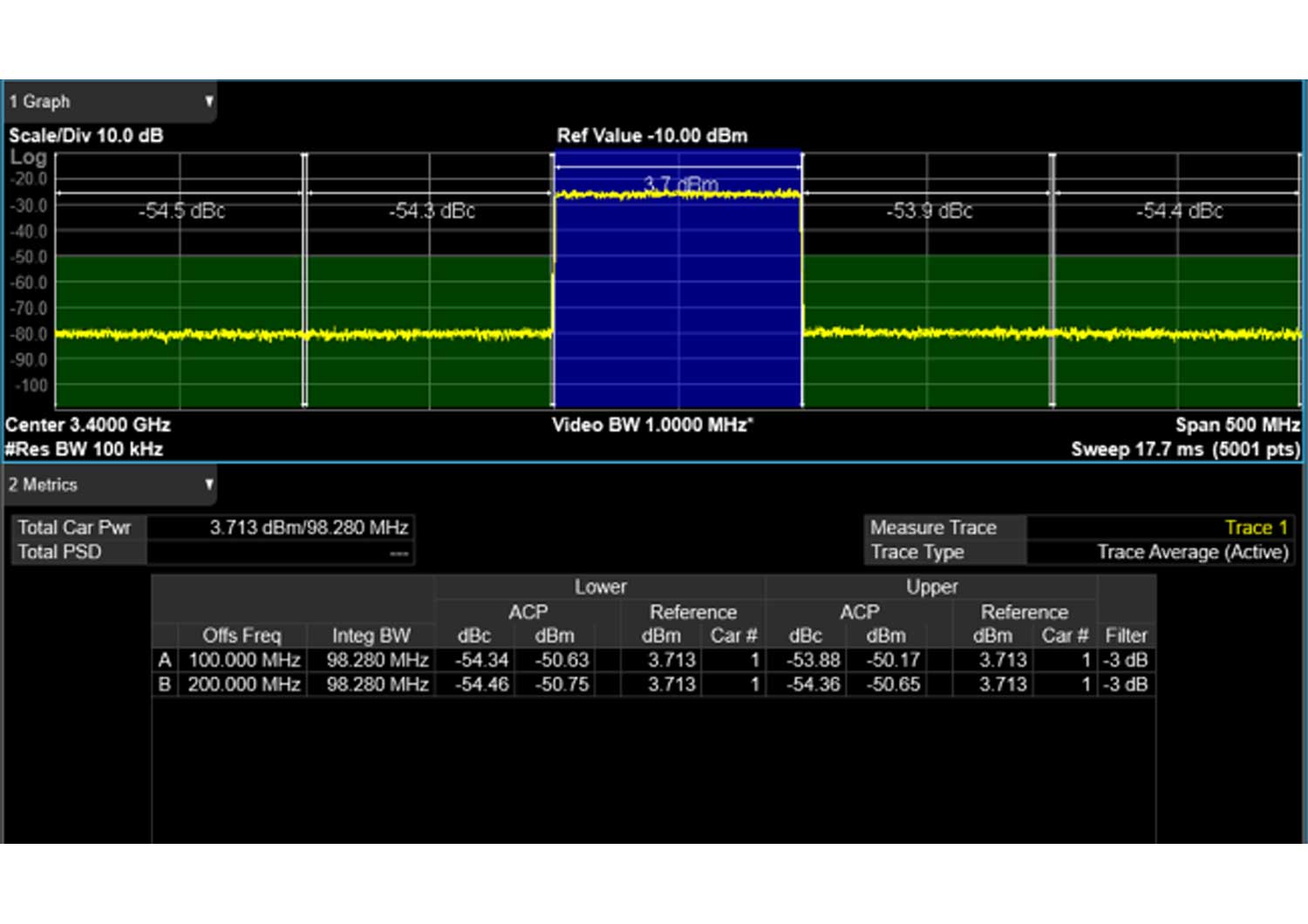

Superior Signal Quality
SSG6082A-V has excellent 1GHz RF modulation bandwidth and ACPR characteristics, meeting most communication test requirements. When generating common communication protocol signals such as WLAN, 5G NR and LTE, it consistently achieves excellent EVM performance. Excellent ACPR minimizes neighbouring channel interference during multi-channel testing, enabling more accurate simulation of real-world communication environments.

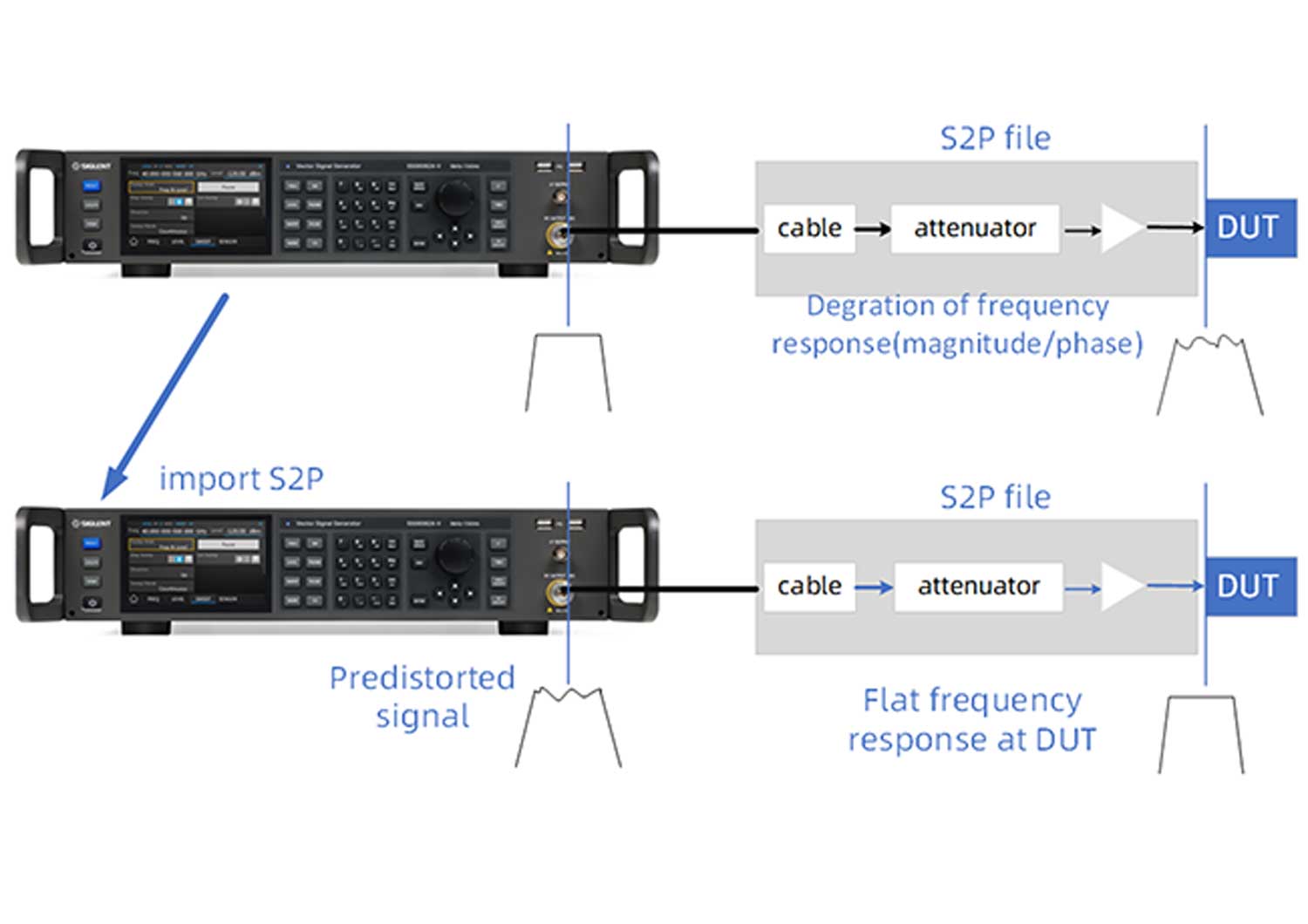

More Accurate Transmitter Simulation
SSG6082A-V supports automatic amplitude, frequency, and phase compensation based on the S2P file of the test system. This compensation minimizes phase fluctuations and phase noise while flattening the signal amplitude across the entire frequency range, ensuring consistent signal levels at different frequencies. With enhanced system compatibility, the SSG6082A-V accommodates a broader range of applications, delivering precise and efficient test system performance.

Product Videos

Siglent SSG6082A-V Vector Signal Generator
