Description

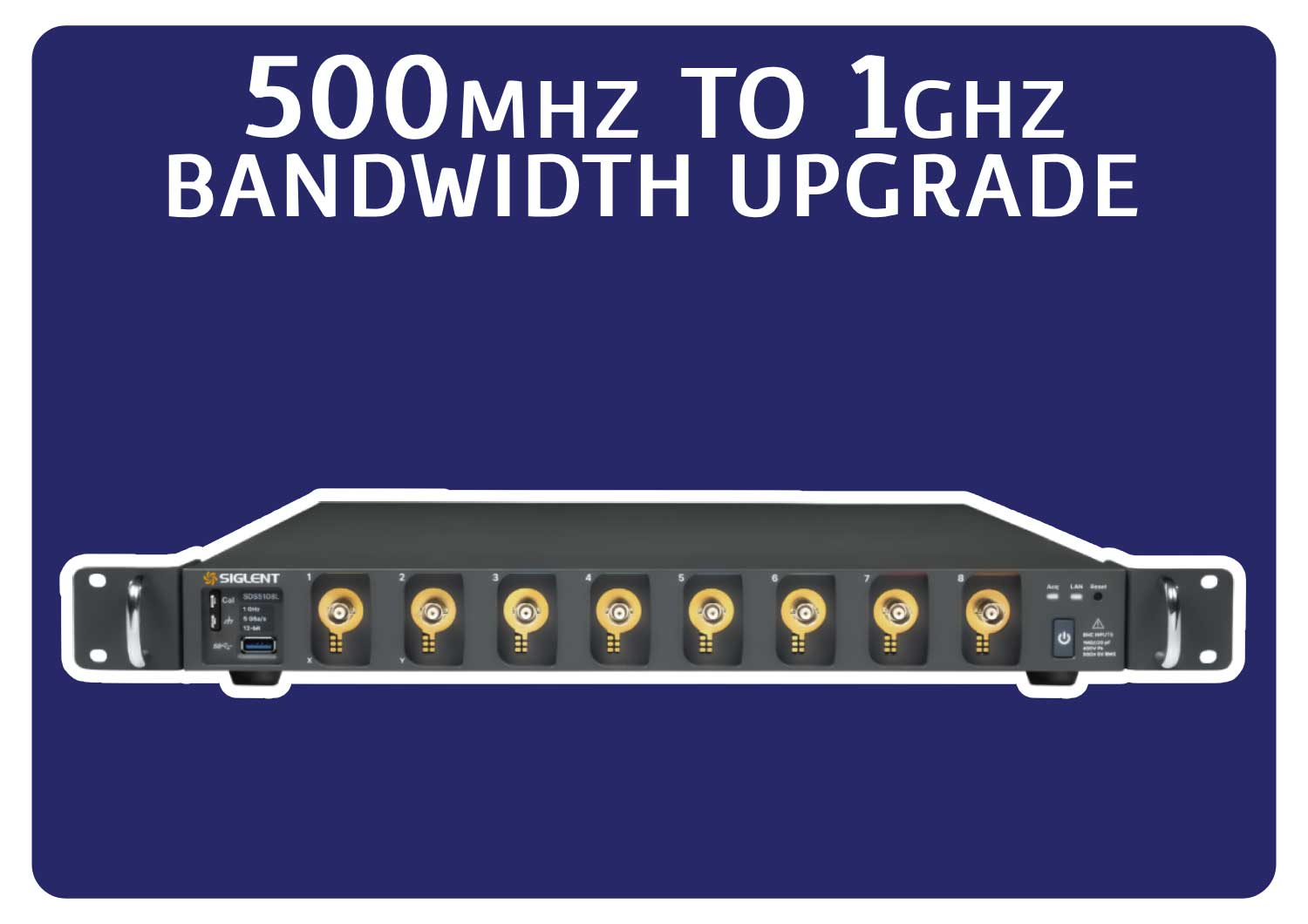

Siglent SDS5058L 8Ch, 500MHz, 5 GSa/s, Low Profile Digital Storage Oscilloscope
The SDS5058L, part of the SDS5000L series Low Profile Digital Storage Oscilloscopes, are available in 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, have 12-bit ADCs with sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch. SDS5000L series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 160,000 wfm/s, 256-level intensity grading display function, plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, as well as serial decoding, are also features of them.
- 8 analogue channels for SDS5000L
- Up to 1 GHz bandwidth with up to 5 GSa/s sample rate
- 12-bit ADC (Up to 16-bit ERS Mode)
- Low noise floor: 140 μVrms @ 1 GHz bandwidth (typical)
- SPO technology
- Waveform capture rates up to 160,000 wfm/s in normal mode and 650,000 wfm/s in sequence mode
- Supports 256-level intensity grading and colour temperature display modes
- Up to 2.5 Gpts/ch waveform length
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
- Serial bus triggering and decoder, supports protocols included as standard I2C, SPI, UART, CAN, LIN, and optional CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester and ARINC429
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 170,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, the maximum recorded waveform length is 170,000 frames
- Automatic measurements on 60+ parameters, supports statistics with histogram, track, trend, gating measurement, and measurements on Math, History and Memory traces
- 8 Math traces (8 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Double Pulse Test
- High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
- 16 digital channels
- External 50 MHz waveform generator supported
- Large 12.1” TFT-LCD display with 1280 * 800 resolution; Capacitive touch screen supports multi-touch gestures
- Interfaces include: 2x USB Host 3.0, USB 2.0 Host, USB 3.0 Device (USBTMC), 1000M LAN, HDMI, External Trigger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In, 10 MHz Out
- Built-in web server supports remote control over the LAN port using a web browser. Support SCPI remote control commands. Support external mouse and keyboard
Note* Some features may require an option. Please see the Datasheet for more information.
Siglent SDS5000L Oscilloscope Comparison Table
Models | Bandwidth | Max. Sampling Rate | Analog channels | Memory Depth(Max.) |
---|---|---|---|---|
SDS5038L | 350 MHz | 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) |
8 | 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) |
SDS5058L | 500 MHz | 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) |
8 | 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) |
SDS5108L | 1 GHz | 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) |
8 | 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) |
