Siglent SDM4065A 6.5 Digit Digital Multimeter, DCV 200 mV -1000 V, ACV 200 mV – 750 V

£757.00 (£908.40 inc. VAT)

Available on back-order

Please Select Extra Service Options ▼
SKU: SDM4065A Categories: , , , Tags: , , Brand:

Description

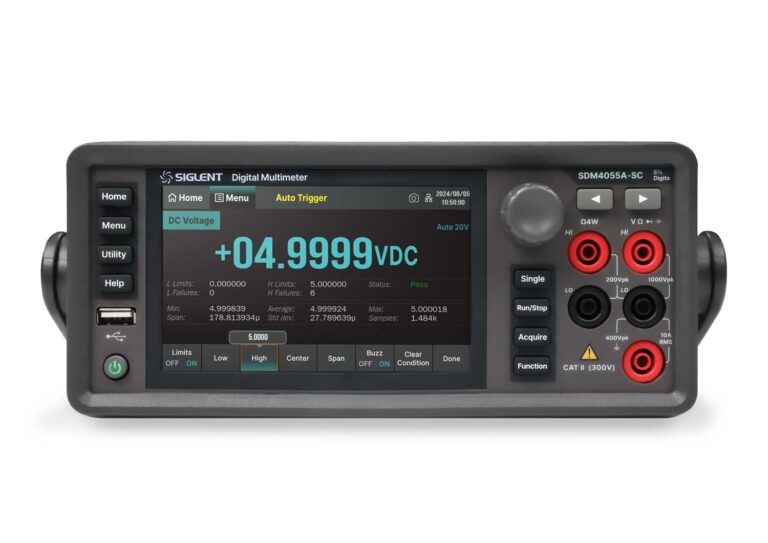

Siglent SDM4065A Digital Multimeter

The SDM4065A series is a flagship digital multimeter, providing 6½-digit high accuracy and a maximum reading rate of up to 50,000 times/second, ensuring fast and accurate measurements. Built-in thermocouple cold-end compensation supports a variety of data visualisation functions such as histograms and trend charts, allowing users to analyse data intuitively. USB Device, USB Host and LAN interfaces are standard, supporting remote control and data transmission. Its 2Gb large-capacity storage can save a large amount of measurement data and setting files, making it an ideal choice for professional engineers and researchers.

Key Features:

  • 6½ digit reading resolution (2,200,000 counts)
  • Maximum reading rate 50k rdgs/s, minimum sampling interval 20μs
  • True RMS AC voltage and AC current measurements
  • Recorder function and digitizer function
  • 5-inch touch screen, resolution 800*480

Comparison of Model Types:

Model SDM4065A SDM4065A-SC[1]
Number of Digits 6½
DCV Basic Accuracy 35 ppm
Max Reading Rate 50,000 rdgs/s
Memory Up to 2 million readings
Support Scanner No Yes
DCV Range 200 mV ~ 1000 V
ACV Range 200 mV ~ 750 V
DCI Range 200 uA ~ 10 A
ACI Range 200 uA ~ 10 A
2/4-Wire Resistance Range 200 Ω ~ 100 MΩ
Continuity / Diode Buzzer, 4 V
Frequency / Period Range 3 Hz ~ 1 MHz
Temperature RTD, thermocouple
Capacitance Range 2 nF ~ 10 mF
IO USB Host, USB Device, LAN, GPIB (optional)
External Interface Exit trigger, VMC out
Display Screen 5-inch TFT touchable display screen

Product Images

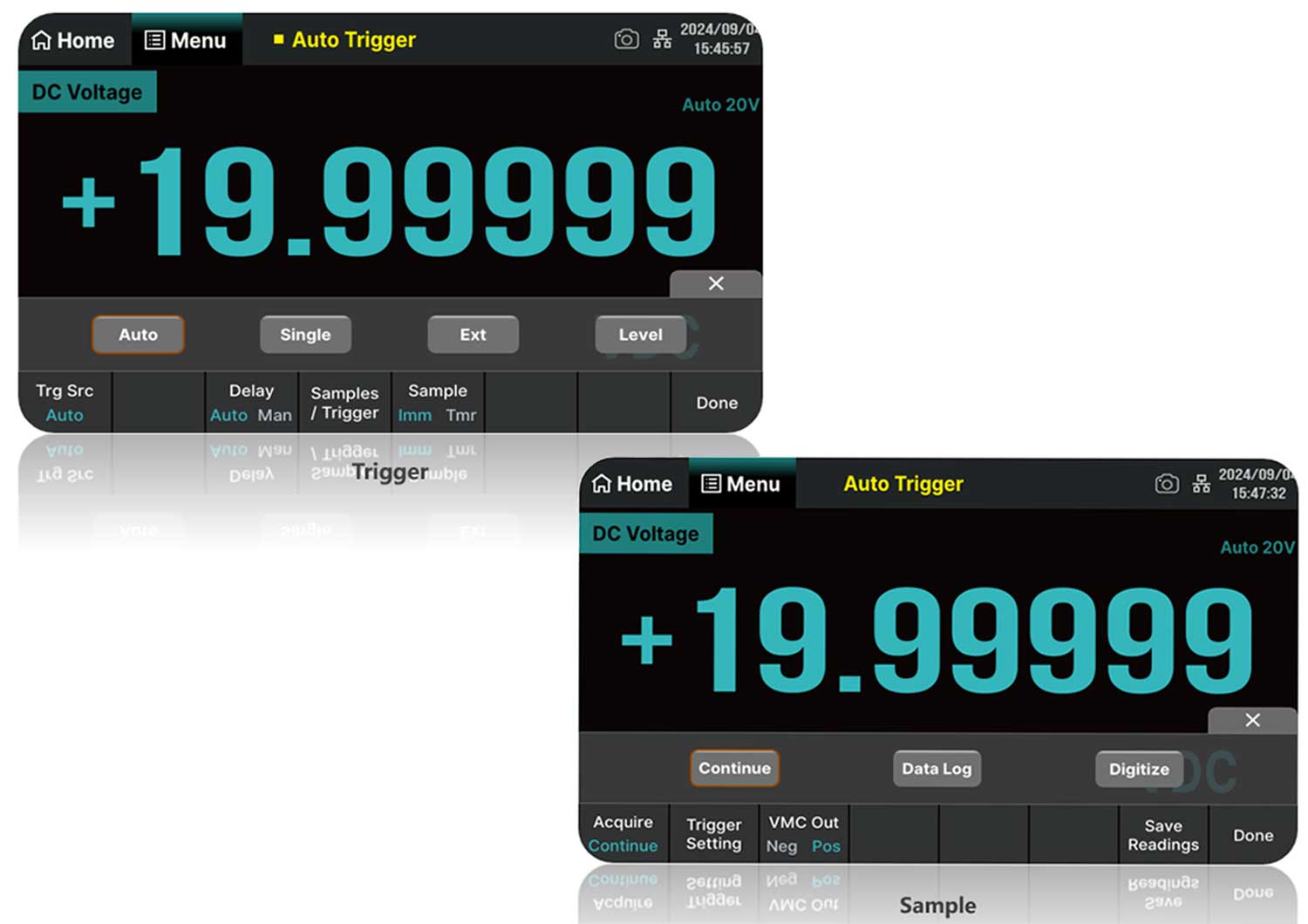

Trigger and Sample<br /> <br /> Trigger Modes:<br /> Auto Trigger, Single Trigger, External Trigger, Level Trigger<br /> SDM4000A can capture one or a specified number of readings upon receiving a trigger signal. Users can configure the delay time between trigger activation and data acquisition.<br /> <br /> Supported Sampling Modes:<br /> Continuous Sampling<br /> Recorder Function<br /> Digitizer Function

Trigger and Sample

Data Logging Function<br /> <br /> Purpose: Ideal for long-term data logging applications.<br /> Key Specifications:<br /> Recording Interval: 0.1 s to 3600 s<br /> Maximum Internal Memory: 2M points<br /> Maximum File Storage: 360M points<br /> Maximum Duration: 100 hours<br /> Measurable Parameters: DCV, DCI, ACV, ACI, Ω, frequency, period, temperature.<br />

Data Logging Function

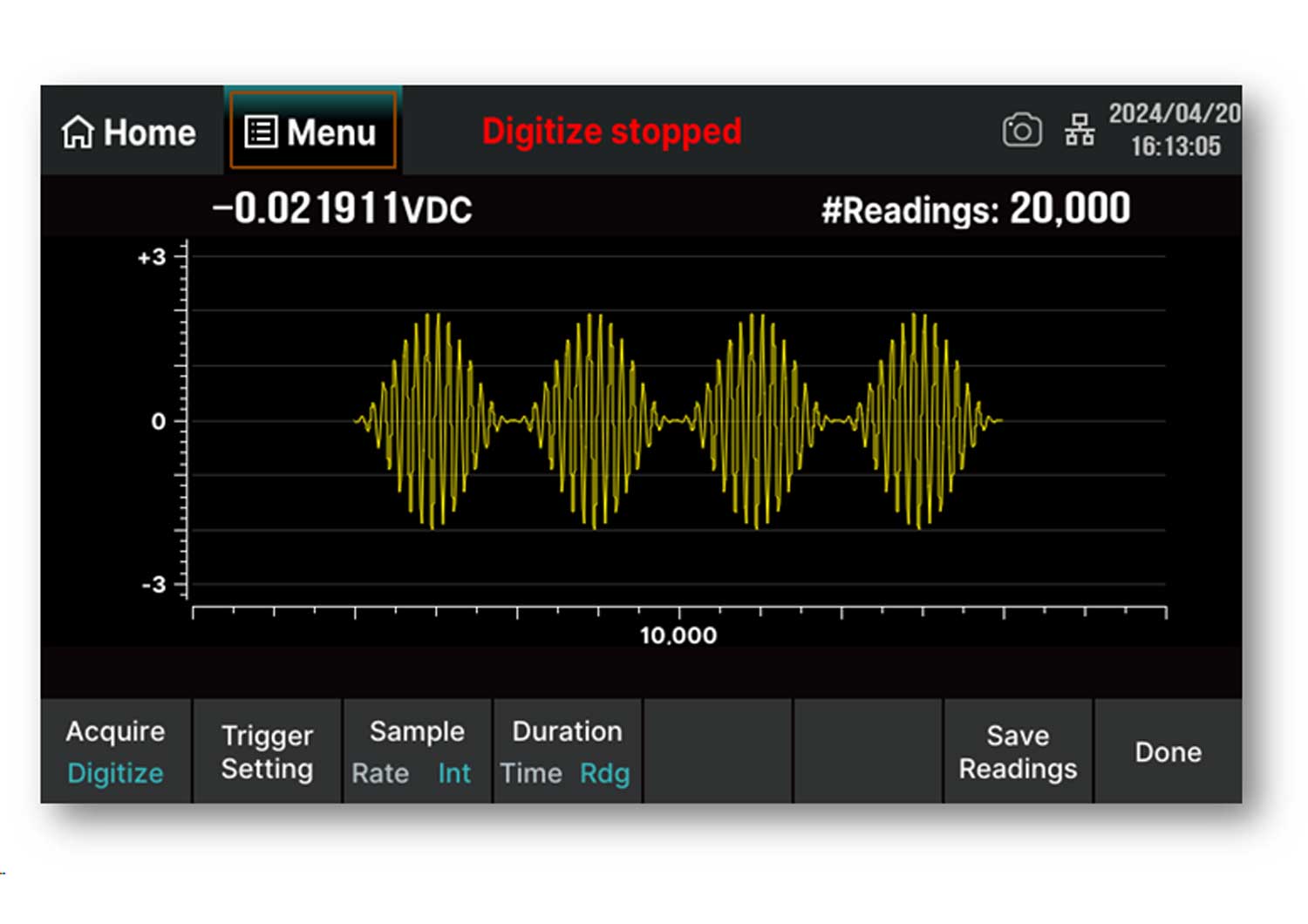

Digitiser Function<br /> <br /> Advantages:<br /> Outperforms oscilloscopes and spectrum analyzers in low-frequency, high-precision sampling. <br /> Ideal for applications such as precision digital sampling and audio signal digitization.<br /> <br /> Key Specifications:<br /> Maximum Sampling Rate: 50 kSa/s<br /> Single Capture Capacity: 2M points<br /> Bandwidth: 10 kHz

Digitiser Function

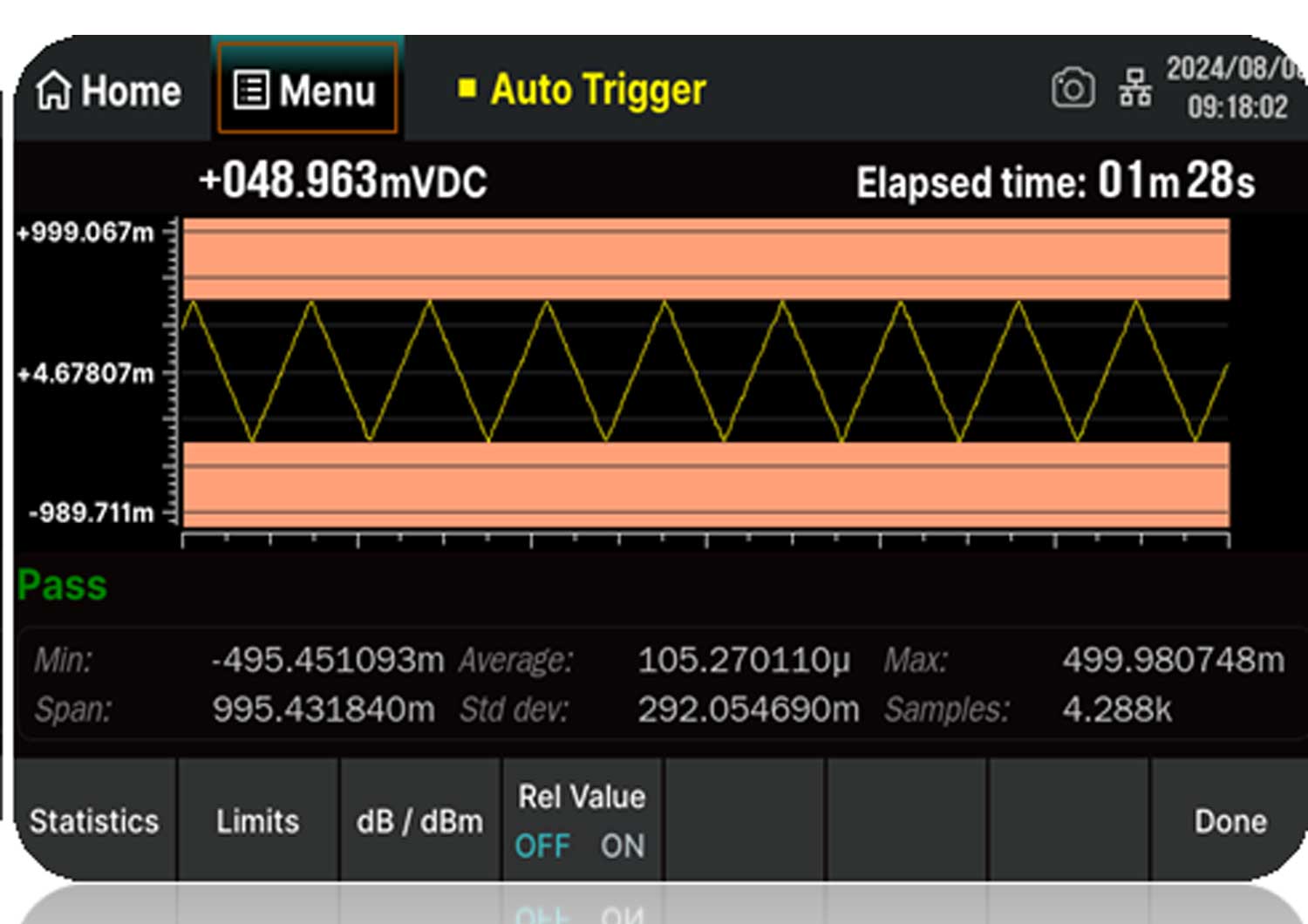

Math Function<br /> <br /> Statistics:<br /> Calculates Max, Min, Average, Peak-to-Peak, Standard Deviation, Sample Count.<br /> <br /> Limit Testing:<br /> Performs Pass/Fail tests based on user-defined upper/lower thresholds.<br /> <br /> dBm Calculation:<br /> Computes power (0 dBm = 1 mW) across a reference resistor.<br /> <br /> dB Calculation:<br /> Measures relative values in decibels against a reference.<br /> <br /> Relative Value Calculation:<br /> Displays the difference between actual measurements and a stored reference value.

Math Function

Dual Display<br /> <br /> Function: Simultaneously displays two characteristics of the same input signal.<br /> <br /> Advantage: Eliminates the need for additional instruments, facilitating efficient multi-parameter monitoring.<br /> <br /> Enhanced Capability: Streamlines intricate testing and measurement workflows.

Dual Display

Probe Hold<br /> <br /> Stability Alert: Triggers a buzzer when stable readings are detected, automatically displays the value on the front-panel display<br /> <br /> Features:<br /> Retains the latest 8 readings on-screen.<br /> Supports multiple measurement types (e.g., DCV, ACV, resistance).<br /> Allows users to review historical data or clear displayed readings at any time.

Probe Hold

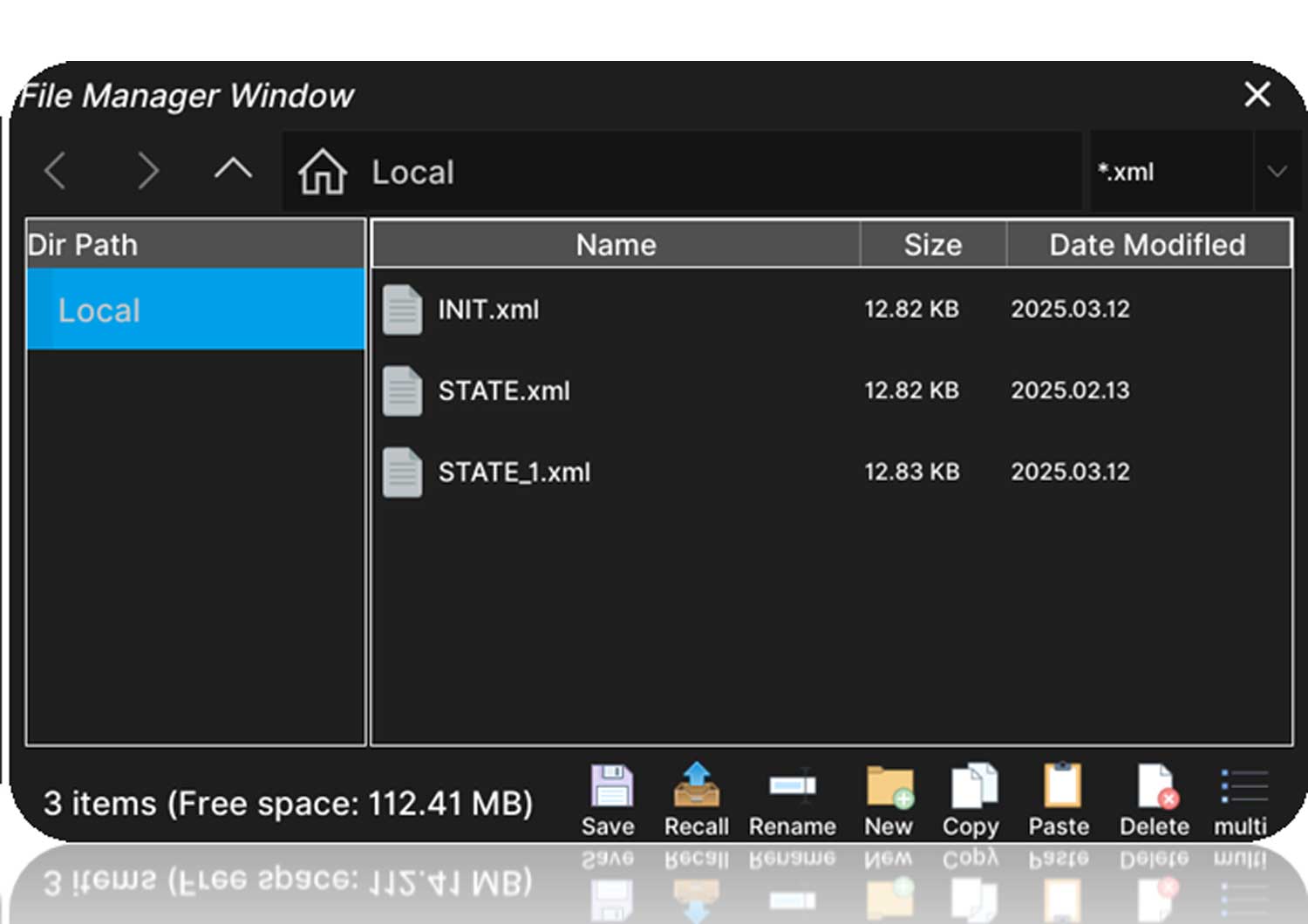

Storage/Recall<br /> <br /> Store/Restore Settings: Supports saving and restoring instrument parameter files and data files in/from internal storage and external USB storage devices.<br /> <br /> Timestamp Support: Adds timestamps to recorded readings.<br /> Internal Storage: Up to 2M points of internal memory.<br /> Memory Capacity: 2Gb NAND Flash storage.<br /> <br /> File Formats:<br /> Measurement data saved as CSV files.<br /> Scan card configurations saved as XML files.<br /> <br /> File Management: Users can create folders, save screenshots, and perform operations like copying, renaming, and deleting files.

Storage/Recall

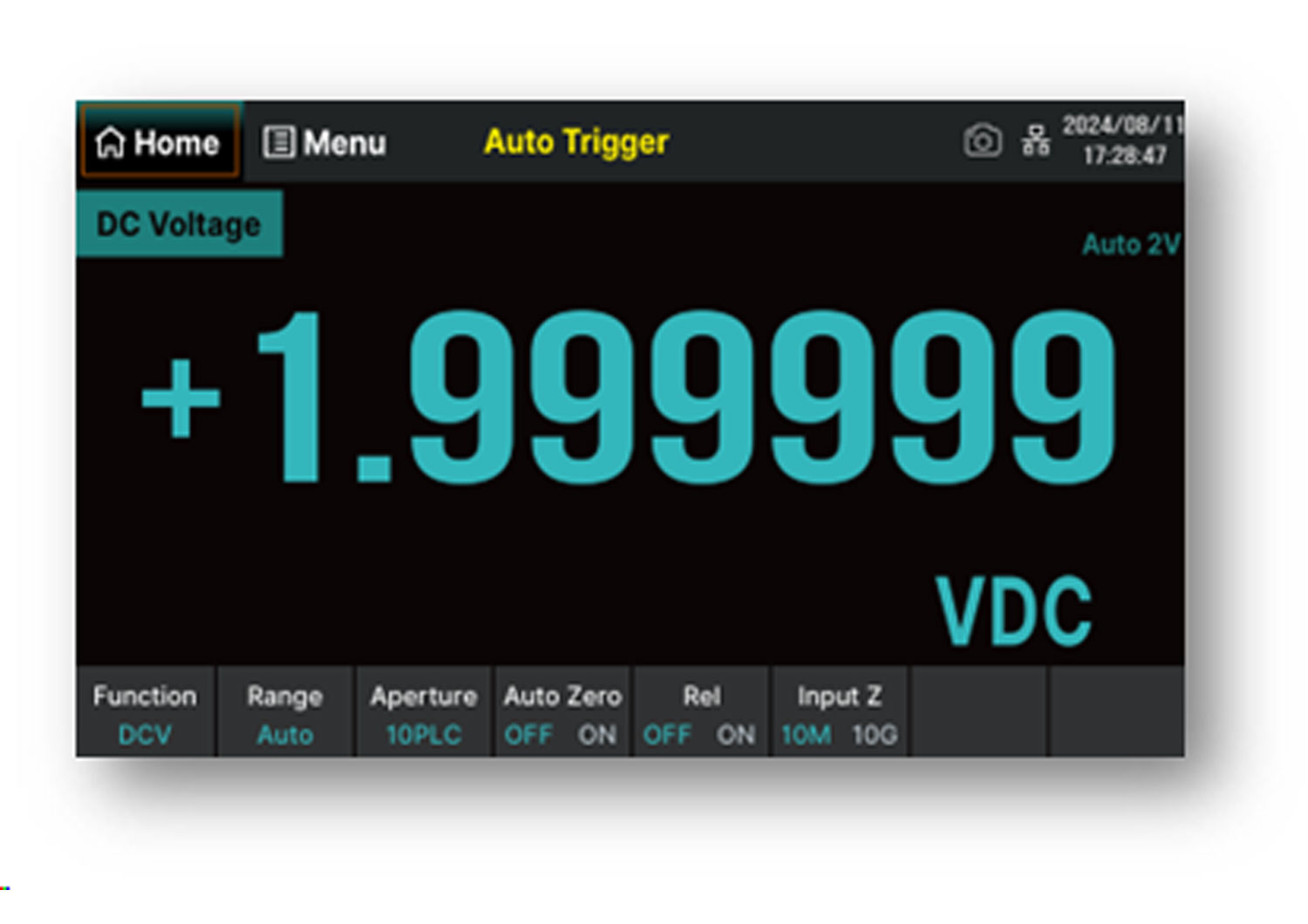

Numerical Display: Observe measurement data changes intuitively.

Digital Display

Histogram: Displays measurement data in a distribution format.

Histogram

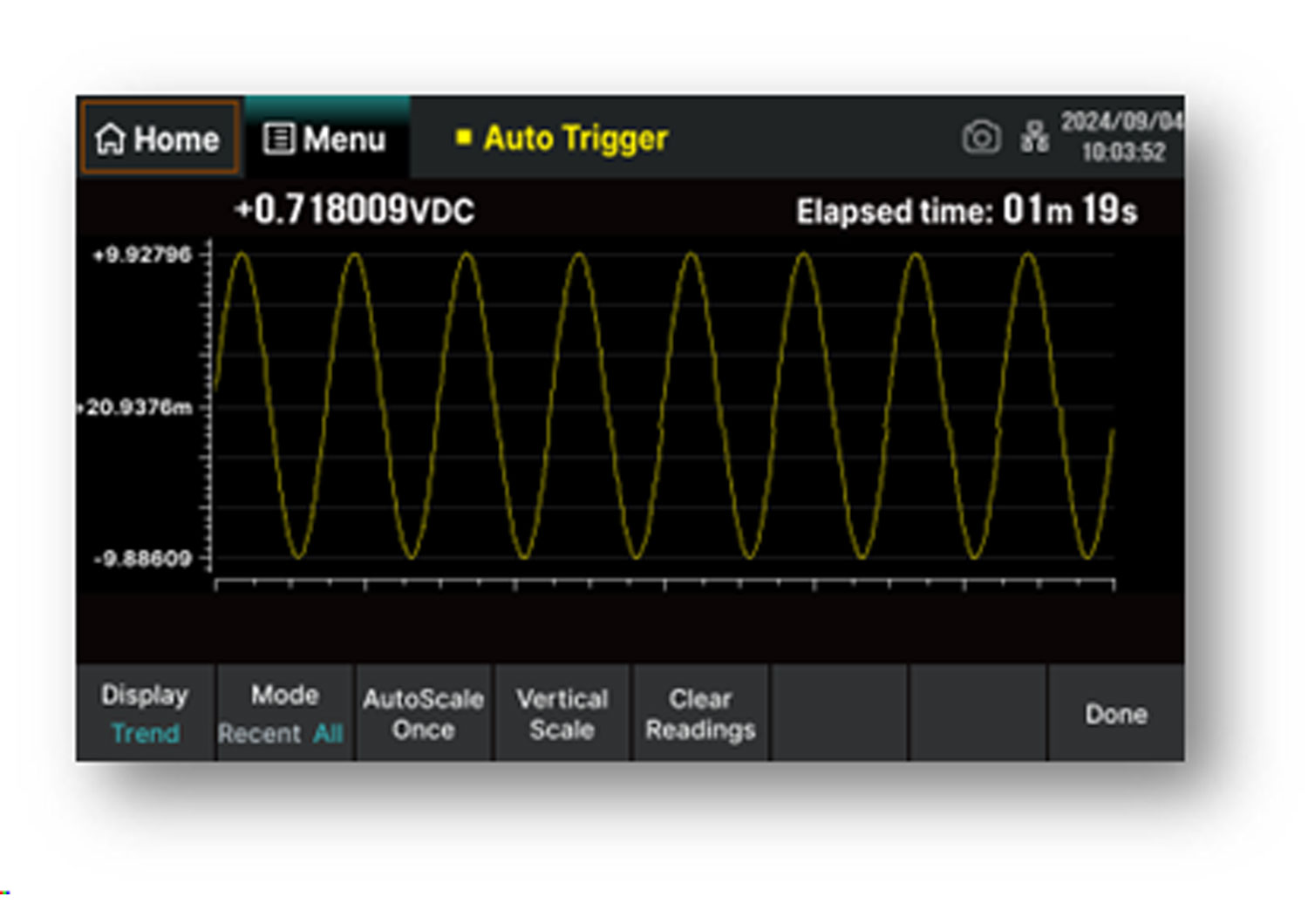

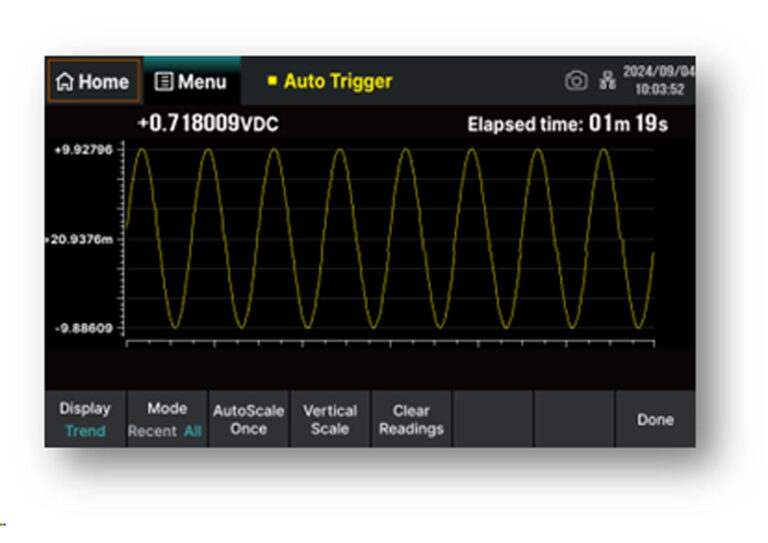

Trend Chart: Shows data trends over time in continuous measurement mode.

Trend Chart

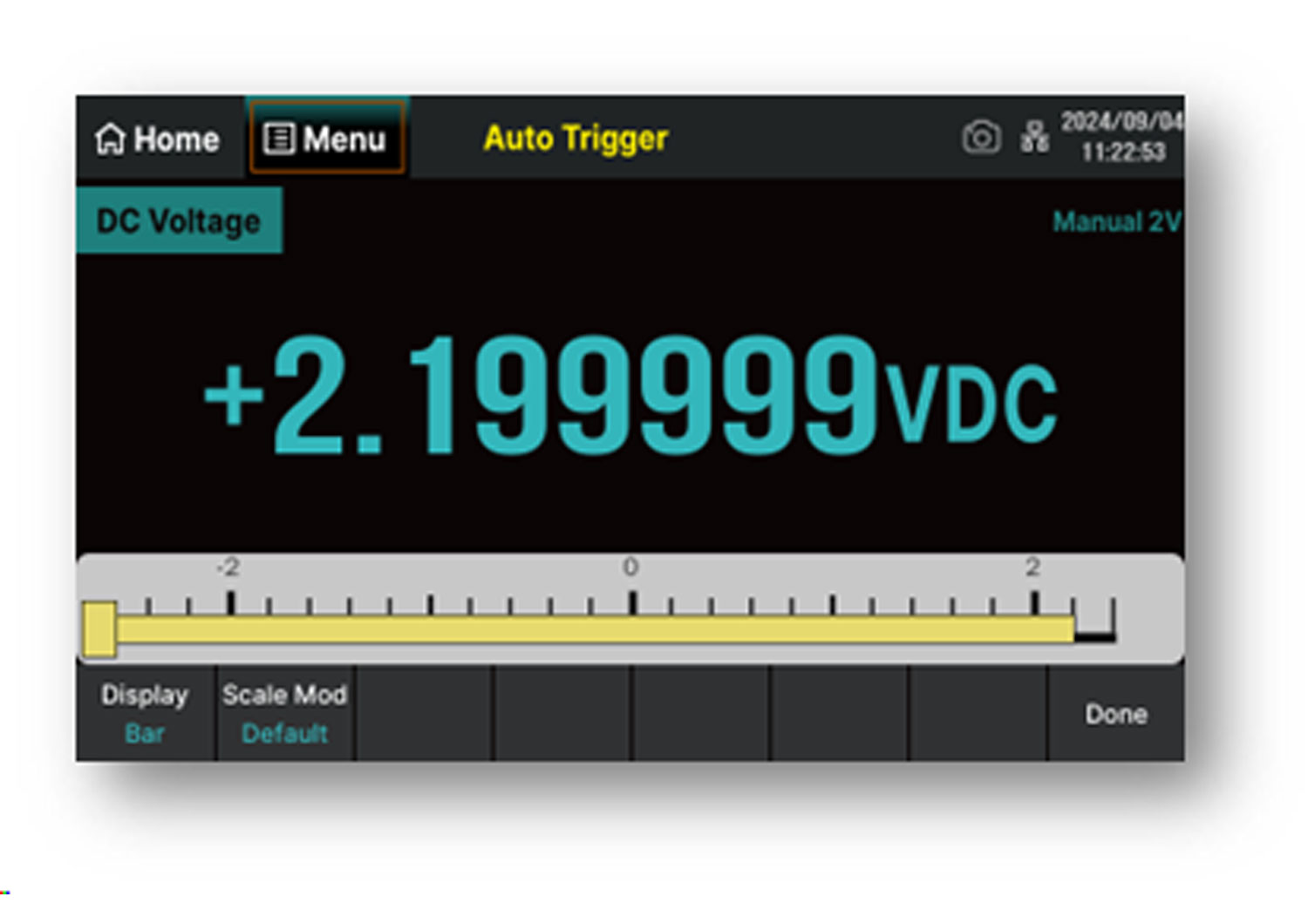

Bar Meter: Supports horizontal scaling modes: Default, Manual, or Limit-based.

Bar Meter

×

Trigger and Sample

Trigger Modes:
Auto Trigger, Single Trigger, External Trigger, Level Trigger
SDM4000A can capture one or a specified number of readings upon receiving a trigger signal. Users can configure the delay time between trigger activation and data acquisition.

Supported Sampling Modes:
Continuous Sampling
Recorder Function
Digitizer Function

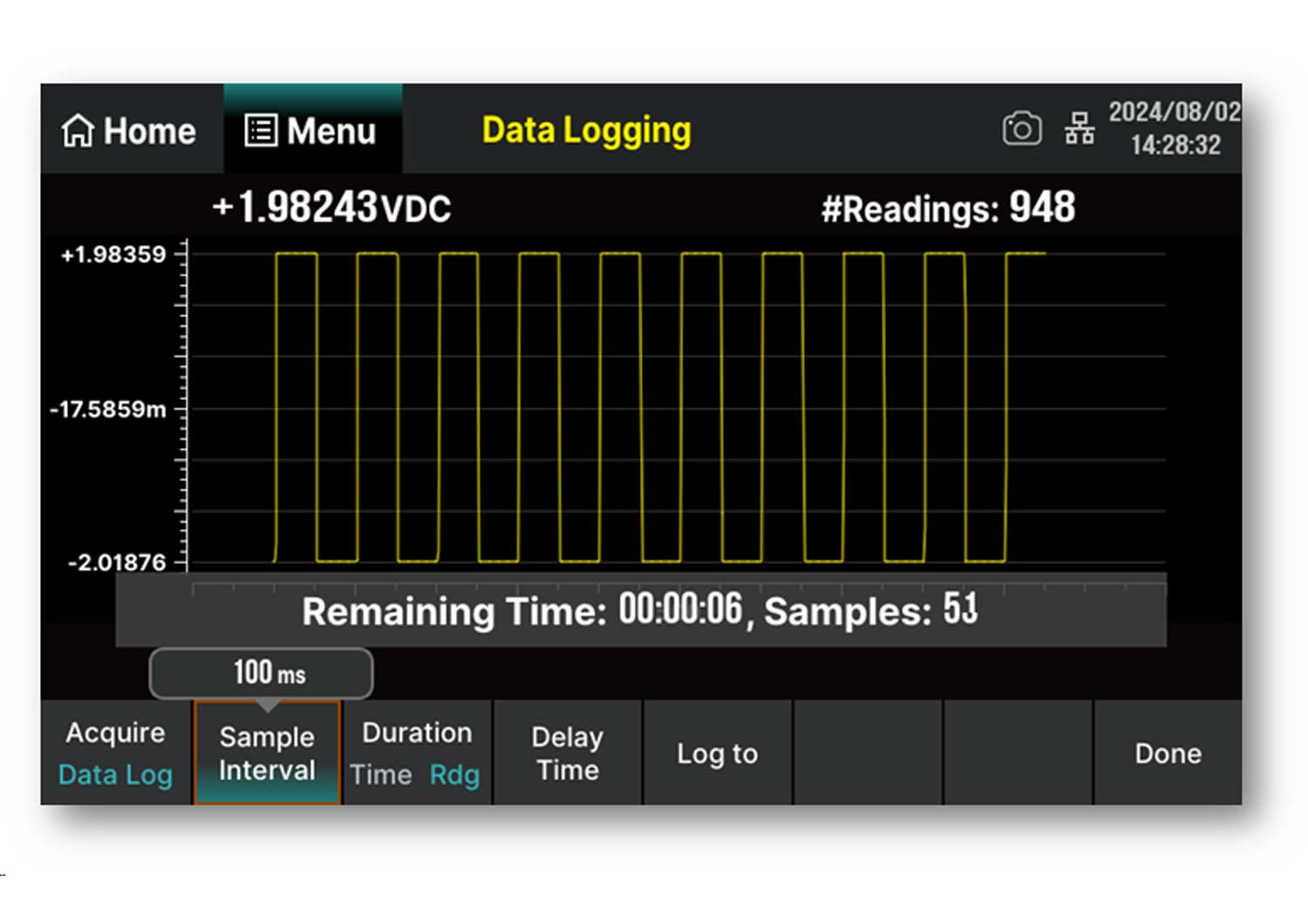

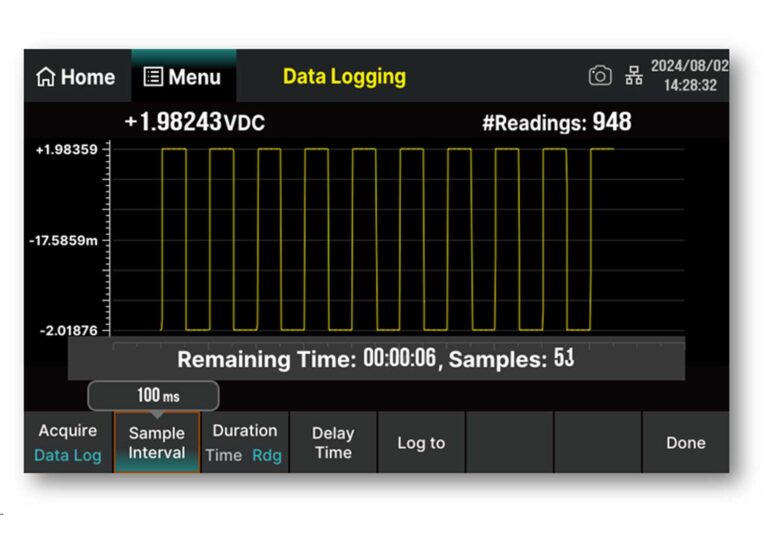

Data Logging Function

Purpose: Ideal for long-term data logging applications.
Key Specifications:
Recording Interval: 0.1 s to 3600 s
Maximum Internal Memory: 2M points
Maximum File Storage: 360M points
Maximum Duration: 100 hours
Measurable Parameters: DCV, DCI, ACV, ACI, Ω, frequency, period, temperature.
Digitiser Function

Advantages:
Outperforms oscilloscopes and spectrum analyzers in low-frequency, high-precision sampling.
Ideal for applications such as precision digital sampling and audio signal digitization.

Key Specifications:
Maximum Sampling Rate: 50 kSa/s
Single Capture Capacity: 2M points
Bandwidth: 10 kHz
Math Function

Statistics:
Calculates Max, Min, Average, Peak-to-Peak, Standard Deviation, Sample Count.

Limit Testing:
Performs Pass/Fail tests based on user-defined upper/lower thresholds.

dBm Calculation:
Computes power (0 dBm = 1 mW) across a reference resistor.

dB Calculation:
Measures relative values in decibels against a reference.

Relative Value Calculation:
Displays the difference between actual measurements and a stored reference value.

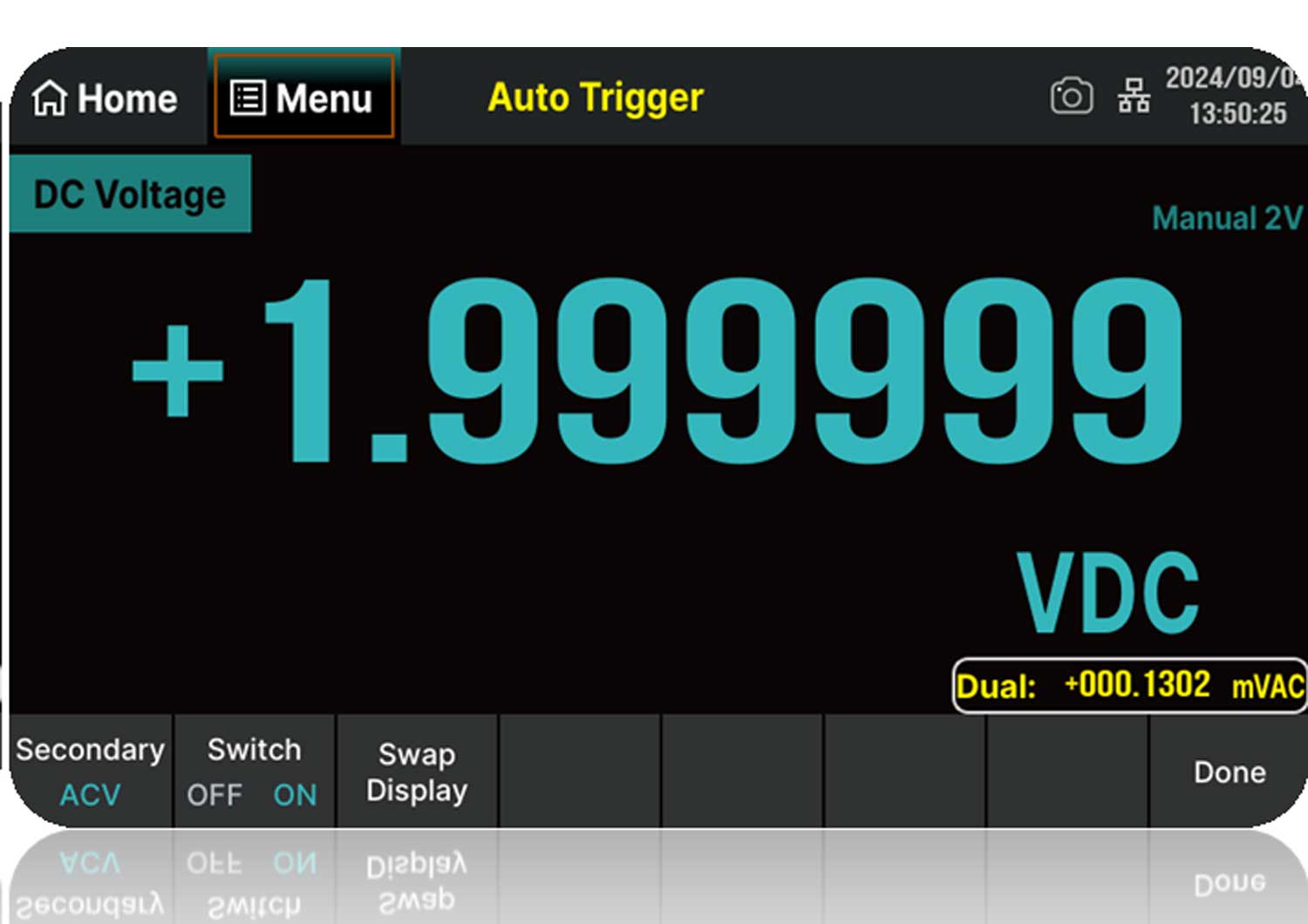

Dual Display

Function: Simultaneously displays two characteristics of the same input signal.

Advantage: Eliminates the need for additional instruments, facilitating efficient multi-parameter monitoring.

Enhanced Capability: Streamlines intricate testing and measurement workflows.

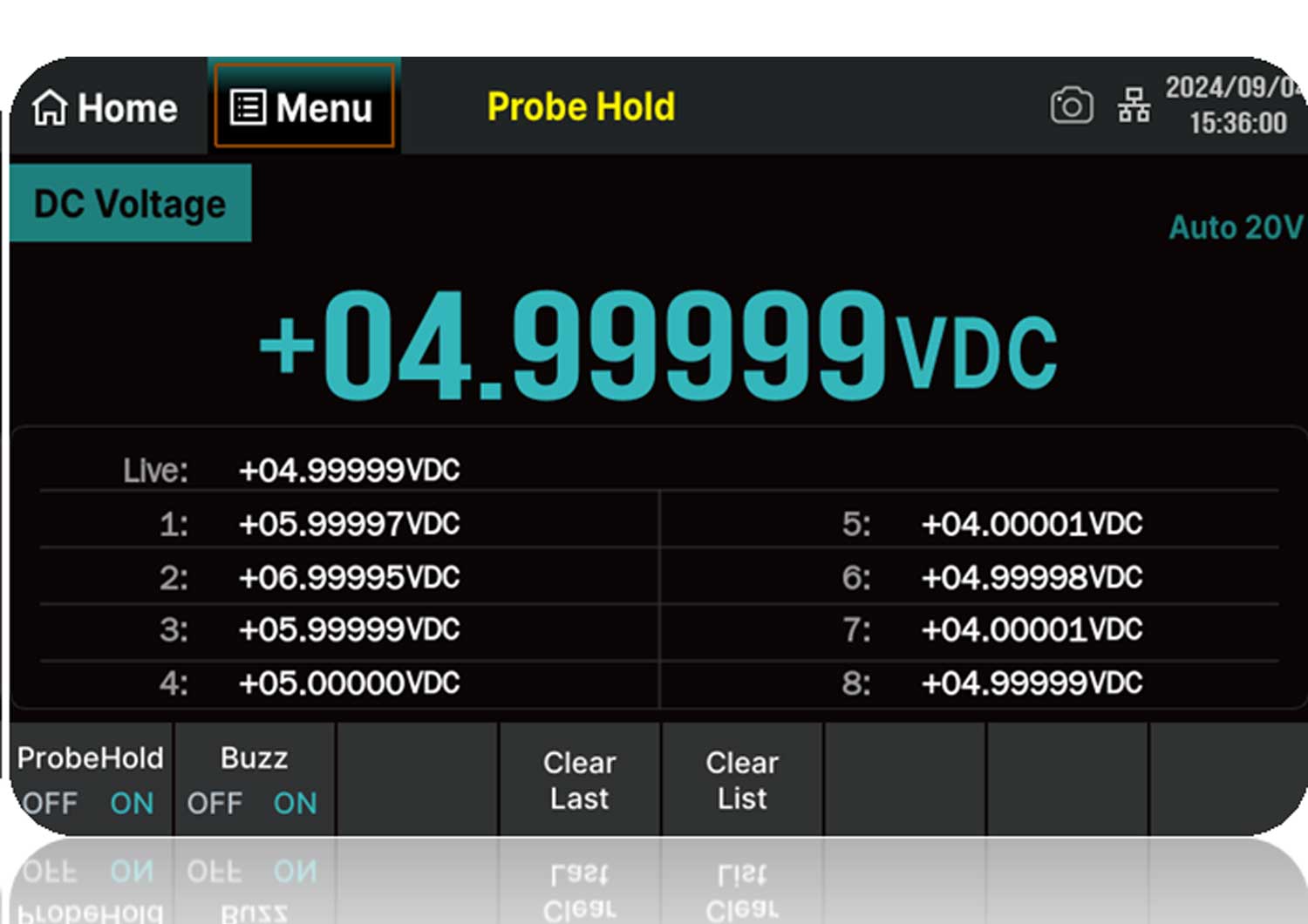

Probe Hold

Stability Alert: Triggers a buzzer when stable readings are detected, automatically displays the value on the front-panel display

Features:
Retains the latest 8 readings on-screen.
Supports multiple measurement types (e.g., DCV, ACV, resistance).
Allows users to review historical data or clear displayed readings at any time.
Storage/Recall

Store/Restore Settings: Supports saving and restoring instrument parameter files and data files in/from internal storage and external USB storage devices.

Timestamp Support: Adds timestamps to recorded readings.
Internal Storage: Up to 2M points of internal memory.
Memory Capacity: 2Gb NAND Flash storage.

File Formats:
Measurement data saved as CSV files.
Scan card configurations saved as XML files.

File Management: Users can create folders, save screenshots, and perform operations like copying, renaming, and deleting files.
Numerical Display: Observe measurement data changes intuitively.

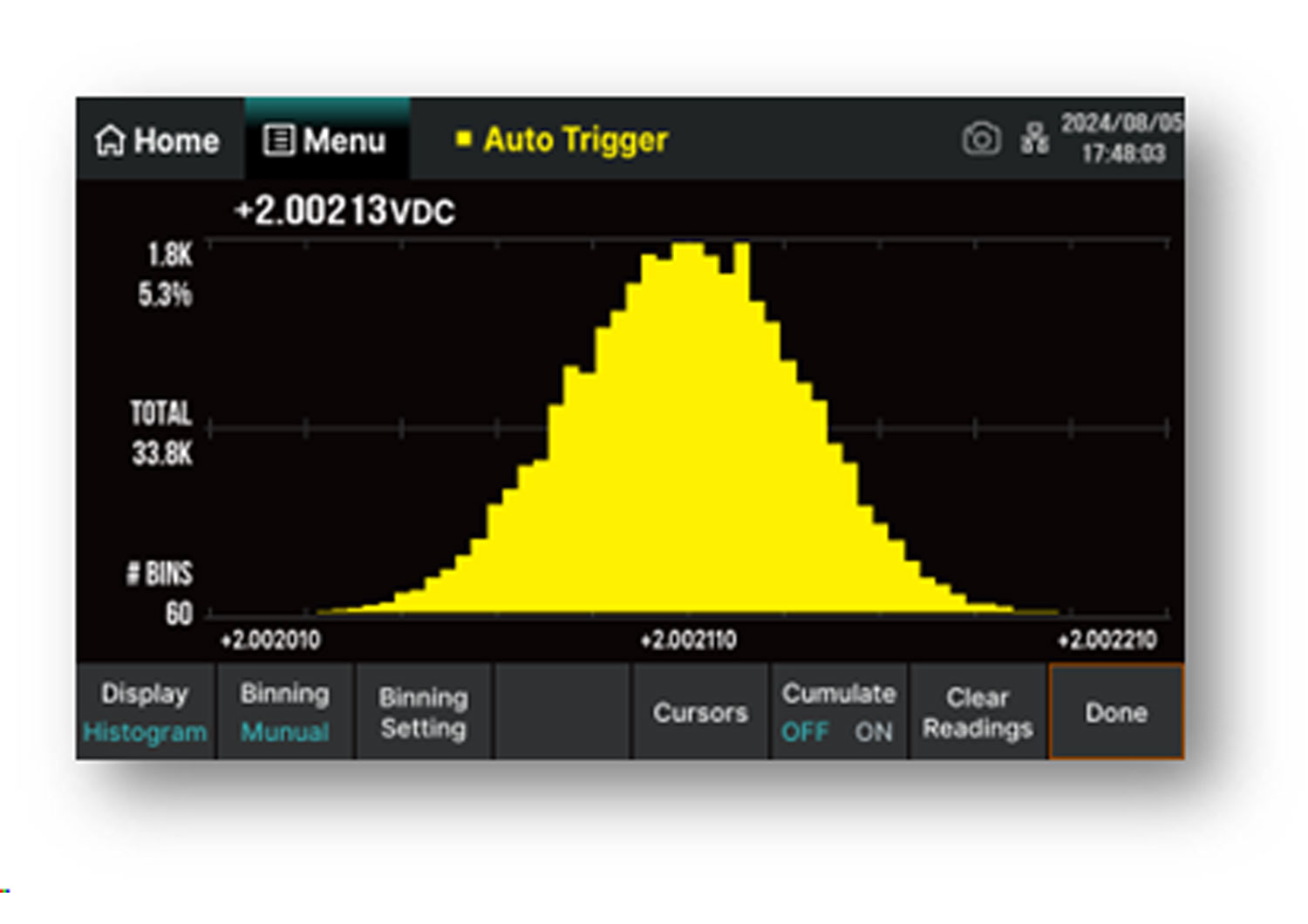

Histogram: Displays measurement data in a distribution format.
Trend Chart: Shows data trends over time in continuous measurement mode.
Bar Meter: Supports horizontal scaling modes: Default, Manual, or Limit-based.

Documentation


Power Supply
AC 100 V – 120 V 45 Hz ~ 66 Hz
AC 200 V – 240 V 45 Hz ~ 66 Hz
Consumption 30 VA max
Mechanism
Dimension
(length*width *height)		 379*260*103mm
Weight 3.8kg
Other Characteristics
Display Screen 5-inch TFT display screen with resolution 800*480. Touchable screen
Operation Equipment Full accuracy for 0°C to 50°C; Full accuracy to 40°C, 80% RH, non-condensing
Storage temperature: -20°C~70°C
Altitude: up to 2000 meters
Remote Interface LAN, USB Device, USB Host, GPIB (optional)
Programmer Language SCPI-compliant with the latest widely used multimeter command sets
Warm-up Time 90 minutes
Standard
Electromagnetic
Compatibility		 Compliant with EMC directive (2014/30/EU), compliant with or superior to IEC 61326-1:2020/EN61326-1:2021 (basic requirements)
Conducted Emission CISPR 11/EN 55011 CLASS A group 1,
150kHz~ 30MHz
Radiated Emission CISPR 11/EN 55011 CLASS A group 1,
30MHz~ 1GHz
Electro-Static
Discharge(ESD)		 IEC 61000-4-2/EN 61000-4-2 4.0 kV(touch), 8.0 kV(air)
RF Electromagnetic
Field Immunity		 IEC 61000-4-3/EN 61000-4-3 10 V/m(80 MHz to 1 GHz)
3 V/m(1.4 GHz to 2 GHz)
1 V/m(2.0 GHz to 2.7GHz)
Electrical Fast Transient
(EFT)		 IEC 61000-4-4/EN 61000-4-4 2kV (AC input port)
Surge IEC 61000-4-5/EN 61000-4-5 1kV (Line to Line)
2kV (Line to Earth)
RF Continuous
Conduction Immunity		 IEC 61000-4-6/EN 61000-4-6 3 V,0.15~ 80MHz
Voltage Dips and Short
Interruptions		 IEC 61000-4-11/EN 61000-4-11 Voltage Dips:
0% UT during 1 cycle
40% UT during 10/12 cycles
70% UT during 25/30 cyclesShort Interruptions:
0% UT during 250/300 cycles
Safety
Compliant with the Low Voltage Directive (2006/95/EC) and standard EN61010-1:2010

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
