Description
Probe set for E and H near-field measurements, 30 MHz to 3 GHz
The R&S® HZ-15 Probe Set enables engineers to quickly locate and analyse unwanted electromagnetic emissions during product development, EMC pre-compliance testing and fault finding.
The probe set contains two passive E-field probes and three passive H-field probes, each optimised for different measurement tasks. The electrically shielded magnetic field probes provide excellent spatial resolution, allowing engineers to pinpoint individual tracks, components and signal paths responsible for radiated emissions.
Suitable for use with spectrum analysers, EMI receivers and oscilloscopes fitted with a 50 Ω input, the HZ-15 is an invaluable accessory for EMC engineers developing electronic products, reducing EMC failures and speeding up the debugging process. For detecting very weak signals, the optional R&S® HZ-16 preamplifier provides an additional 20 dB of gain.
Key Features
Frequency range from 30 MHz to 3 GHz
Complete set of 2 E-field and 3 H-field probes
High spatial resolution for accurate source localisation
Electrically shielded magnetic field probes
Passive probes requiring no external power
Suitable for PCB, component and cable investigations
Compatible with spectrum analysers, EMI receivers and oscilloscopes
Optional R&S® HZ-16 preamplifier available for increased sensitivity
Supplied in a robust carrying case
Simple plug-and-measure operation
Applications
EMC pre-compliance testing
EMI troubleshooting
PCB debugging
Locating radiated emissions
Identifying noise sources
Product development
Design verification
Electronic repair and diagnostics
Contents

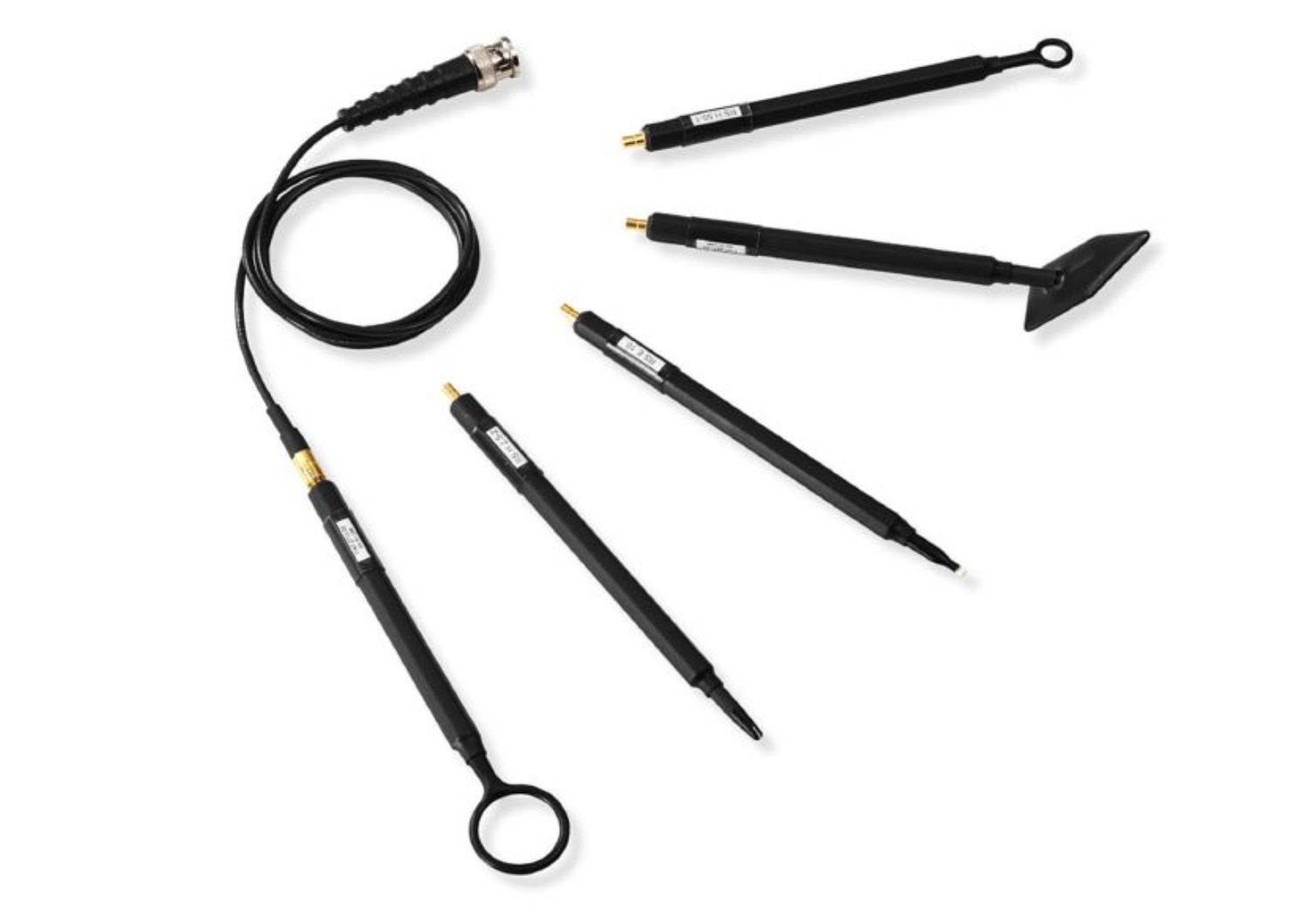

2 × E-Field Probes
RSE02 E-Field Probe
RSE10 E-Field Probe
3 × H-Field Probes
RSH400-1
RSH50-1
RSH2.5-2
1 m RF cable (BNC male to SMB female)
Protective carry case
Applications
The HZ-15 is ideal for:
Finding the source of failed EMC emissions
Measuring near-field radiation around integrated circuits
Investigating switching power supplies
Examining clock circuits
Analysing RF modules
Checking PCB layouts for EMI issues
Measuring cable radiation
Educational EMC laboratories
