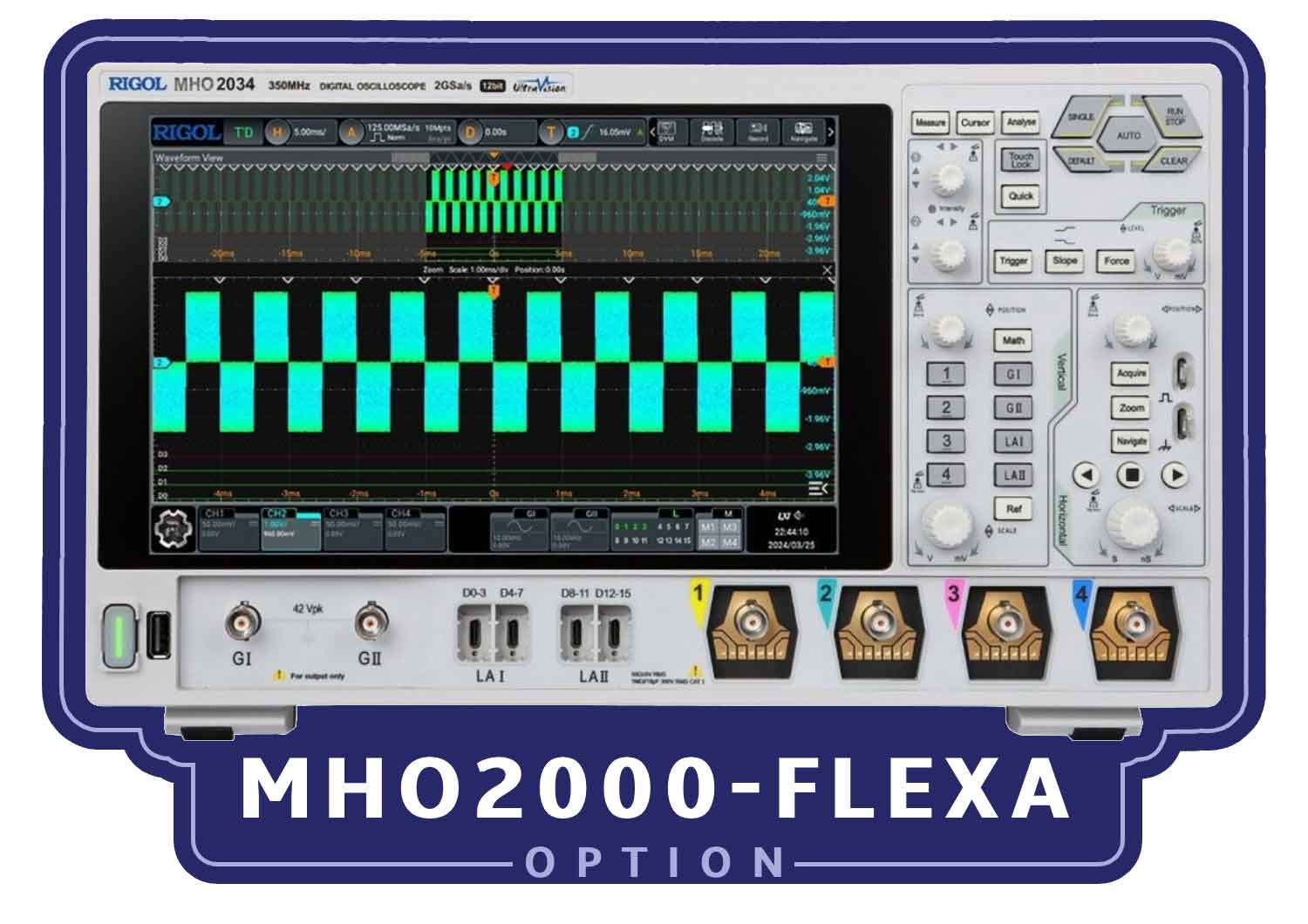

Rigol MHO2000-FLEXA software option

Description

FlexRay Serial Bus Trigger and Decode Option

Triggers on the specified position (TSS End, FSS_BSS End, FES End, DTS End), frame (null, Syn, Start, All), symbol (CAS/MTS and WUS), error (Head CRC Err, Tail CRC Err, Decode Err, and Random Err) of the FlexRay signal (up to 10 Mb/s).
Source channel: CH1 to CH4, D0 to D15.

Decodes the frame ID, PL (payload), Header CRC, Cycle Count, Data, Tail CRC, and DTS of the FlexRay bus (up to 10 Mb/s). The supported signal types include BP, BM, and RX/TX.
Source channel: CH1 to CH4, D0 to D15.
