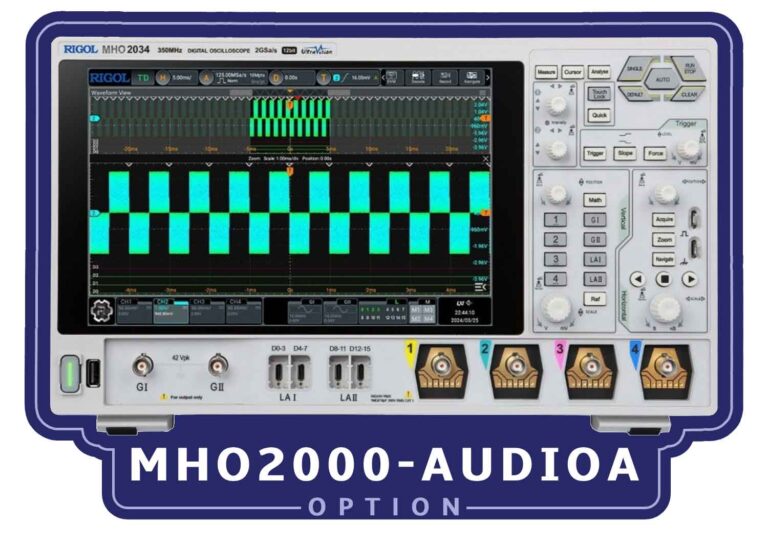

Rigol MHO2000-AUDIOA software option

Description

I2S Bus Trigger and Decode Option

Decodes I2S audio bus left channel data and right channel data, supporting 4-32 bits. The alignment modes include I2S, LJ, and RJ.
Source channel: CH1 to CH4, D0 to D15.

Triggers on 2’s complement data of audio left channel, right channel, or either channel (＝, ≠, ＞, ＜, ＜＞, ＞＜). The available alignment modes include I2S, LJ, and RJ.
Source channel: CH1 to CH4, D0 to D15.
