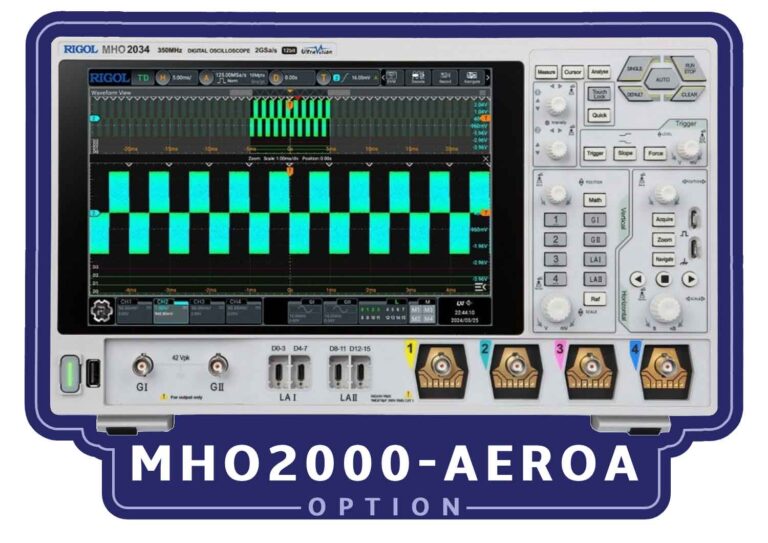

Rigol MHO2000-AEROA software option

Description

MIL-STD-1553 Bus Trigger and Decode Option

Triggers on Sync (Data Sync, Cmd/Status Sync, and All Sync), Data, RTA, RTA +11Bit, and Error (Sync Error and Check Error) of the MIL-STD-1553 bus.
Source channel: CH1 to CH4, D0 to D15.

Decodes the MIL-STD-1553 bus signal’s data word, command word, and status word (address + last 11 bits).
Source channel: CH1 to CH4, D0 to D15.
