Rigol DNA5202 2 Port, 5kHz to 20 GHz, 1 Hz Resolution Vector Network Analyser

Name: Rigol DNA5202 2 Port, 5kHz to 20 GHz, 1 Hz Resolution Vector Network Analyser
Brand: Rigol
SKU: DNA5202
Availability: BackOrder

£14869.00 (£17,842.80 inc VAT)

Available on back-order

Facebook

Post

SKU: DNA5202 Categories: Bench Vector Network Analysers, Rigol DNA5000 Series Vector Network Analysers Brand: Rigol

Description

Rigol DNA5202 Vector Network Analyser

The Rigol DNA5202 2 Port, 5kHz to 20 GHz, 1 Hz Resolution Vector Network Analyser provides various calibration methods such as frequency response, single-port, response isolation, enhanced response, full dual-port, and electronic calibration. It supports various display formats such as Log Mag, Lin Mag, SWR, Phase, Group Delay, Smith Chart, and Polar Chart. Through the connectivity with the instrument under test via the standard interfaces such as USB, LAN, and HDMI, this series can accurately measure the amp/ freq characteristics, phase/freq characteristics, and group delay characteristics of the microwave network.

While maintaining the high-performance characteristics in terms of its specifications, appearance, display effects, and software interface, the DNA5000 series features compact size, light weight, and low noise, offering you a better user experience. This series product can be widely used in the electronics, communication, and microwave fields. It is the commonly used test instrument in the R&D and batch production for the industry and universities.

Features

Frequency range: 5 kHz to 20 GHz
Number of Ports: 2
Frequency resolution 1 Hz
Max. output power 10 dBm
High dynamic range 127 dB (typ.)
Trace noise: 0.005 dB
IFBW: 1 Hz to 10 MHz
Compatible with the mechanical calibration kit and the Ecal electronic calibration kit, supporting various calibration types (SOLT, Response Short, Response Open, OSL, Enhanced Response 1 to 2, Response Through)
Integrates S-parameters, impedance, VSWR, TDA, fixture embedding/de-embedding, antenna test, and etc.
Portable and lightweight design, with the compact size of (358.1 mm x 214.8 mm x 121.4 mm) and light weight of 5.3 kg
10.1'' 1280x800 HD touch screen
Supports LAN, USB Device, USB Host, and HDMI interfaces
Supports standard SCPI instruction sets
Supports Web Control for remote operation
Supports both physical key operation and touch screen operation, allowing you to use an externally connected keyboard and mouse to input values

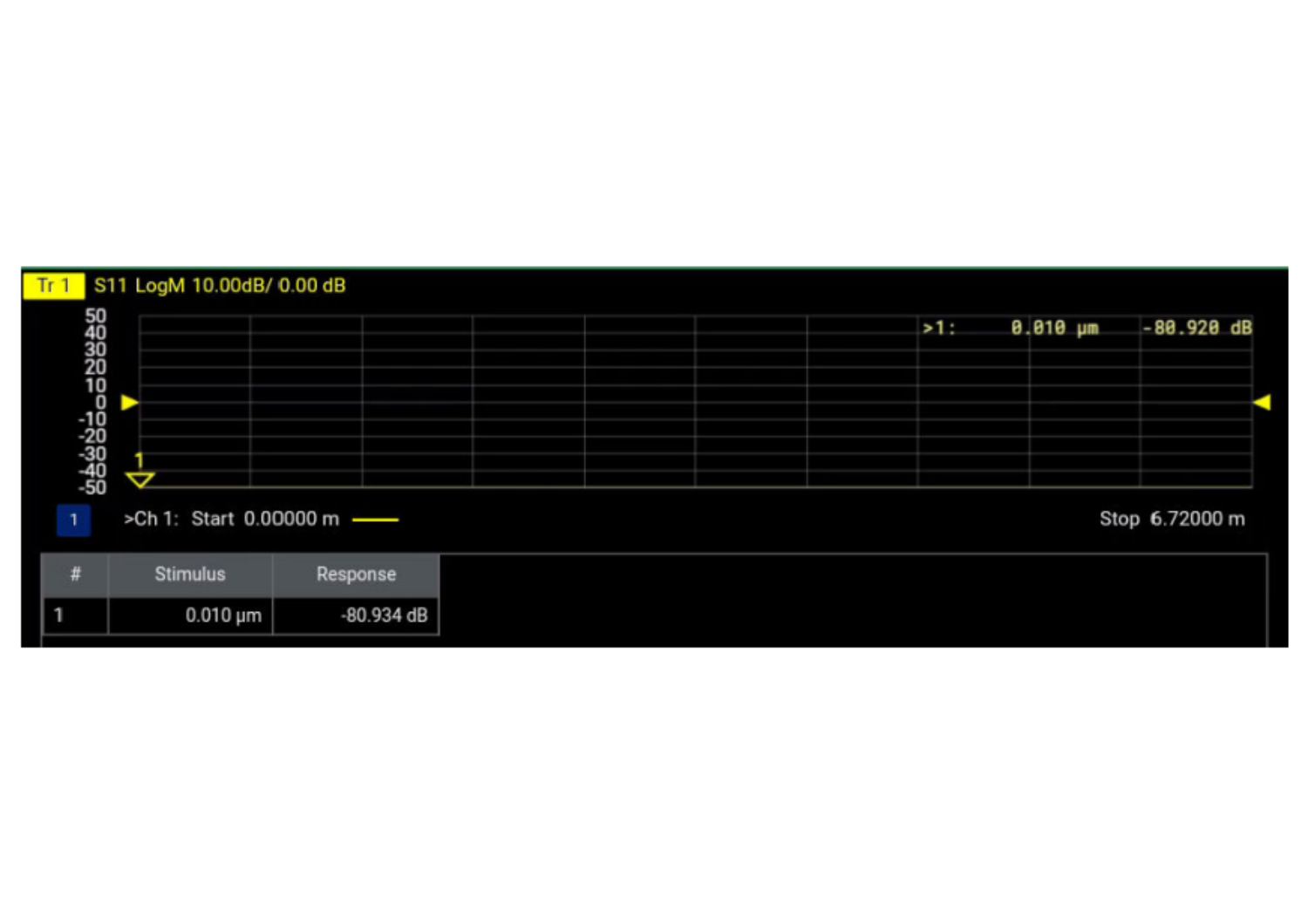

Product Images

Reliable Performance: The Core of Your Workbench<br />
<br />
5 kHz to 26.5 GHz (2 Ports): Covers diverse needs from components to high-speed interconnects.<br />
>120 dB Dynamic Range: Combines with low noise to ensure precision and stability.<br />
Fixture Removal & De-embedding: Eliminates accessory effects to reveal true DUT performance.<br />
All-in-One Efficiency: Integrated Limit Testing, TDR, and more for R&D and production.

Reliable Performance: The Core of Your Workbench Learn more...

Complete Ecosystem: One-Stop Reliable Testing<br />
<br />
RIGOL offers more than just an instrument—we provide a complete solution. Instantly equip your bench with our comprehensive accessories:<br />
<br />
High-Precision Mechanical Cal Kits<br />
Electronic Cal Kits<br />
Lab-Grade RF Cables

Complete Ecosystem: One-Stop Reliable Testing Learn more...

Standard Hardware Accessories

UK Power Cord

Optional Software Accessories

Optional Hardware Accessories

Documentation

DNA6000 Programming Guide

Display
LCD	10.1-inch capacitive multi-touch screen, gesture-enabled operation
Display Resolution	1280*800
Power Supply
Power Supply	100 Vrms to 240 Vrms, 50 Hz/60 Hz
Power Consumption	80 W (DNA5042, DNA5082) 100 W (DNA5142, DNA5202, DNA5262)
Fuse	5 A, T degree, 250 V
Operating System
Operating System	Linux
Mass Memory	Internal Storage	256GB
Mass Memory	External Storage	USB storage device (not supplied)
Environment
Temperature Range	Operating	0°C~40°C
Temperature Range	Storage	-20°C~70°C
Humidity Range	Operating	0°C to 30°C: ≤95%RH 30°C to 40°C: ≤75%RH
Humidity Range	Non-Operating	Below +40°C: 5% to 90%, without condensation +40°C to +60°C: 5% to 80%, without condensation +60°C to +70°C: 5% to 40%, without condensation
Altitude	Operating Height	Below 2000 m (6561.68 feet)
Electromagnetic Compatibility and Safety
Electromagnetic Compatibility (EMC)	Anti-interference conforms to specifications in EMC Directive 2014/30/EU;
	EMC RF and emission limits conform to CISPR11/EN 55011, Group 1, Class A
	IEC61000-4-2:2008/EN61000-4-2	±4.0 kV (contact discharge), ±8.0 kV (air discharge)
	IEC61000-4-3:2002/EN61000-4-3	3 V/m (80 MHz to 1 GHz); 3 V/m (1.4 GHz to 2 GHz); 1 V/m (2.0 GHz to 2.7 GHz)
	IEC61000-4-4:2004/EN61000-4-4	1 kV power line
	IEC61000-4-5:2001/EN61000-4-5	0.5 kV (phase-to-neutral voltage); 1 kV (phase-to-earth voltage); 1 kV (neutral-to-earth voltage)
	IEC61000-4-6:2003/EN61000-4-6	3 V, 0.15 MHz-80 MHz
Safety	EN 61010-1, IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1
Mechanical Dimensions
Dimensions (W x H x D)	358.1 mm x 214.8 mm x 121.4 mm 14.1-inch x 8.45-inch x 4.8-inch
Rack Mount Kit	5U
Weight	Mechanical Calibration Kit Excluded	Package Excluded: < 5 kg (11.02 lb)
Weight	Mechanical Calibration Kit Excluded	Package Included: < 7 kg (15.43 lb)
Warranty and Calibration
Recommended Calibration Interval	18 months
Warranty	Three years for the mainframe, excluding accessories.
