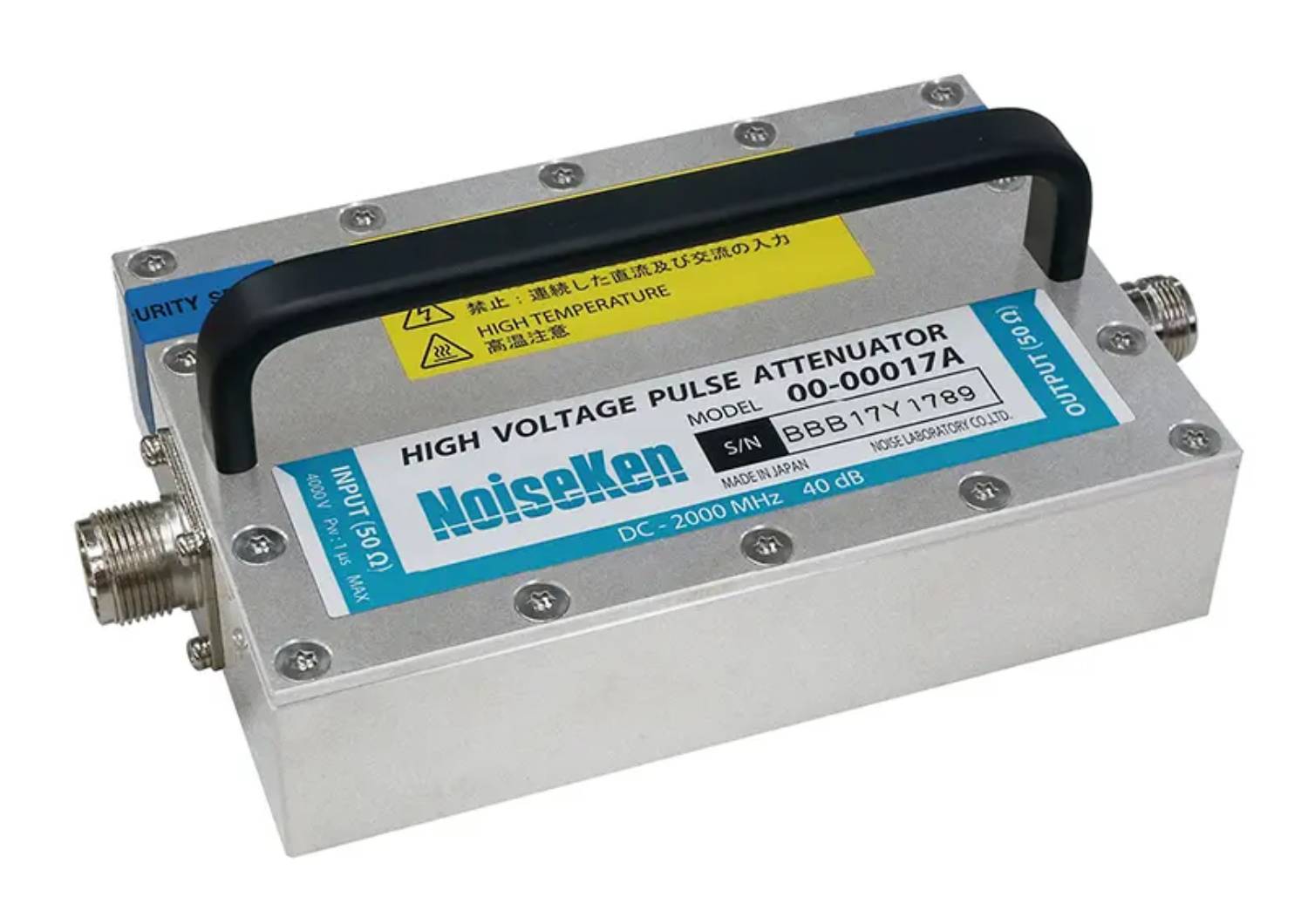

Noiseken Attenuator for waveform check 00-00017A

Description

Attenuator for waveform check

Attenuation rate DC～2GHz：40dB（100：1）
Input pulse peak voltage 4000V MAX
Tolerable continuous
pulse examples
Repetition Frequency：≦5 kHz
Burst duration：≦15 ms
Burst period：≧300 ms、
（Assuming IEC 61000-4-4 pulse waves）
Input impedance 50Ω　(50Ω±1% at DC)
Output impedance 50Ω　(50Ω±1% at DC)
Interface connectors INPUT：HN(F)　OUTPUT：N(F)
Dimension/ Weight W154.5mm×D105mm×H37mm
Approximately 1350g
