Description

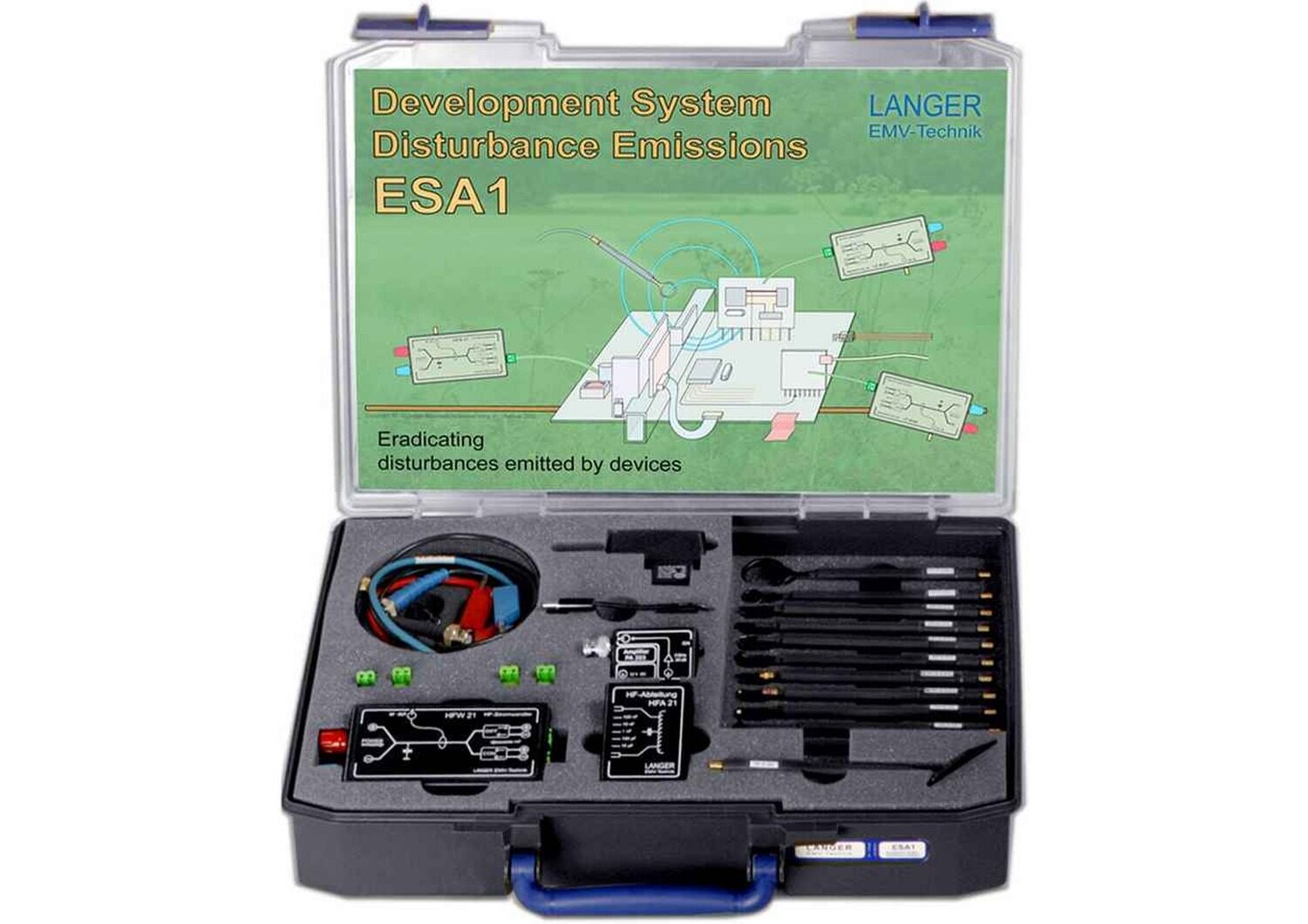

Langer EMV-Technik ESA1 set Emission Development System
The ESA1 is a system of EMC tools for measuring the interference of assemblies and devices. The CS-ESA software allows the developer to quickly and comprehensively suppress interference affecting the DUT. Interference measurements taken during the development stage with ESA1 are proportional to the results from far-field measurements or from measurements with artificial networks. With the ESA1 tools, disturbance sources can be localised, effects detected, and EMC measures individually determined. The effects of improvements implemented by ESA1 are proportional to the results from far-field measurements. ESA1 is designed for use at the developer’s workplace.
Scope of Delivery
- CS-ESA set, ChipScan-ESA Software / USB
- Dongle, Licence Dongle
- HFW 21, RF Current Transformer
- HFA 21, RF Bypass
- Z23-1 set, Shielding Tent (900 x 500 x 400) mm
- PA 203 BNC, Preamplifier 100 kHz up to 3 GHz

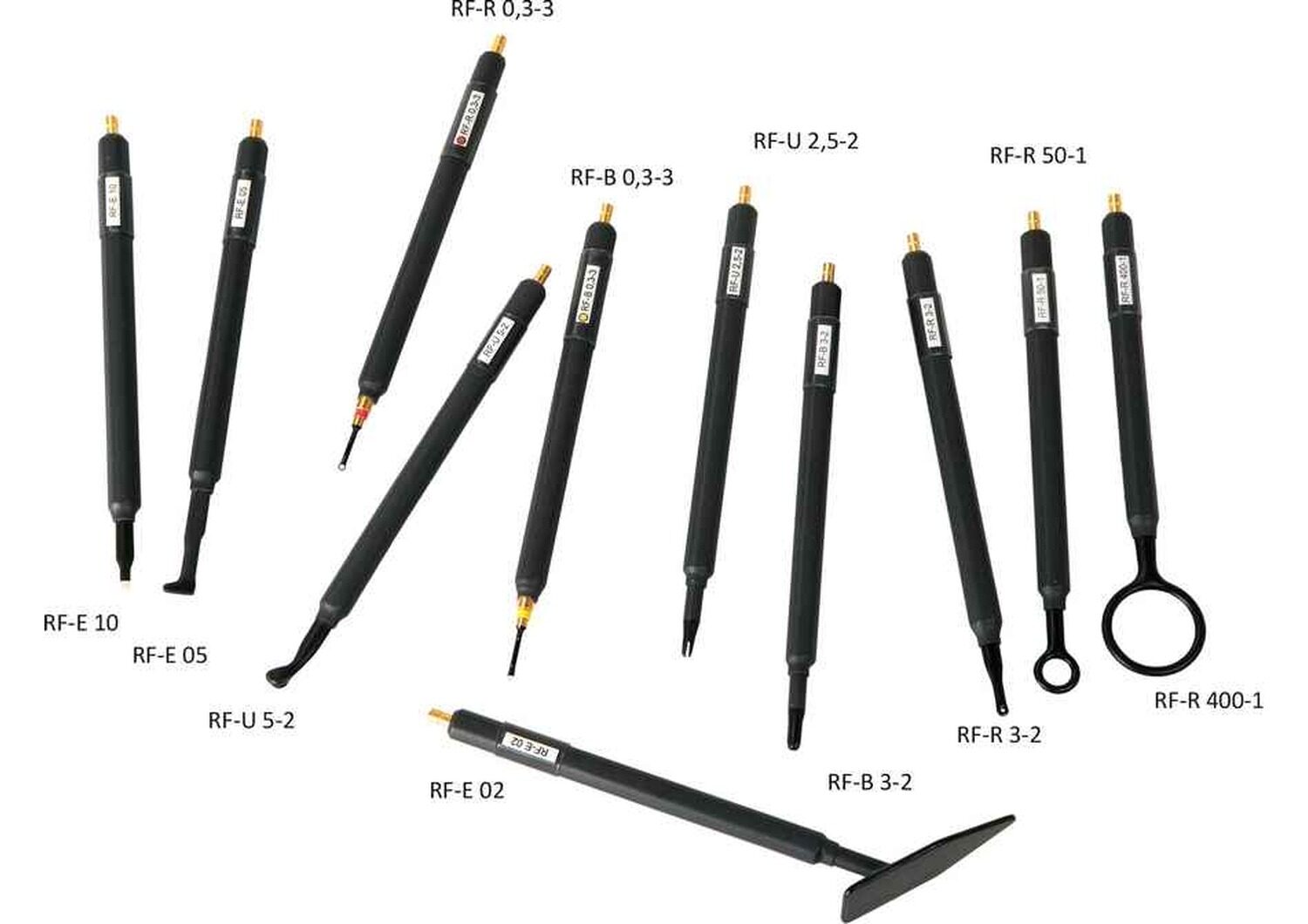

- RF-B 0.3-3, H-Field Probe mini 30 MHz up to 3 GHz
- RF-B 3-2, H-Field Probe 30 MHz up to 3 GHz
- RF-E 02, E-Field Probe 30 MHz up to 1.5 GHz
- RF-E 05, E-Field Probe 30 MHz up to 3 GHz
- RF-E 10, E-Field Probe 30 MHz up to 3 GHz
- RF-R 0.3-3, H-Field Probe mini 30 MHz up to 3 GHz
- RF-R 3-2, H-Field Probe 30 MHz up to 3 GHz
- RF-R 50-1, H-Field Probe 30 MHz up to 3 GHz
- RF-R 400-1, H-Field Probe 30 MHz up to 3 GHz
- RF-U 2.5-2, H-Field Probe 30 MHz up to 3 GHz
- RF-U 5-2, H-Field Probe 30 MHz up to 3 GHz
- ESA1 acc, Accessories
- NT FRI EU, Power Supply Unit
- ESA1 case, System case
- ESA1 m, User Manual
Langer ESA1 Set Datasheet
