We’re proud to share that our latest announcement on the powerful new Tekbox TBVNA-6000 has been featured by several leading electronics and engineering publications:
These features highlight the growing recognition of the TBVNA-6000’s versatility and performance across both RF and low-frequency applications
🎬 Application Videos
🧪 Test from 0.1 Hz to 6 GHz — One Instrument, Total Coverage

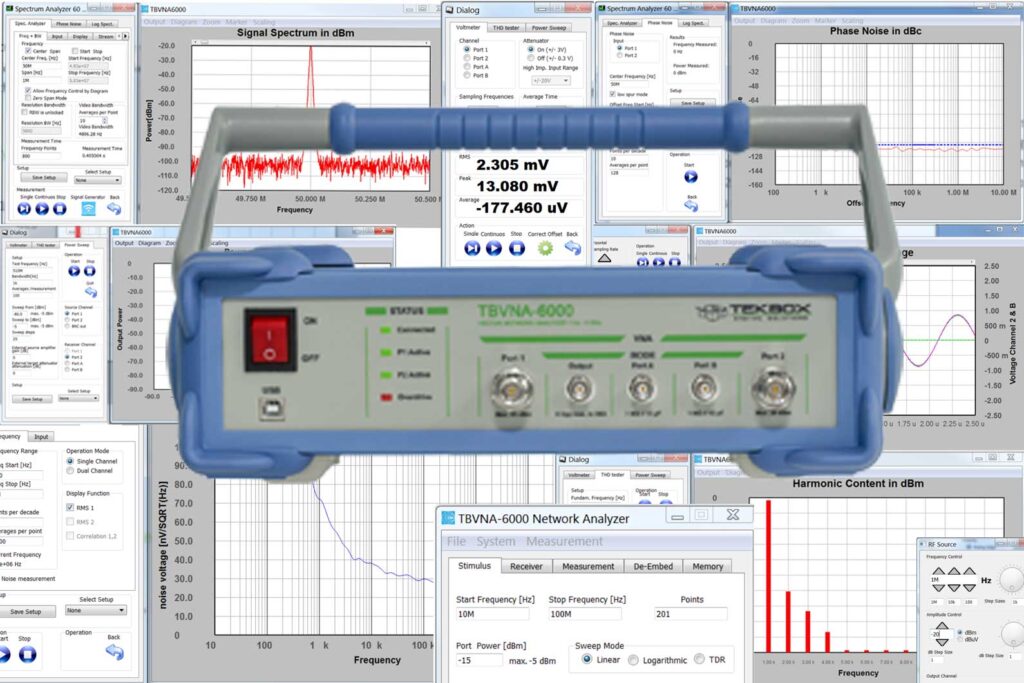

As the official UK distributor for Tekbox, we at Telonic Instruments are excited to offer the TBVNA-6000, a two-port Vector Network Analyser that delivers reliable and accurate measurements across an extraordinary frequency range — from 0.1 Hz all the way to 6 GHz.
This instrument is ideal for engineers working across analogue, RF, and microwave domains, and comes packed with measurement tools that eliminate the need for multiple separate devices.
⚙️ Key Features
- Frequency Range: 0.1 Hz – 6 GHz
- Signal Generator: 0.1 Hz – 6 GHz, 0.1 Hz resolution
- Four Independent Measurement Channels for fast two-port analysis
- DC-coupled Active VSWR Bridges for accurate measurements down to 1 Hz
- Bode Analyzer: 0.001 Hz – 500 MHz (option included free until 31.12.2025)
- Four-Channel Oscilloscope:
- 60 MHz bandwidth
- 125 MS/s sample rate
- 14-bit resolution
- 2 × 50 Ω and 2 × 1 MΩ inputs
- Dual-Channel Spectrum Analyzer:
- DC – 6 GHz
- DC – 60 MHz unambiguous range
- Active sideband suppression and cross-correlation mode
- Additional Tools:
- Power sweep measurements
- Wideband power/voltage readings
- THD analyzer
- Phase noise analyzer
- General noise and Bode measurements
- 2 × 1 MΩ // 15 pF, ±20 V inputs for gain-phase and DC testing
🎁 Free Bode Analyser Option (Limited Time)
Tekbox is currently including the Bode Analyser hardware option free of charge with every TBVNA-6000 purchased before 31st December 2025 — a fantastic opportunity for engineers who need low-frequency gain/phase analysis in the same platform as their RF measurements.
🧰 Software Tools Built In
The TBVNA-6000 comes equipped with a range of integrated software utilities:
- Vector network analysis
- Spectrum analyzer
- Four-channel oscilloscope
- THD, noise, and phase noise analyzers
- Bode plot generator
- Power sweep control
All of these tools are accessible through an intuitive PC interface, making it easier than ever to handle comprehensive RF and low-frequency testing in one compact solution.
💼 Available Now from Telonic Instruments
🔍 Want to learn more?
Visit the TBVNA-6000 product page for detailed specs, brochures, and request options.
Or:
📞 Ready to buy or request a demo?
Contact us here or request a quote.
