Introducing the Siglent SDG3000X Series Function Generators!

Posted on: October 6th, 2025 by Kane Brady
Slide
SDG3000X Series
Function/Arbitrary Waveform Generators

– Output Frequency: 80/160/200 MHz
– Arbitrary Waveform Length: 40Mpts
– Vertical Resolution: 16-bit
– Sampling Rate: 1.2 GSa/s
– Display: 7″ Touch Screen

The Siglent SDG3000X Series Arbitrary Waveform Generator delivers high-performance signal generation for advanced testing environments — from high-speed communication systems to power semiconductor evaluation. With up to 200 MHz output frequency, 40 Mpts arbitrary waveform length per channel, and 1.2 GSa/s sampling rate, the SDG3000X provides exceptional waveform accuracy and clarity.

Equipped with a 7-inch capacitive touchscreen and an intuitive interface, it’s designed for both bench and automated system integration, supporting applications in communications, semiconductors, renewable energy, and academic research.

High-Fidelity Waveform Generation

Combining EasyPulse and TrueArb technologies, the SDG3000X sets a new benchmark for signal purity and control, overcoming many of the limitations found in traditional DDS generators.

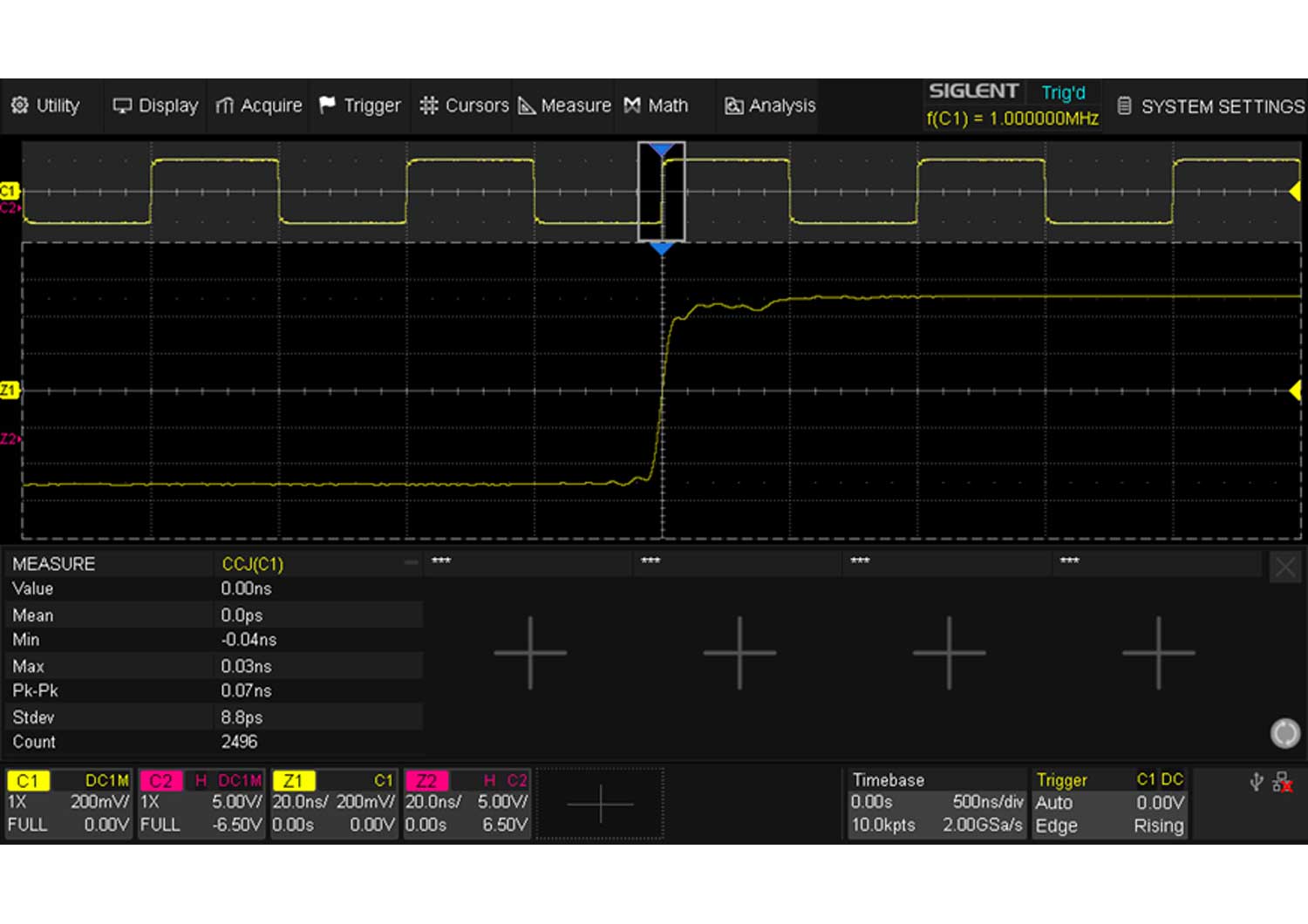

  • EasyPulse: Generates pulses as narrow as 8 ns with fast, stable edge performance across frequencies. Edge timing and pulse width can be fine-tuned, making it ideal for semiconductor switching and digital circuit tests.

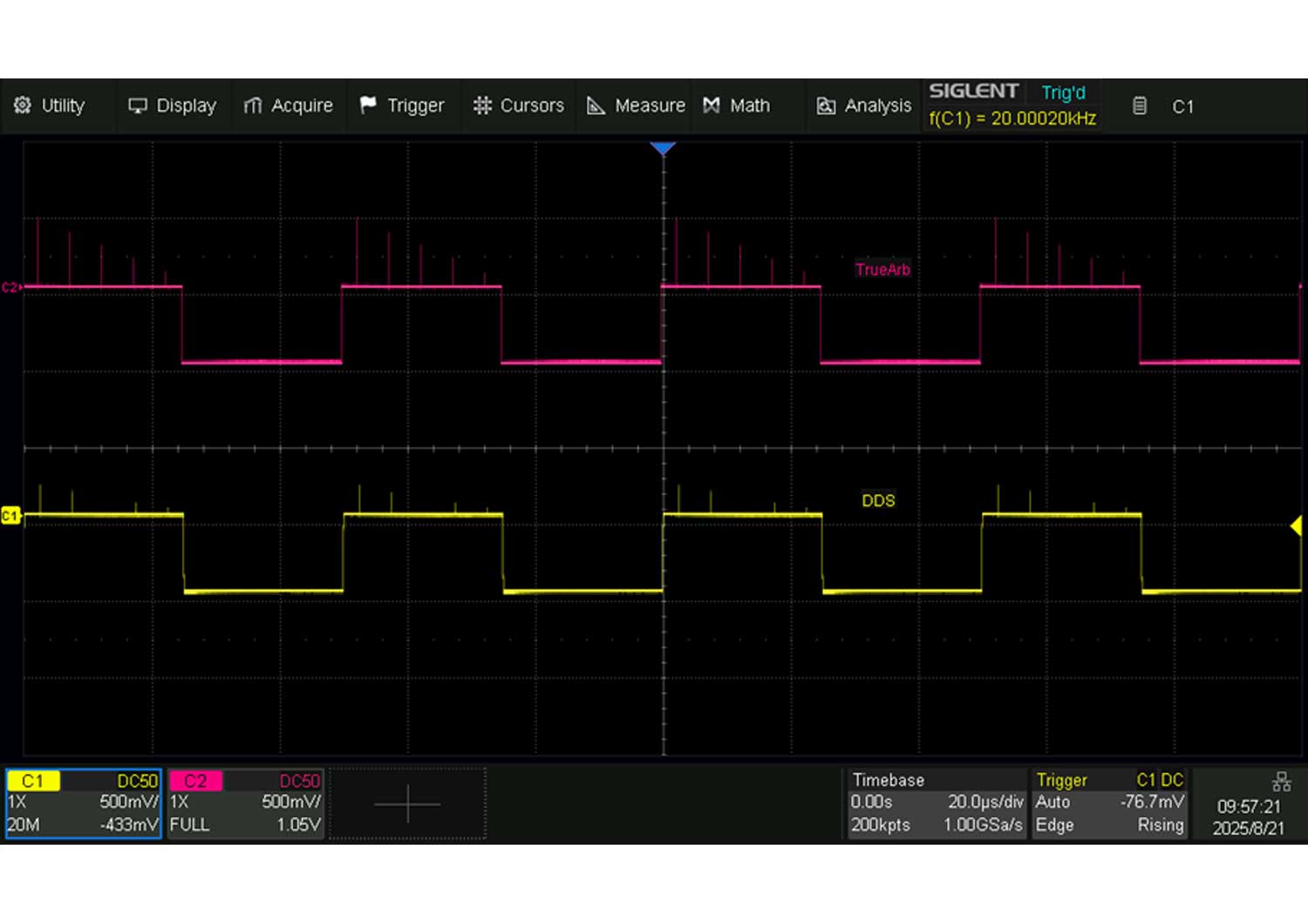

  • TrueArb: Offers true point-by-point generation across 10 mSa/s to 600 MSa/s, maintaining ultra-low jitter (as low as 150 ps) and THD below 0.075% for superior signal fidelity.

Why it matters: In precision applications, waveform integrity defines measurement reliability. By combining low jitter with advanced pulse shaping, the SDG3000X enables engineers to replicate real-world conditions with confidence.

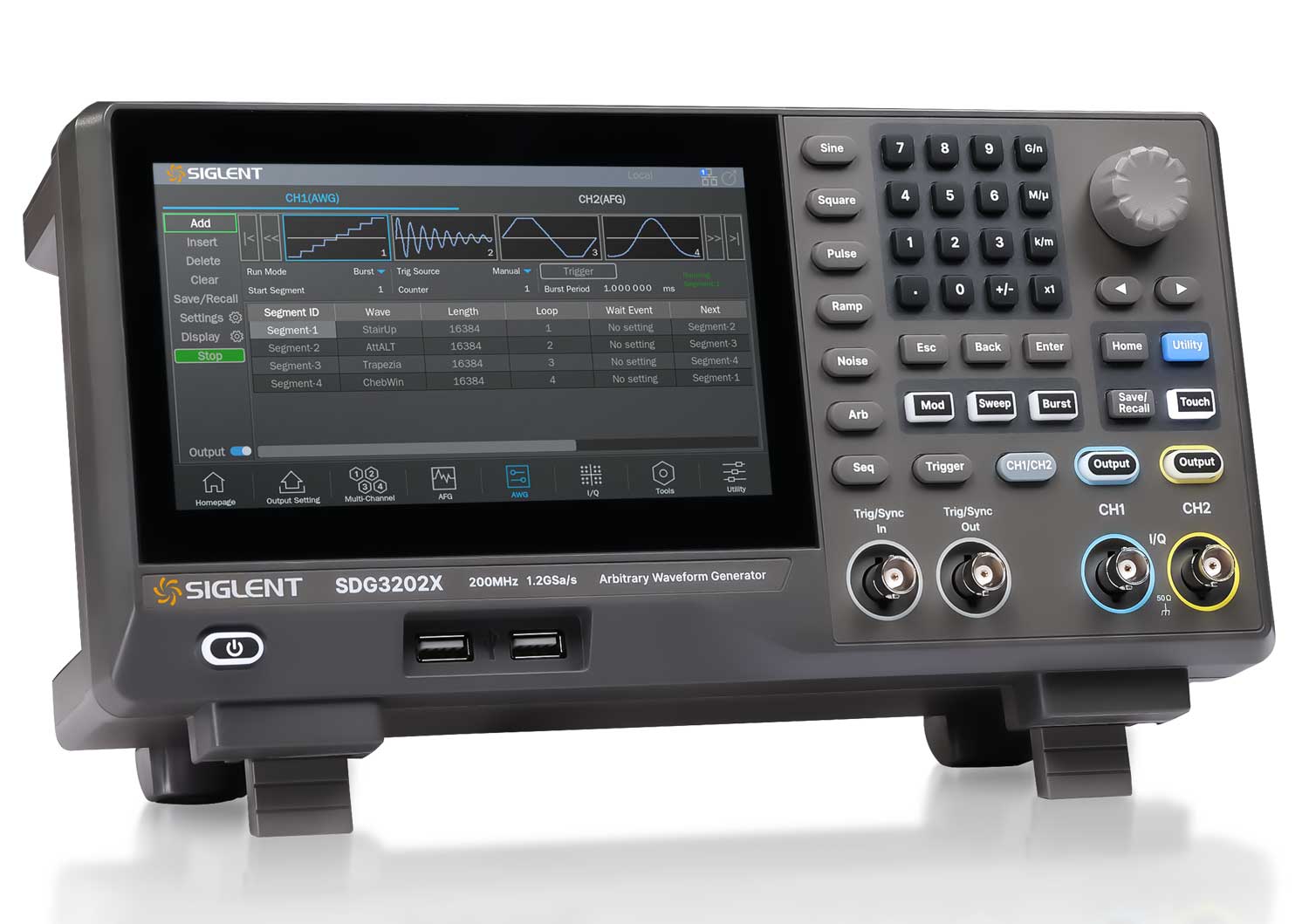

SDG3000X Front Panel & Display

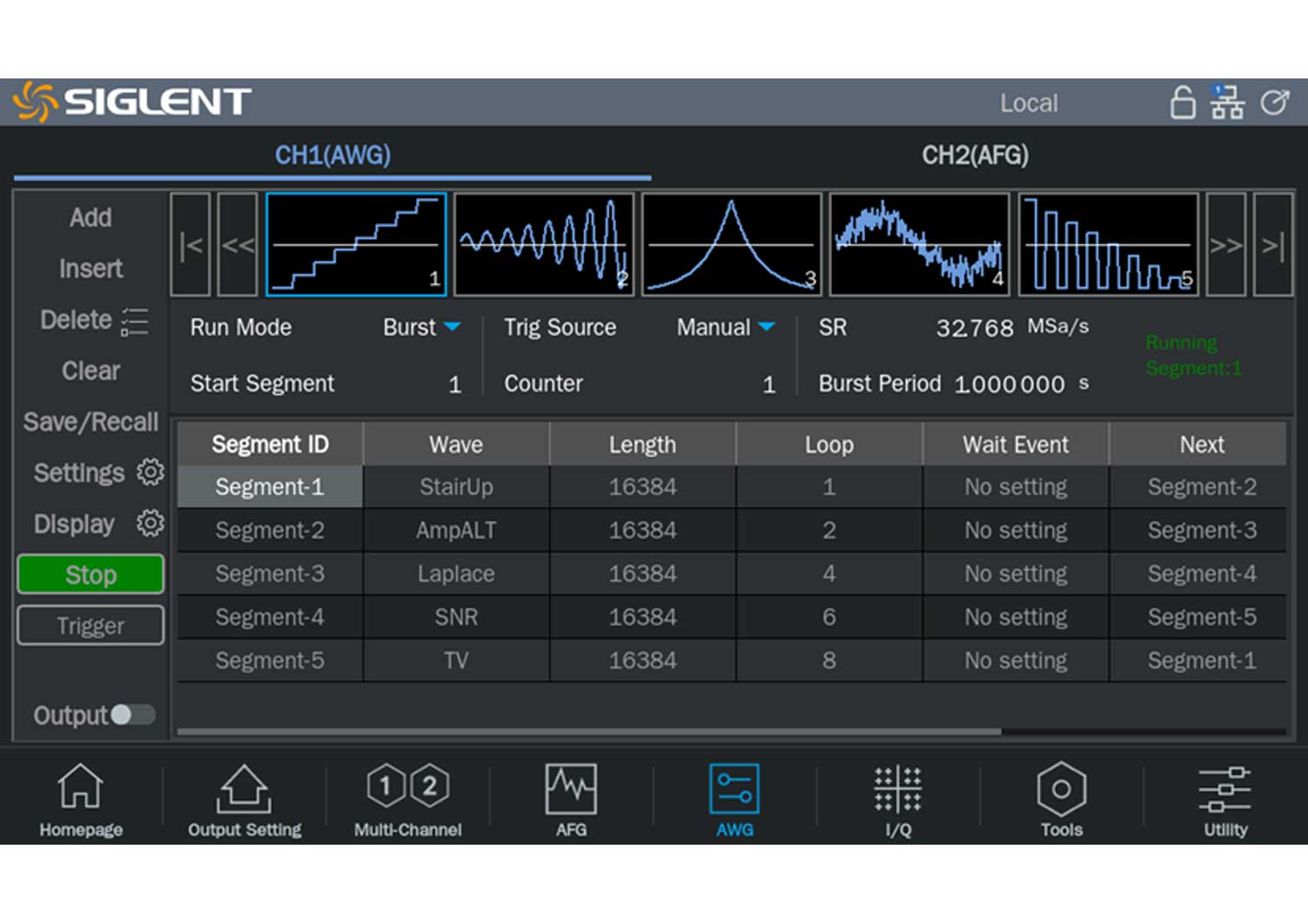

SDG3000X Advanced Arbitrary and Complex Signal

Advanced Arbitrary and Complex Signal Generation

With 196 built-in waveforms and sequence mode capabilities, users can create and repeat intricate signal patterns. The SDG3000X supports PRBS signals up to 120 Mbps and a wide range of modulations, including:

  • AM, DSB-SC, FM, PM, FSK, ASK, PSK, PWM
  • Baseband and IF IQ signal generation from 250 to 50 MSymb/s
  • Comprehensive Sweep and Burst modes for R&D and production test setups
SDG3000X Front Panel & Display

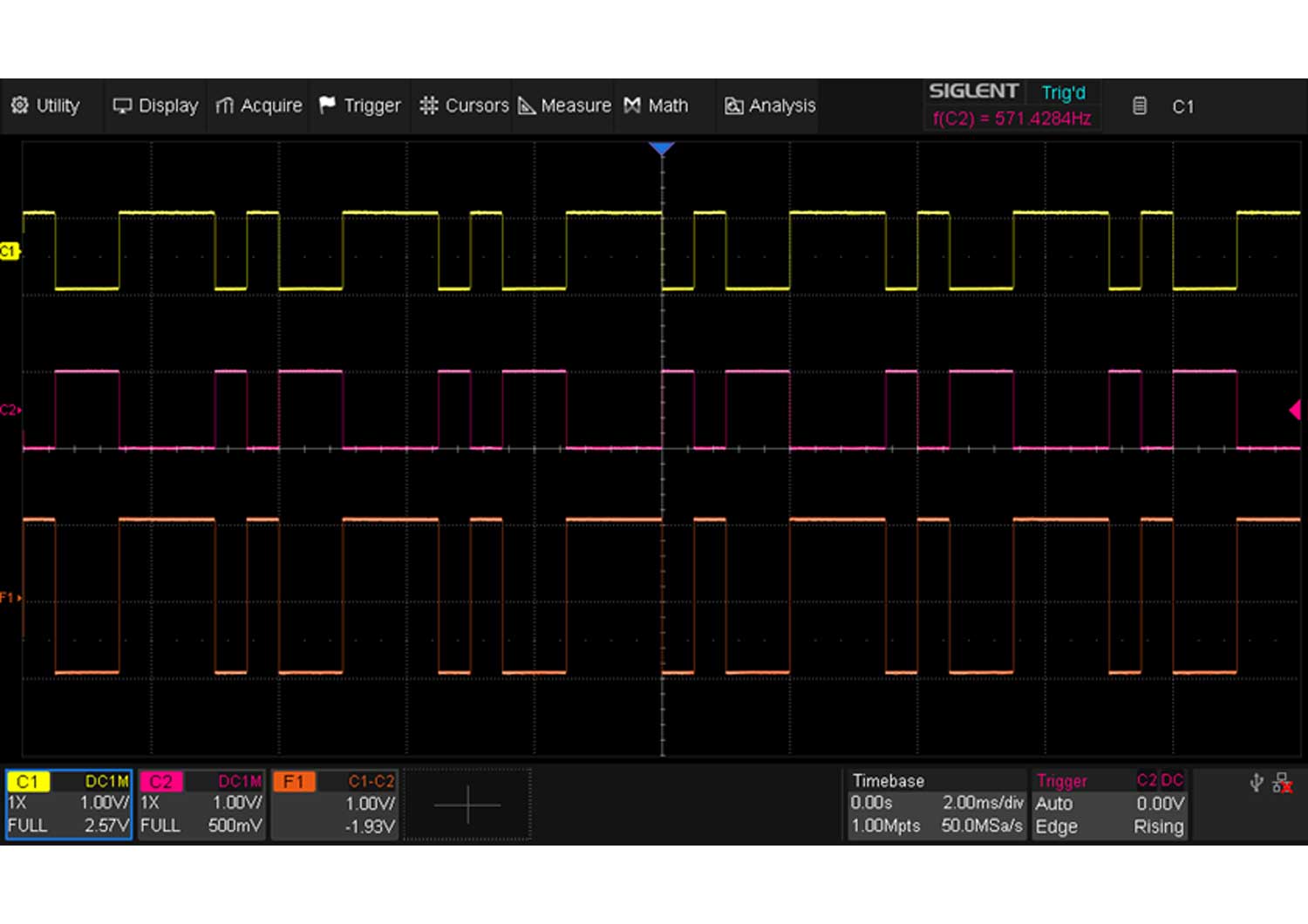

SDG3000X Advanced Arbitrary and Complex Signal

Precision in Power Semiconductor Testing

For engineers performing double-pulse testing of IGBTs or SiC MOSFETs, the SDG3000X delivers tight synchronization and precise channel tracking for pulse width and interval control. This enables accurate characterization of switching losses and conduction behavior under realistic operating conditions.

Automation-ready: The SDG3000X integrates easily into automated test systems via USB, LAN, or GPIB, with oscilloscope synchronization for seamless data correlation and efficiency gains.

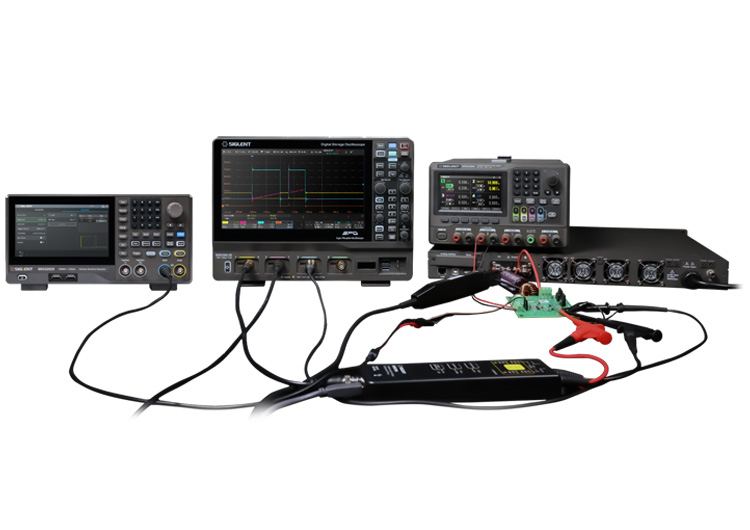

SDG3000X in Semiconductor Test Setup

Smart User Experience

Its 7-inch touchscreen simplifies waveform editing, while support for MATLAB and Python scripting enhances automation and control. A built-in high-precision frequency counter and an integrated WebServer allow remote access and instrument management from any connected device.

Summary — Fidelity Meets Flexibility

The Siglent SDG3000X series combines performance, precision, and usability in a compact bench instrument. Whether developing semiconductor devices, characterizing communication components, or teaching advanced electronics, the SDG3000X provides a reliable, feature-rich platform to accelerate innovation.

SDG3000X Product Overview
