Unmatched performance with bandwidths from 100 MHz - 1 GHz
World’s fastest oscilloscopes with 4.5 million waveforms/s and up to 99 % real-time capture
Industry-leading architecture with 12-bit ADC and 18-bit HD mode
Most-compact 8-channel oscilloscope with MSO, generator and large 11.6" display
Up to 50 000 FFTs/s with independent time and frequency settings
Get big capabilities in a small package. Gain the freedom and versatility your work demands without compromising on results. Enjoy unmatched performance to quickly and easily gain an expert understanding of your device under test.
-

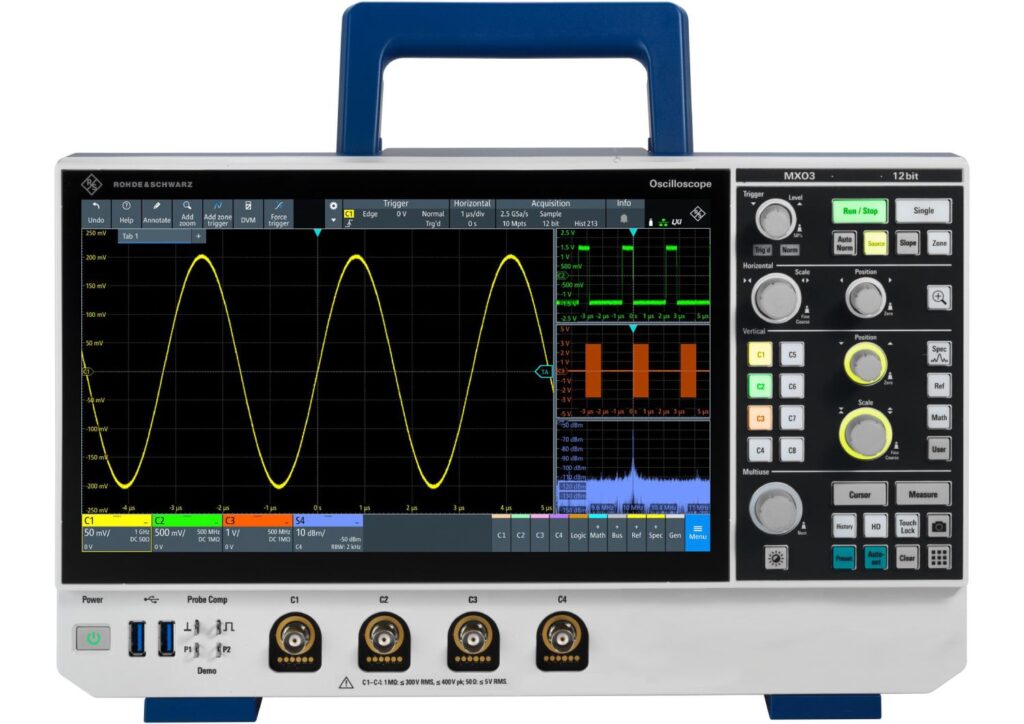

Rohde & Schwarz MXO34-10PK 4 Channel, 1 GHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO34-1PK 4 Channel, 100 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO34-2PK 4 Channel, 200 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO34-3PK 4 Channel, 350 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO34-5PK 4 Channel, 500 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -

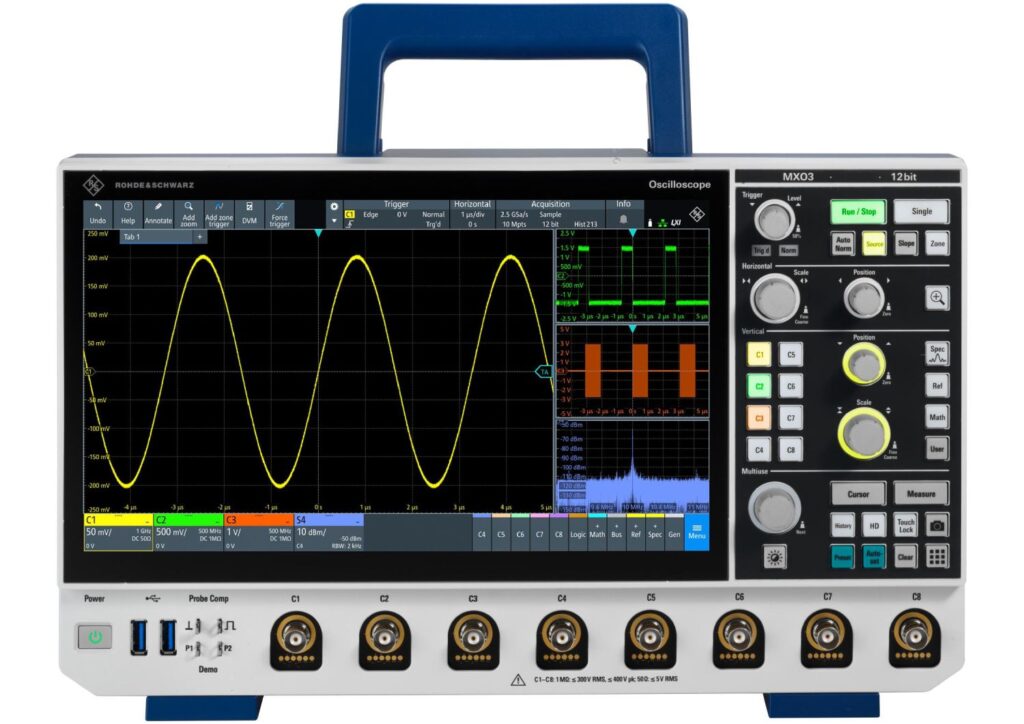

Rohde & Schwarz MXO38-10PK 8 Channel, 1 GHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO38-1PK 8 Channel, 100 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO38-2PK 8 Channel, 200 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO38-3PK 8 Channel, 350 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more -
Rohde & Schwarz MXO38-5PK 8 Channel, 500 MHz, 5 GSa/s, 12-Bit High-Definition Digital Oscilloscope with MXO3-PK1 Application Bundle
.Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Read more
Why Do Engineers Love R&S Scopes?
- A trusted, global, high-quality company with a long-standing commitment to customers and continuous technological innovation
- The newest oscilloscope portfolio from 60 MHz to 16 GHz
- In-house ASICs for the world’s most responsive oscilloscopes
- Frontend technology development for pristine signal integrity
- 18-bit architecture with HD mode for the highest resolution
- Digital triggers for the world’s most sensitive event isolation
- Superior user interface and front panel to streamline workflows
Why The MXO 3?
- Gain the freedom and versatility your work demands without compromising on results. Equipped with next-generation MXO technology, the MXO 3 series delivers fast and precise measurements in a small package
- Fast
- Industry’s fastest update rate of up to 4.5 million acquisitions/s
- The highest real-time signal capture up to 99%
- Fast in both the time and frequency domains
- Precise
- 12-bit ADC at all sample rates, 18-bit in HD mode
- Advanced and flexible digital trigger
- Deep 125 Mpoints standard memory
- Compact
- Save space with all models that fit comfortably on your bench
- See and share easily with the large 11.6″ Full HD display
- Rackmount with 5U height for all models
Fast.
All MXO oscilloscopes incorporate cutting-edge ASIC technology. Get the world’s fastest update rate of up to 4.5 million acquisitions/s, enabled by the Rohde&Schwarz MXO-EP ASIC that processes 400 Gbit/s. This chip also enables hardware-accelerated functions, including math, spectrum, zone triggering and mask testing.

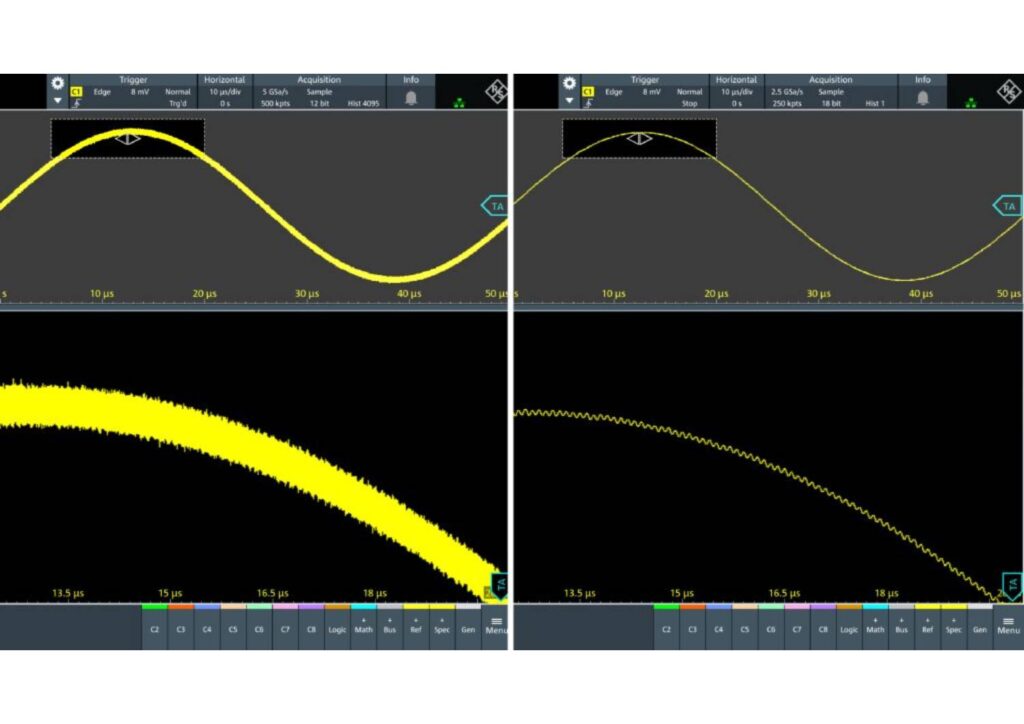

Precise.
The low-noise frontend Rohde&Schwarz ASIC technology, 12-bit vertical resolution in Rohde&Schwarz proprietary ADC technology and 18-bit resolution and digital trigger that is so sensitive it can trigger on the smallest signal details combine to make the most precise oscilloscope in its class. The 125 Mpoints standard memory and up to 500 Mpoints option can capture hundreds of milliseconds while retaining a fast sample rate and full bandwidth.

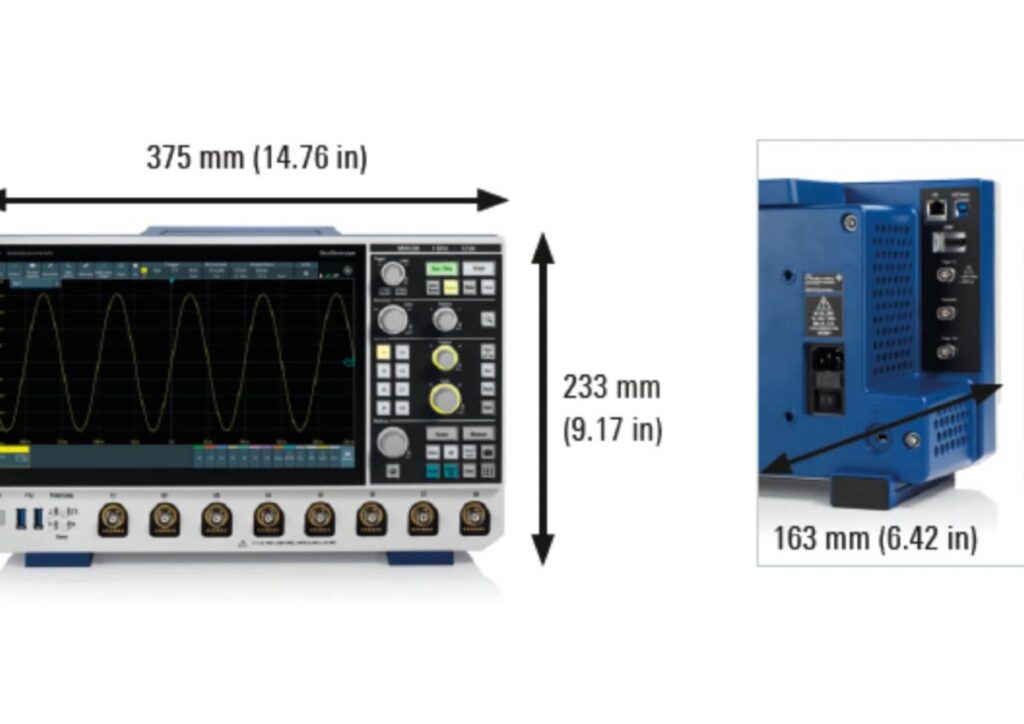

Compact.
The innovative technology in both the 4-channel and 8-channel models comes in a surprisingly small package, even though MXO 3 oscilloscopes still have a large 11.6″ Full HD display. The small footprint and light weight mean the oscilloscope is easy to place on a crowded bench or quickly move to a new measurement location. For rackmounting, it is just 5U high.
| Feature | Condition / Detail | Specification |
|---|---|---|
| Vertical system | ||
| Analogue channels | 4, 8 | |
| Digital channels (opt.) | 16 | |
| Analogue bandwidth (–3 dB) | 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz | |
| Rise time | at 1 GHz bandwidth | < 350 ps |
| Input impedance | 50 Ω ± 1.5 %, 1 MΩ ± 1 % || 12 pF (meas.) | |
| Input sensitivity | at 50 Ω | 1 mV/div to 1 V/div, support entire analogue bandwidth |
| at 1 MΩ | 1 mV/div to 10 V/div, support entire analogue bandwidth | |
| Vertical resolution | 12-bit ADC, up to 18-bit with HD mode (high definition) | |
| DC gain accuracy | input sensitivity > 5 mV/div input sensitivity ≤ 5 mV/div to ≥ 1 mV/div | ±1 % full scale ±1.5 % full scale |
| Channel-to-channel isolation | > 60 dB (1:1000) | |
| Acquisition system | ||
| Sampling rate | analogue channels (real-time) | max. 5 Gsample/s max. 2.5 Gsample all channels simultaneously |
| analogue channels (interpolated) | max. 5 Tsample/s | |
| digital channels | max. 5 Gsample/s | |
| Acquisition memory | Standard | 125 Mpoints |
| Optional R&S®MXO3-B105 memory option | max. 500 Mpoints per channel | |
| History segments | 10k segments up to 1 million segments with option B105 | |
| Max. acquisition rate | > 4 500 000 waveforms/s | |
| Acquisition modes | sample, peak detect, average, envelope | |
| Interpolation modes | linear, sin(x)/x, sample & hold | |
| Horizontal system | ||
| Timebase range | Selectable between 200 ps/div and 10 000 s/div | |
| Trigger system | ||
| Standard trigger types | Edge, glitch, width, runt, window, timeout, interval, slew rate, setup and hold, pattern, state trigger | |
| Advanced trigger modes | Zone trigger, A/B/R, serial bus, trigger in and out | |
| Trigger sensitivity | 0.0001 div, from DC to instrument bandwidth for all vertical scales | |
| Analysis and measurement | ||
| Automatic measurements | >40 | |
| Cursor measurements | 4 | |
| Waveform mathematics | Up to 8 equations math on math (add, subtract, multiply, divide, absolute value, square, square root, integrate, differentiate, log10, loge, log2, reciprocal, invert, low pass, high pass, rescale (a*x+b)) | |
| General data | ||
| Dimensions | W × H × D | 375 mm × 233 mm × 163 mm (14.76 in × 9.17 in × 6.42 in) |
| Weight | without options, nominal | 4.0 kg (8.82 lb) |
| Rackmount height | 5 HU | |
| I/O Interfaces | Front | 2 × USB 3.1 Gen 1 ports, type A plug |
| Rear | 1 × USB 3.1 Gen 1 port, type B plug 1 × HDMI output 1 × RJ-45 connector, supports 10/100/1000BASE-T | |
| Display | 11.6″ LC TFT colour display with capacitive touchscreen, resolution 1920 × 1080 pixels (Full HD) | |
