Introducing the Rigol DP5000 Pro Series Function Generators!

Posted on: October 6th, 2025 by Kane Brady
Slide
DP5000 Pro Series
Function/Arbitrary Waveform Generators

• 2/4/8-channel output, isolated from the ground
• Max. sample rate: 2.5 GSa/s
• Max. output frequency: 500 MHz
• Vertical resolution: 16 bits
• Max. Waveform Length 64 Mpts/CH (128 Mpts/CH optional)
• 10.1” HD touch screen

Unlock New Possibilities with DG5000 Pro

Building on the success of last year’s launch, the DG5000 Pro Series adds even more power and flexibility to RIGOL’s high-performance waveform generation lineup. With up to 500 MHz bandwidth, 2.5 GSa/s sampling, and 16-bit vertical resolution, it delivers clean, accurate signals across demanding R&D, validation, and production environments.

The compact platform integrates up to 8 independent output channels with picosecond-class synchronization and isolated outputs — reducing rack space and simplifying complex multi-node test benches.

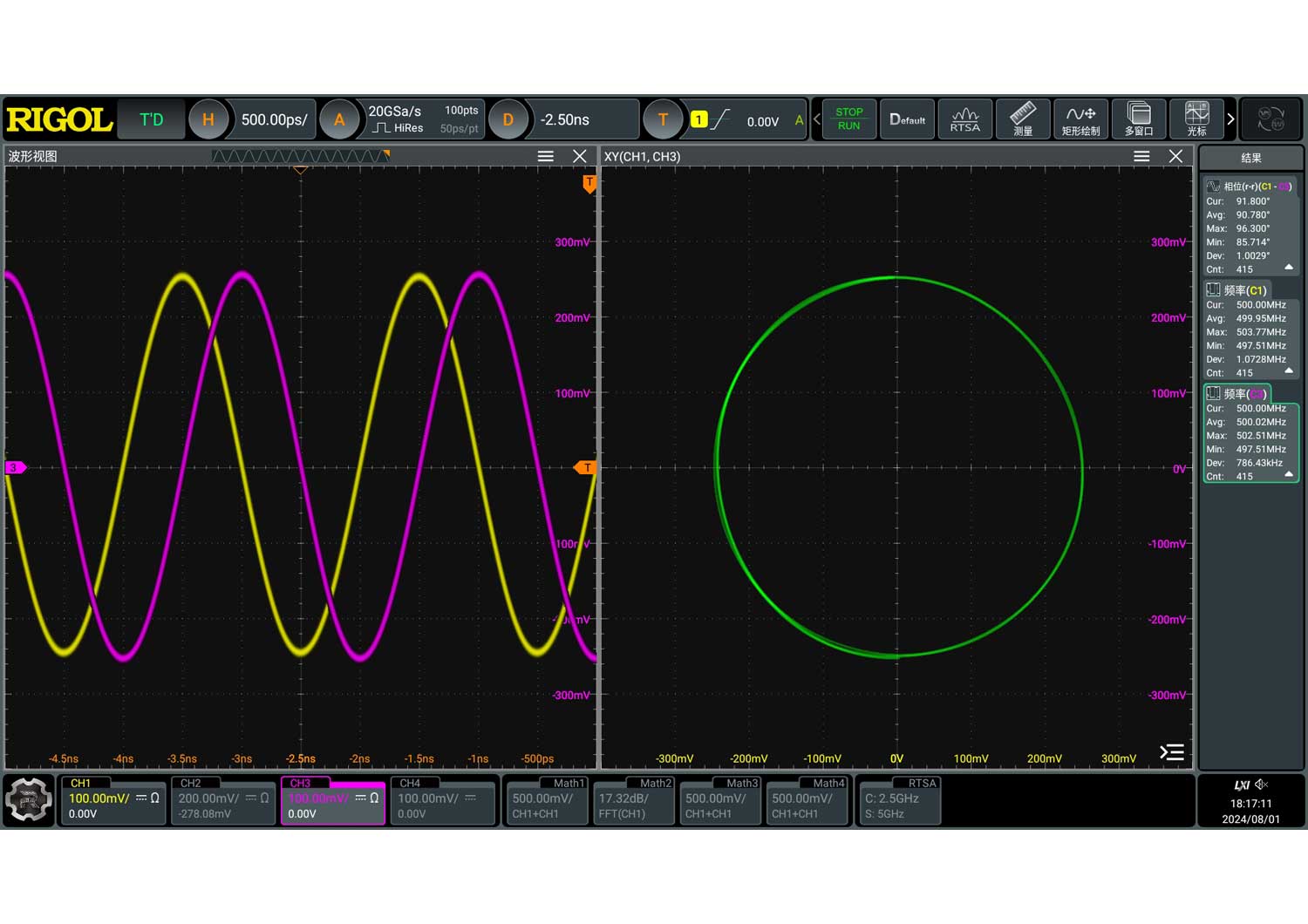

High Fidelity & Low Jitter

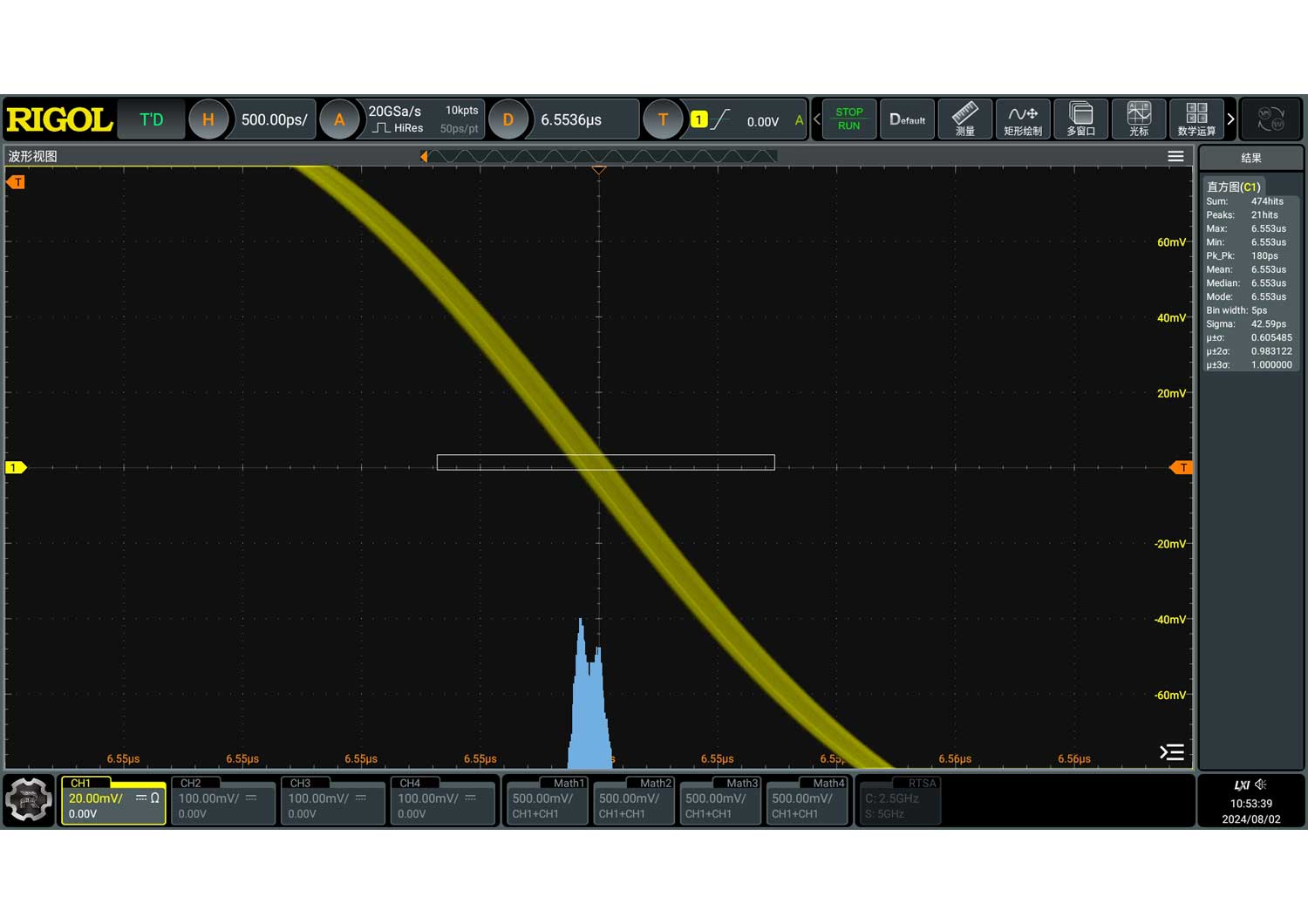

Powered by RIGOL’s proprietary SiFi II technology, DG5000 Pro achieves jitter as low as 200 ps. Engineers can reliably stress timing margins, exercise clock/data recovery, and validate high-speed interfaces with confidence.

DG5000 Pro Signal Fidelity with SiFi II
DG5000 Pro Front Panel & Display

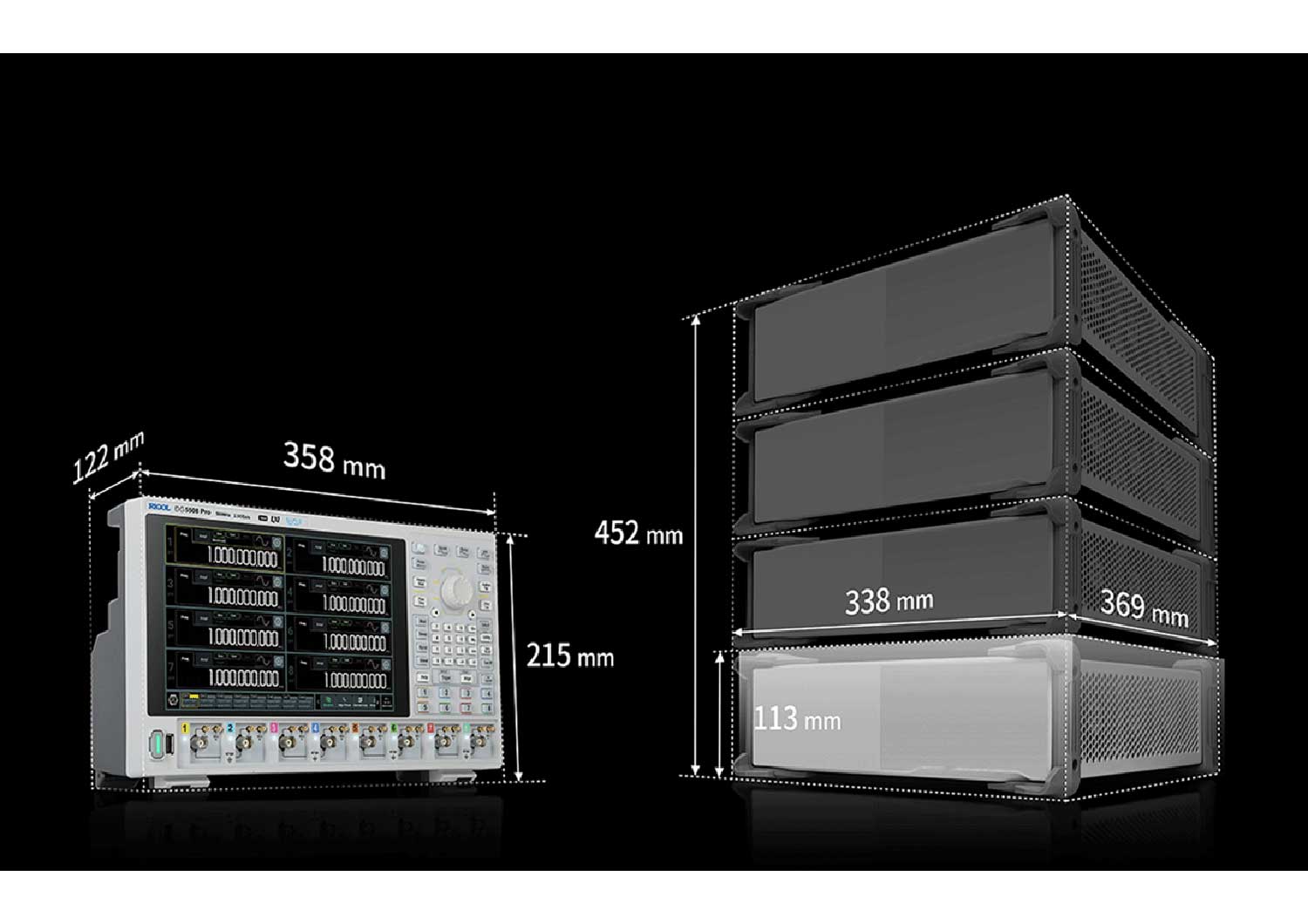

High-Density Multi-Channel Design

Scale from 2 to 8 high-performance channels in a single chassis — cutting system space by up to two-thirds versus traditional multi-box setups. Each channel is independently configurable for amplitude, offset, waveform type, and sequencing.

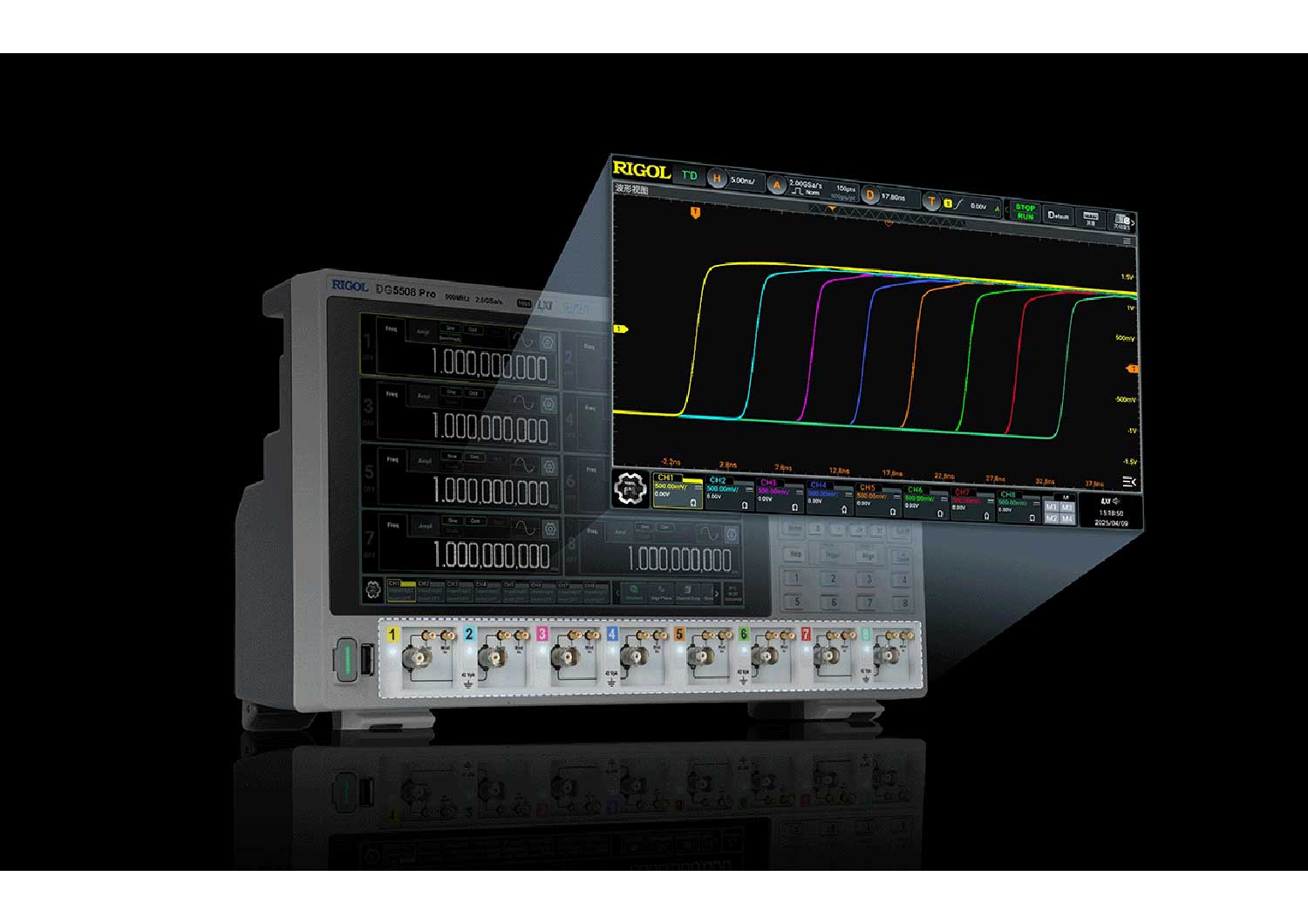

Ultra-Precise Synchronization

  • Channel-to-channel skew: under 500 ps for coherent phase and timing.
  • Adjustable output delay: within ±200 ns for fine alignment and skew compensation.
  • Picosecond-level coordination enables multi-domain experiments (clocking, triggering, MIMO/beamforming, and more).
DG5000 Pro Multi-Channel Synchronization
DG5000 Pro Timing Alignment & Delay Control

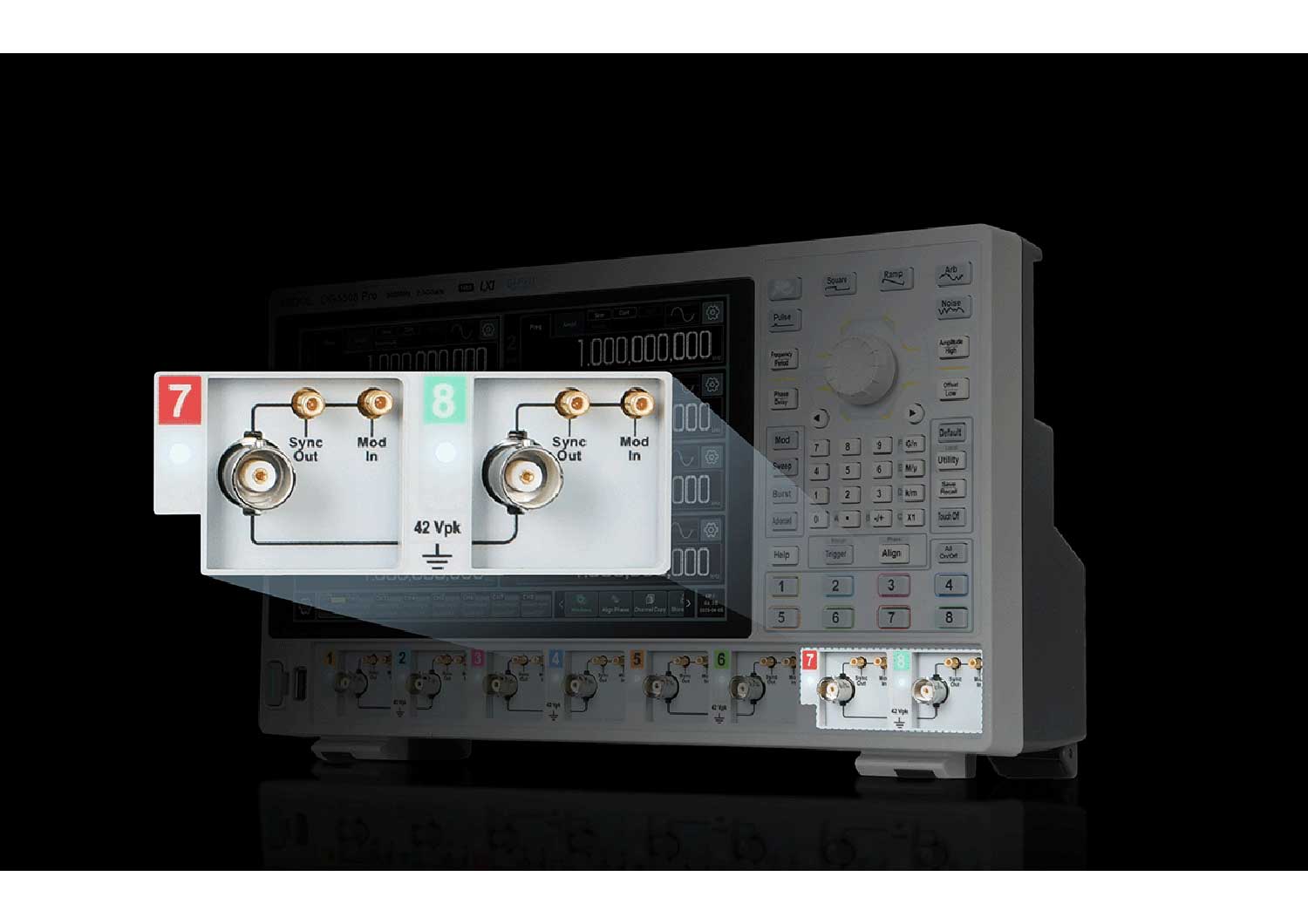

Isolated Channel Grouping

Four pairs of isolated channel groups reduce ground loops and crosstalk, enabling differential signaling and independent reference domains. This isolation is especially valuable in power electronics, mixed-signal verification, and sensor/actuator emulation.

Versatile Advanced Functions

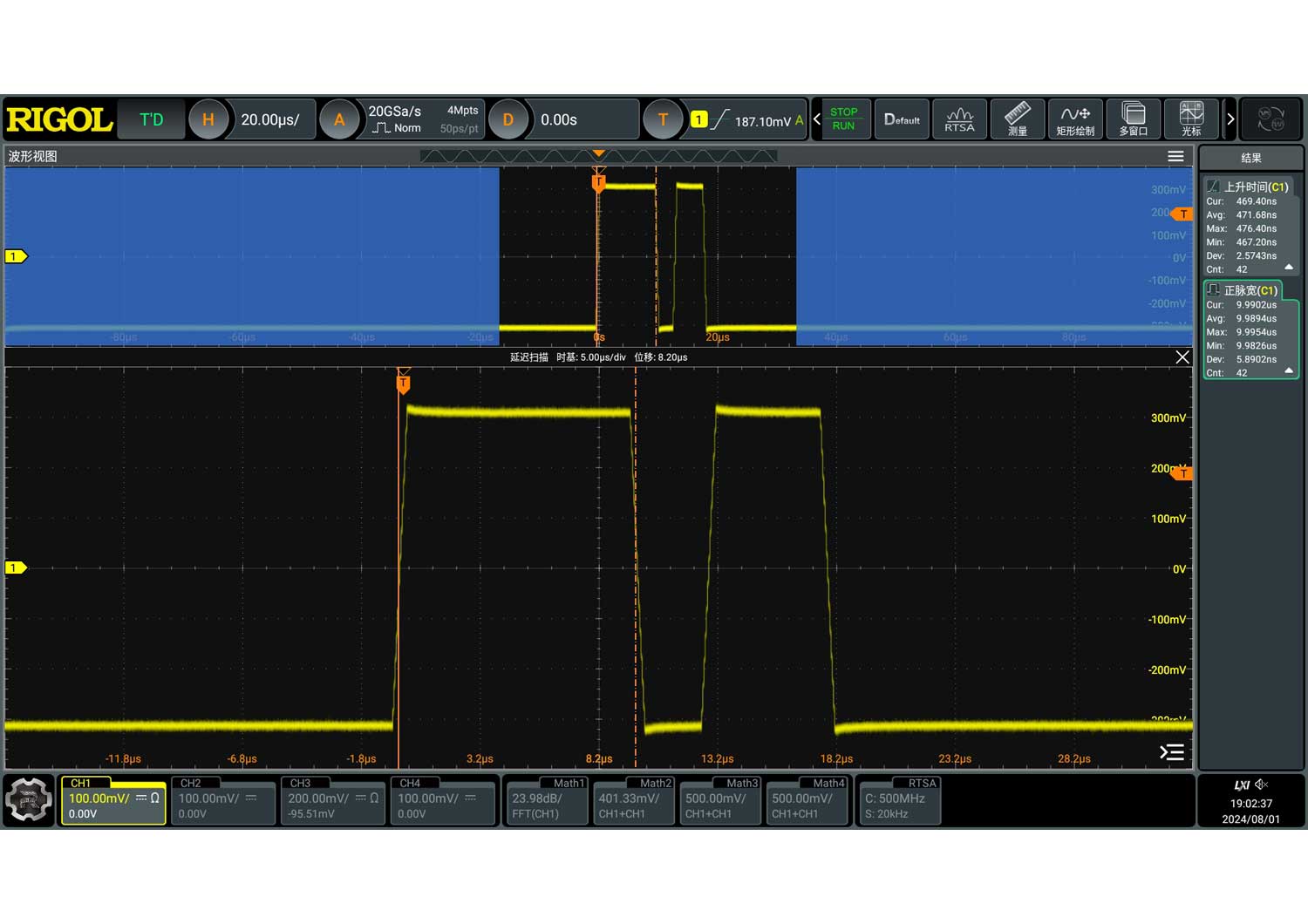

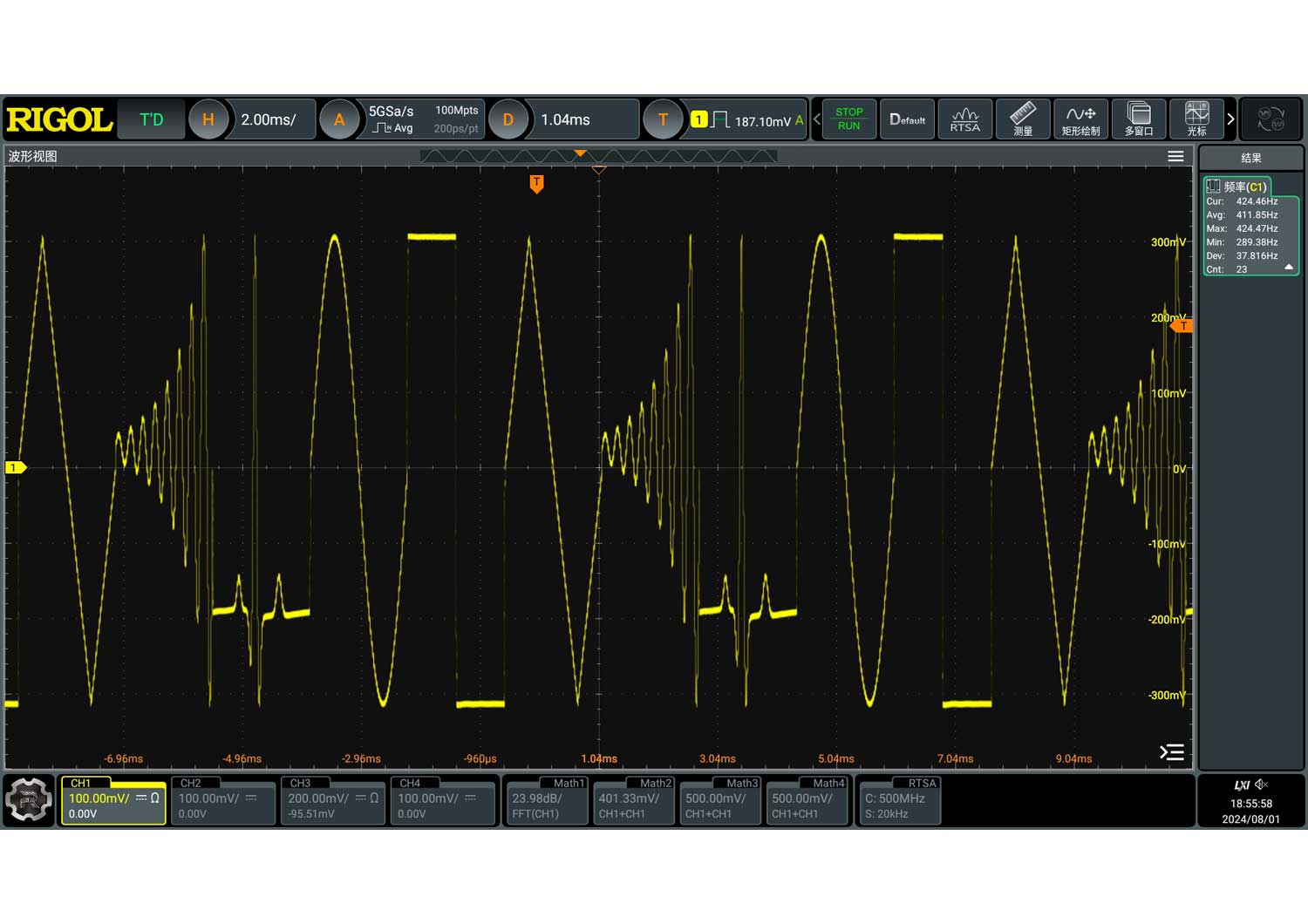

  • Multi-pulse output and arbitrary waveform sequencing for complex pattern playback.

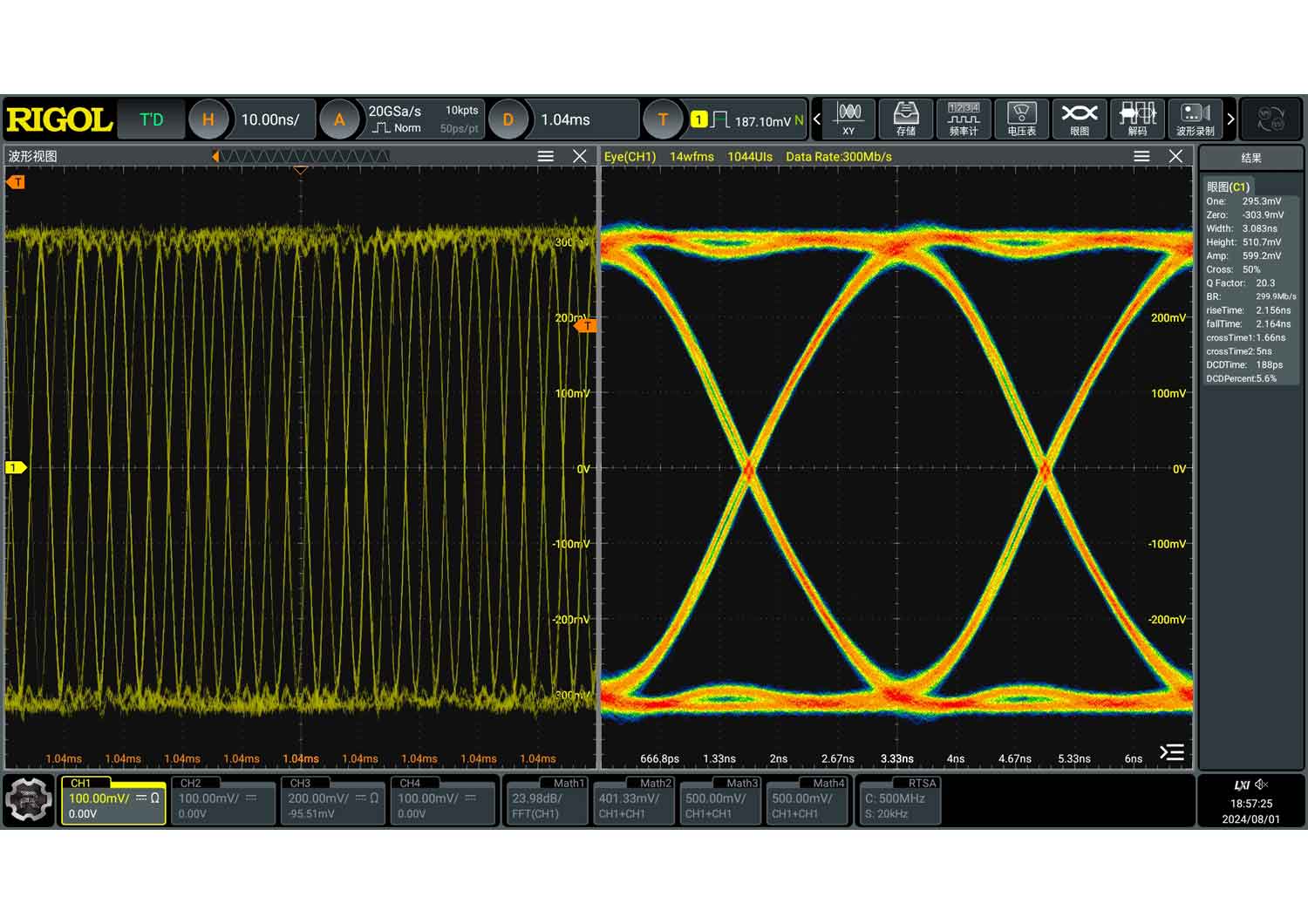

  • PRBS and custom coding support for link stress testing and BER investigations.
  • Ideal for power semiconductor testing, automated ATE systems, and high-speed signal analysis.
DG5000 Pro Multi-Channel Synchronization
DG5000 Pro Timing Alignment & Delay Control
DG5000 Pro Timing Alignment & Delay Control
DG5000 Pro Timing Alignment & Delay Control

Key Specifications at a Glance

  • Bandwidth up to 500 MHz; sampling rate 2.5 GSa/s
  • 16-bit vertical resolution
  • Up to 8 independent output channels in one chassis
  • SiFi II technology with jitter as low as 200 ps
  • Channel-to-channel skew <500 ps; output delay adjust ±200 ns
  • Isolated channel grouping for interference-free outputs

Ask us about configurations, availability, and demo units. We’d be happy to help!
