Rigol DNA6000-R Series Vector Network Analysers

Slide

DNA6000-R   Series
Vector Network Analysers

5 kHz to 26.5 GHz
Frequency Range

1U Rack Mount
Form Factor

4 / 2
N Ports

127 dB
Dynamic Range

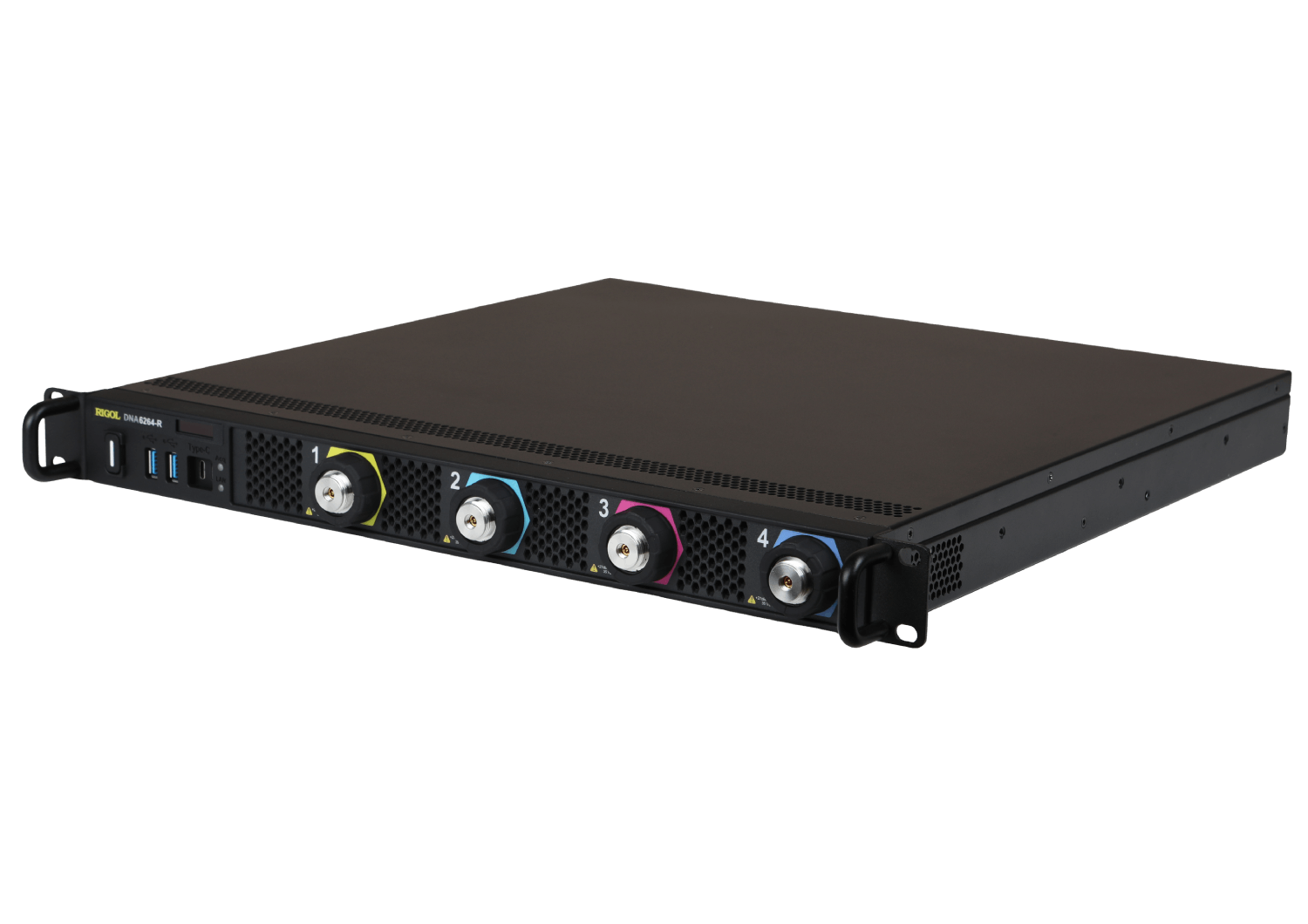

Image of Dna6000 r left transp telonicuk

The DNA6000-R series vector network analyser provides various calibration methods such as frequency response, single-port, response isolation, enhanced response, full dual-port, and electronic calibration. It supports various display formats such as Log Mag, Lin Mag, SWR, Phase, Group Delay, Smith Chart, and Polar Chart. Through connectivity with the instrument under test via standard interfaces such as USB, LAN, and HDMI, this series can accurately measure the amp/freq characteristics, phase/freq characteristics, and group delay characteristics of the microwave network.

While maintaining high-performance characteristics in terms of its specifications, appearance, display effects, and software interface, the DNA6000-R series features a compact size, light weight, and low noise, offering you a better user experience. This series of products can be widely used in the electronics, communication, and microwave fields. It is a commonly used test instrument in R&D and batch production for industry and universities.

SKUImageFrequency RangeChannelsDynamic RangeNoiseOutput RangesStockPrice
DNA6082-RImage of Dna6082 r telonicuk8.5 GHz2127 dB0.003 dB10 dBmOn Backorder£8,173.00
DNA6084-RImage of Dna6084 r telonicuk8.5 GHz4127 dB0.003 dB10 dBmOn Backorder£13,390.00
DNA6142-RImage of Dna6142 r telonicuk14 GHz2127 dB0.003 dB10 dBmOn Backorder£12,347.00
DNA6144-RImage of Dna6144 r telonicuk14 GHz4127 dB0.003 dB10 dBmOn Backorder£18,434.00
DNA6202-RImage of Dna6202 r telonicuk20 GHz2127 dB0.003 dB10 dBmOn Backorder£16,434.00
DNA6204-RImage of Dna6204 r telonicuk20 GHz4127 dB0.003 dB10 dBmOn Backorder£24,608.00
DNA6262-RImage of Dna6262 r telonicuk26.5 GHz2127 dB0.003 dB10 dBmOn Backorder£20,608.00
DNA6264-RImage of Dna6264 r telonicuk26.5 GHz4127 dB0.003 dB10 dBmOn Backorder£30,869.00

Showing all 8 results
